2013-19 Polaris Ranger XP 900 and XP 1000 High Lifter 15% Dual Idler 4 Inch Portal Gear Lift
SSL Secure and
Privacy Guaranteed
SSL Secured
Expert Support
Product Description
Conquer any off-road challenge with the High Lifter 15% Dual Idler 4 Inch Portal Gear Lift for your Polaris Ranger XP 900 or Ranger XP 1000. Crafted with the strongest gear boxes on the market through a formidable forging process, these gear lifts outshine their cast and billet aluminum counterparts. No need for worries when it comes to leaks, as our gear lifts feature high density Kevlar fiber gaskets that require no additional sealant. The option to install an easy-to-use venting kit further enhances performance. With the strongest backing plates available and welded gusset brackets, these gear lifts guarantee durability, even in the most demanding terrains. Engine braking is greatly enhanced, extending brake life by 15% - giving you the confidence to conquer any adventure that comes your way!
Shared Shipping Program: You pay $25.00 shipping/handling and Side By Side Stuff will pay the rest.
Shared Shipping Program: You pay $25.00 shipping/handling and Side By Side Stuff will pay the rest.
Fitment
- 2019 Polaris Ranger XP 900
- 2018 Polaris Ranger XP 900 -
- 2018 Polaris Ranger XP 1000 EPS High Lifter Edition
- 2017 Polaris Ranger XP 1000 -
- 2017 Polaris Ranger XP 1000 EPS High Lifter Edition
- 2017 Polaris Ranger XP 900 -
- 2017 Polaris Ranger XP 900 EPS
- 2017 Polaris Ranger XP 1000 EPS Northstar HVAC Edition
- 2016 Polaris Ranger XP 900 -
- 2016 Polaris Ranger XP 900 EPS High Lifter Edition
- 2015 Polaris Ranger XP 900 -
- 2015 Polaris Ranger XP 900 EPS
- 2014 Polaris Ranger XP 900 -
- 2013 Polaris Ranger XP 900 -
Features

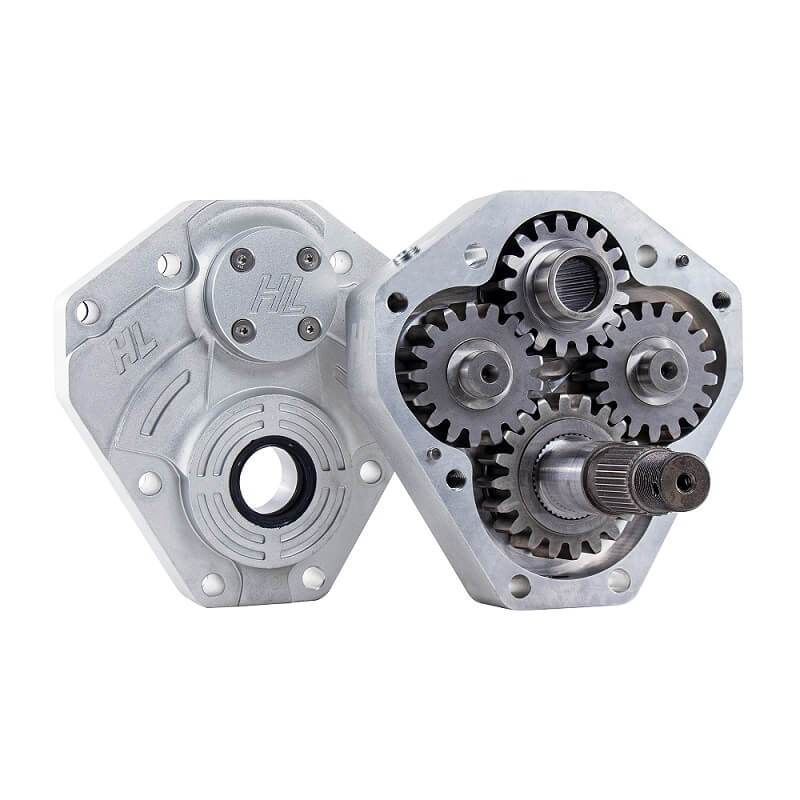

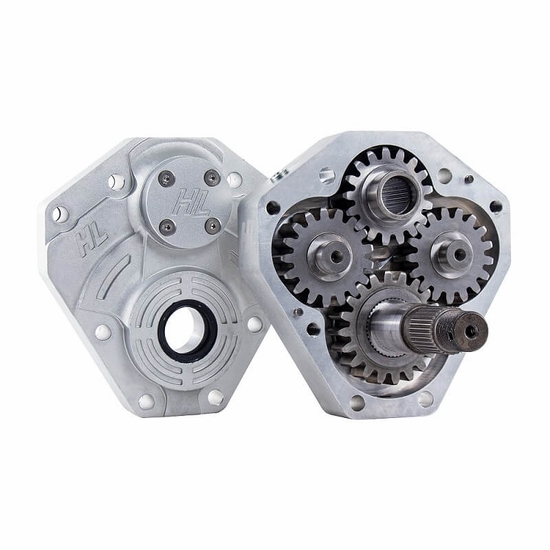

- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
- More reliable torque transfer
- 15% gearing extends brake life by needing brakes less often due to greatly improved engine braking

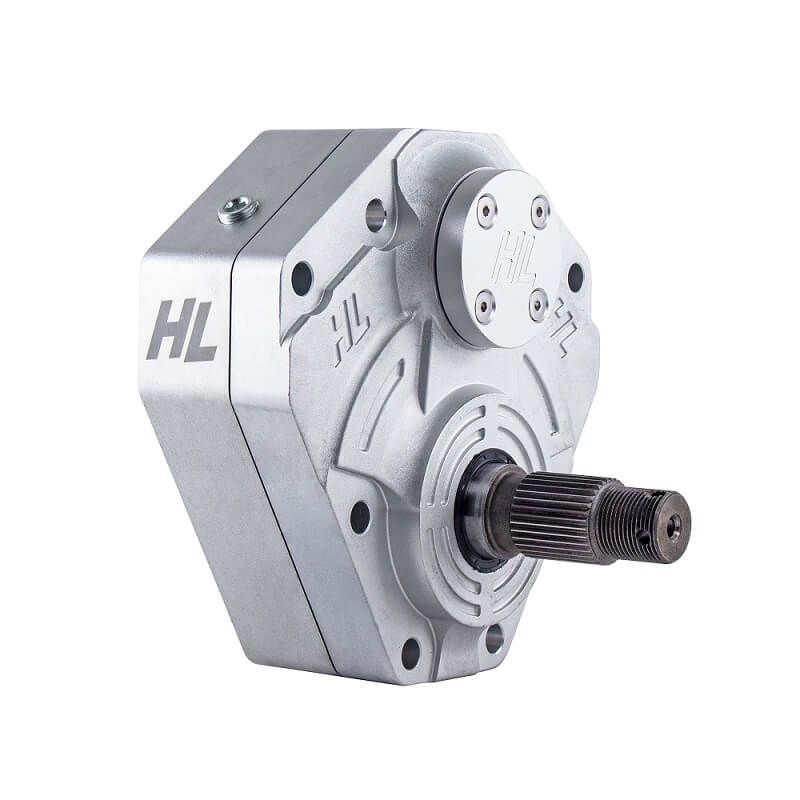

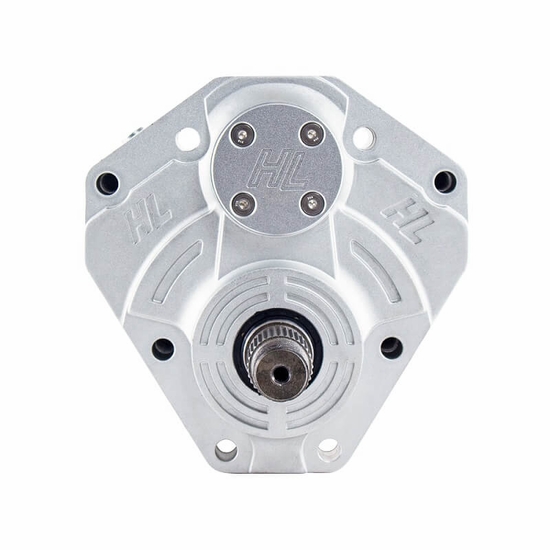

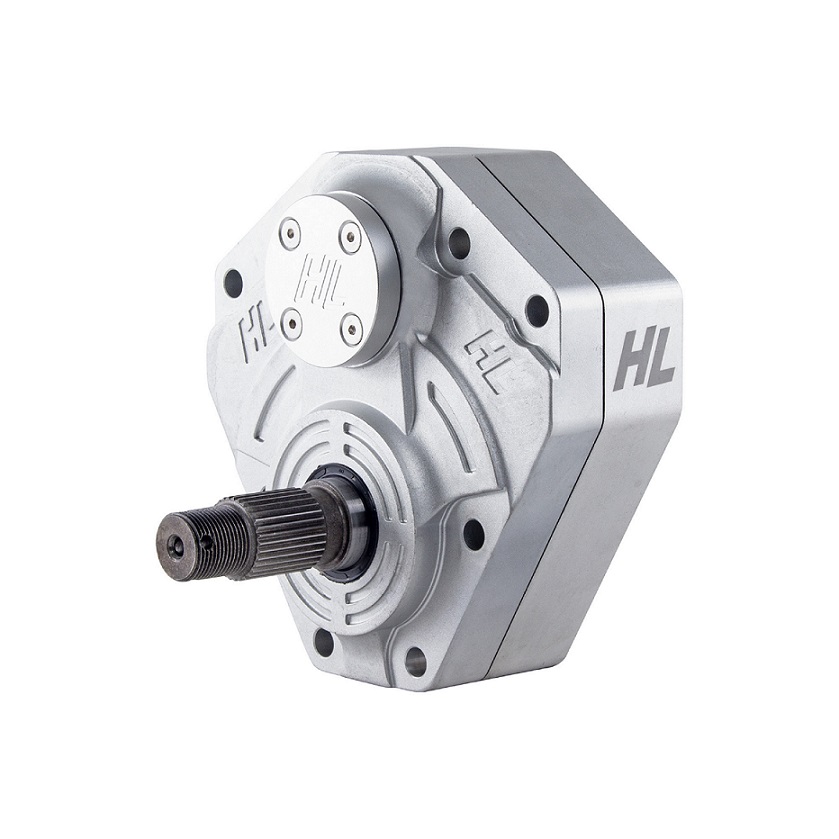

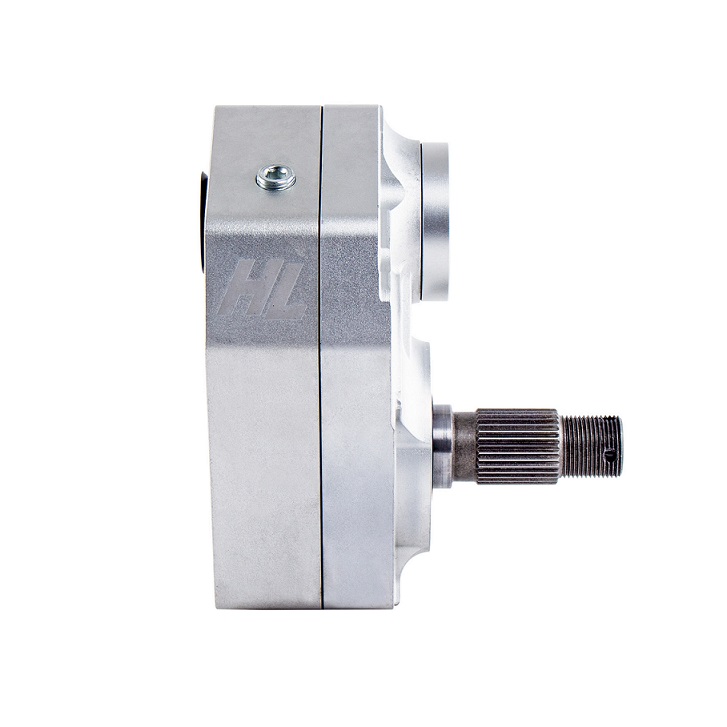

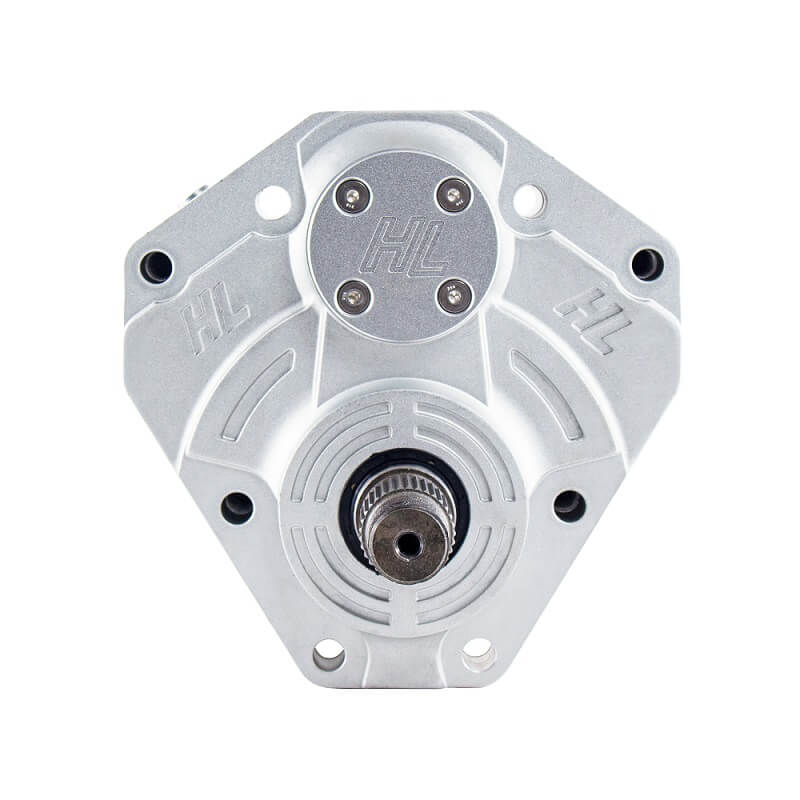

Gear Box:
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Extremely robust and give you more worry-free miles
- Offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket and Seal:
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Creep resistant plus oil and coolant resistant

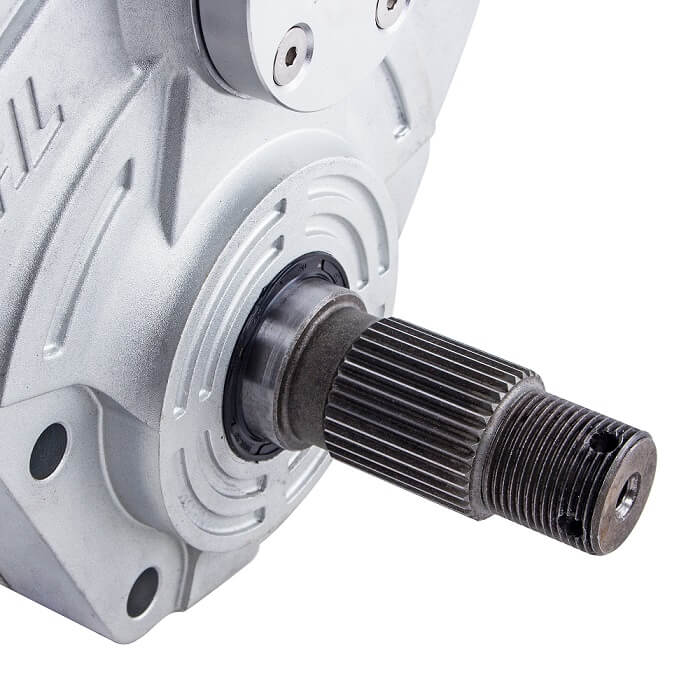

- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

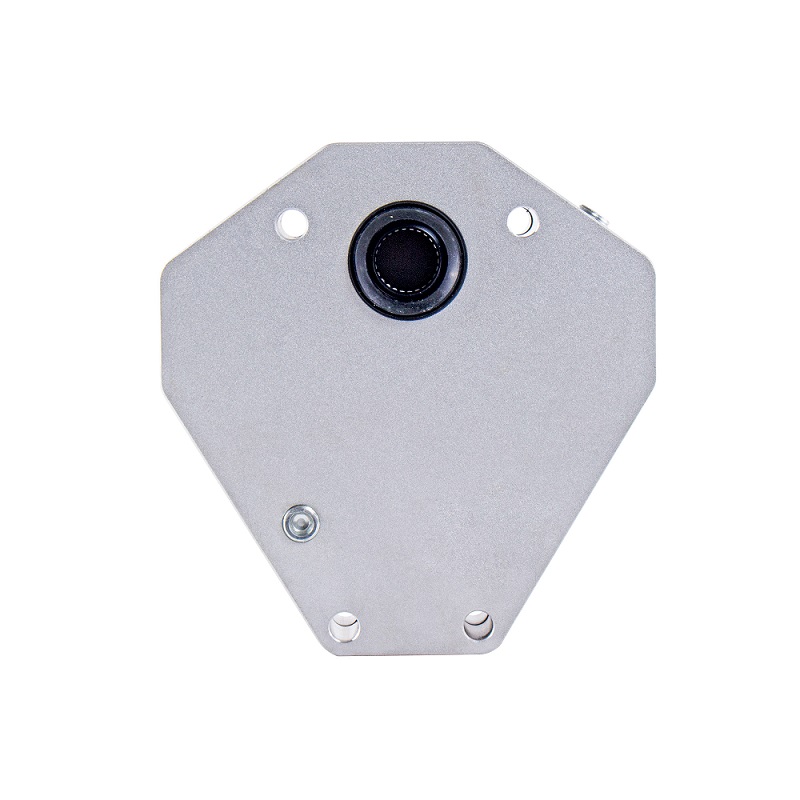

Backing Plate:
- Strongest backing plates on the market
- 5/16” steel plate with bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with most control arms that are built to factory hub specifications
Rotor:
- Precision ground stainless steel rotors
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear:
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
Videos
Important Info
- Ships UPS ground in multiple boxes.
- Requires 14 inch or larger wheels.
- 14 inch factory wheels require 1 inch wheel spacers.
- 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.
