Product Description
If you use your side by side to help with all the heavy lifting around the house, then you probably invested in a Kubota RTV. Now you can make that Kubota RTV 400, or 500 even better, and allow you to use it year-round. How you ask? With the Camso UTV 4S1 Track System, the leader in Kubota tracks. Why are Kubota tracks better than tires in a lot of cases? Well, if you're looking for dependable traction in all conditions, then you want tracks.

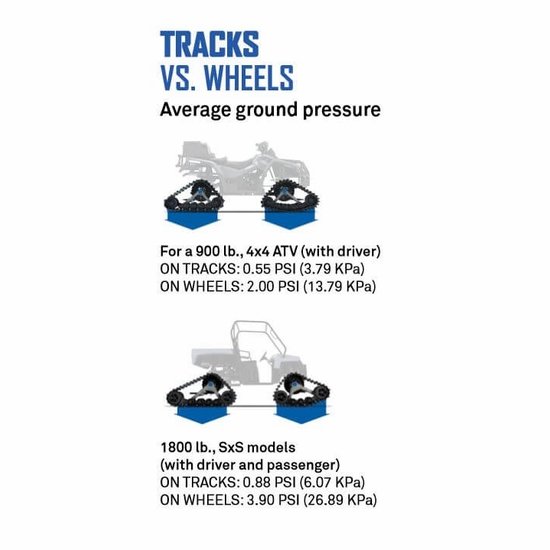

Whether the ground is muddy, snowy, rocky or just uneven, tracks will get you where you need to go easier than traditional tires. While tires sink in the mud and have trouble getting traction on uneven ground, tracks have a wider and larger wheelbase, allowing them to disperse the weight more evenly, preventing your machine from sinking in the mud. Uneven ground and rocky terrain can be navigated easier since tracks have a larger surface area to find traction on.
Also, when your Kubota RTV is loaded to the max, don't worry about getting a flat tire due to a puncture with these Flextrack rubber tracks. The Kubota track system might lift your side by side up a few inches, but will lower the center of gravity, making your UTV less likely to tip over. With the ability to absorb the vibrations and bumps, you can have a smoother ride.
Whether the ground is muddy, snowy, rocky or just uneven, tracks will get you where you need to go easier than traditional tires. While tires sink in the mud and have trouble getting traction on uneven ground, tracks have a wider and larger wheelbase, allowing them to disperse the weight more evenly, preventing your machine from sinking in the mud. Uneven ground and rocky terrain can be navigated easier since tracks have a larger surface area to find traction on.
Also, when your Kubota RTV is loaded to the max, don't worry about getting a flat tire due to a puncture with these Flextrack rubber tracks. The Kubota track system might lift your side by side up a few inches, but will lower the center of gravity, making your UTV less likely to tip over. With the ability to absorb the vibrations and bumps, you can have a smoother ride.
- Fitment
- Features
- Videos
- Important Info
- Reviews
- Contact an Expert
Fitment
- 2020 Kubota RTV500 Realtree
- 2020 Kubota RTV400Ci Realtree
- 2020 Kubota RTV 500 -
- 2020 Kubota RTV 400Ci -
- 2019 Kubota RTV500 Realtree
- 2019 Kubota RTV400Ci Realtree
- 2019 Kubota RTV 500 -
- 2019 Kubota RTV 400Ci -
- 2018 Kubota RTV500 Realtree
- 2018 Kubota RTV400Ci Realtree
- 2018 Kubota RTV 500 -
- 2018 Kubota RTV 400Ci -
- 2017 Kubota RTV500 Realtree
- 2017 Kubota RTV400Ci Realtree
- 2017 Kubota RTV 500 -
- 2017 Kubota RTV 400Ci -
- 2016 Kubota RTV500 Realtree
- 2016 Kubota RTV400Ci Realtree
- 2016 Kubota RTV 500 -
- 2016 Kubota RTV 400Ci -
- 2015 Kubota RTV500 Realtree
- 2015 Kubota RTV400Ci Realtree
- 2015 Kubota RTV 500 -
- 2015 Kubota RTV 400Ci -
- 2014 Kubota RTV500 Realtree
- 2014 Kubota RTV500 Orange
- 2014 Kubota RTV400Ci Realtree
- 2014 Kubota RTV 400Ci -
- 2013 Kubota RTV 500 -
- 2013 Kubota RTV 400Ci -
- 2012 Kubota RTV 500 -
- 2011 Kubota RTV 500 -
- 2010 Kubota RTV 500 -
- 2009 Kubota RTV 500 -
Features
- Ground coverage: Approximately 2520 sq. in.
- Average ground clearance: Increased by 5 in vs tires
- Climb 20 degree hills
- Tested in deep snow
- Haul up to 1000 lb of supplies
- Tow your 2500 lb shack at speed up to 25 km/h across ice and snow

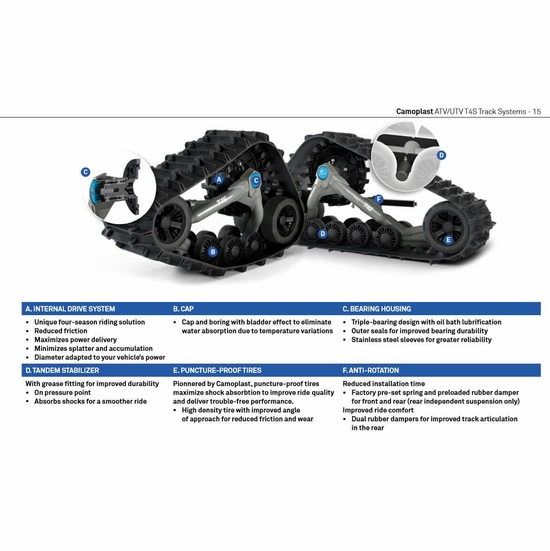

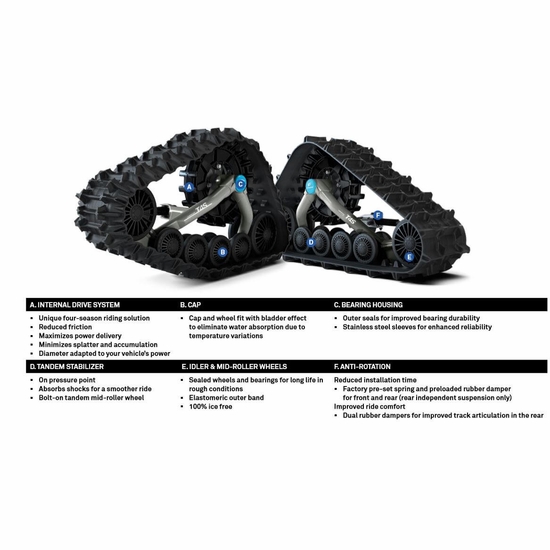

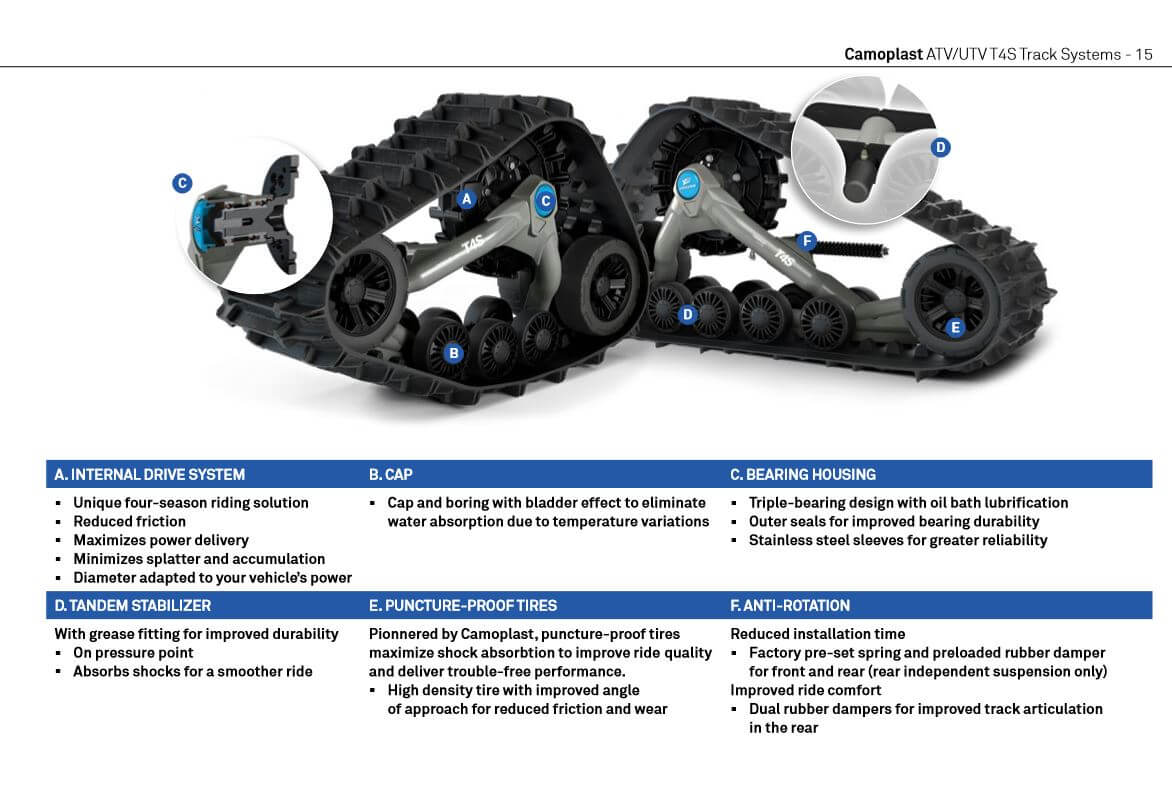

- Foam tires with adjusted shape on idler wheels cushions the ride
- Rubber mounted shafts on tandem stabilizer and wheels absorbs shocks for a more stable ride
- Flex-Track design offers smoother rides than a flat track
- Large contact patch eliminates rebounding and improves vehicle lateral stability when sidehilling
- 1.125-inch lug height enhances traction and control by reducing track ratio
- Solid steel frame sheds snow, mud and debris
- High density tires adjusted shape reduces friction and wear
- Wheel seal design reduces wear and prevents water absorption
- Triple hub bearing design oil bath lubrication and stainless sleeves increase lifespan and reduce maintenance
- Adapted sprocket size optimizes gear ratio for more efficient power transfer
- Front mounted tracks with Flex-Track technology with slight inward curve offers more stable handling
- System design optimizes steering stability to reduce effort
- 2 year limited warranty that covers manufacturing defects related to materials and workmanship

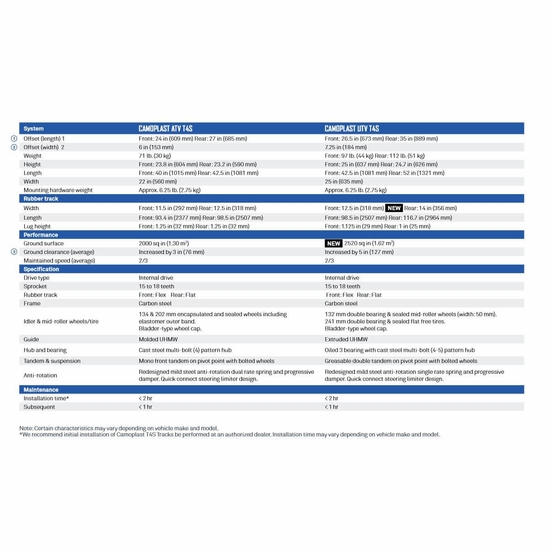

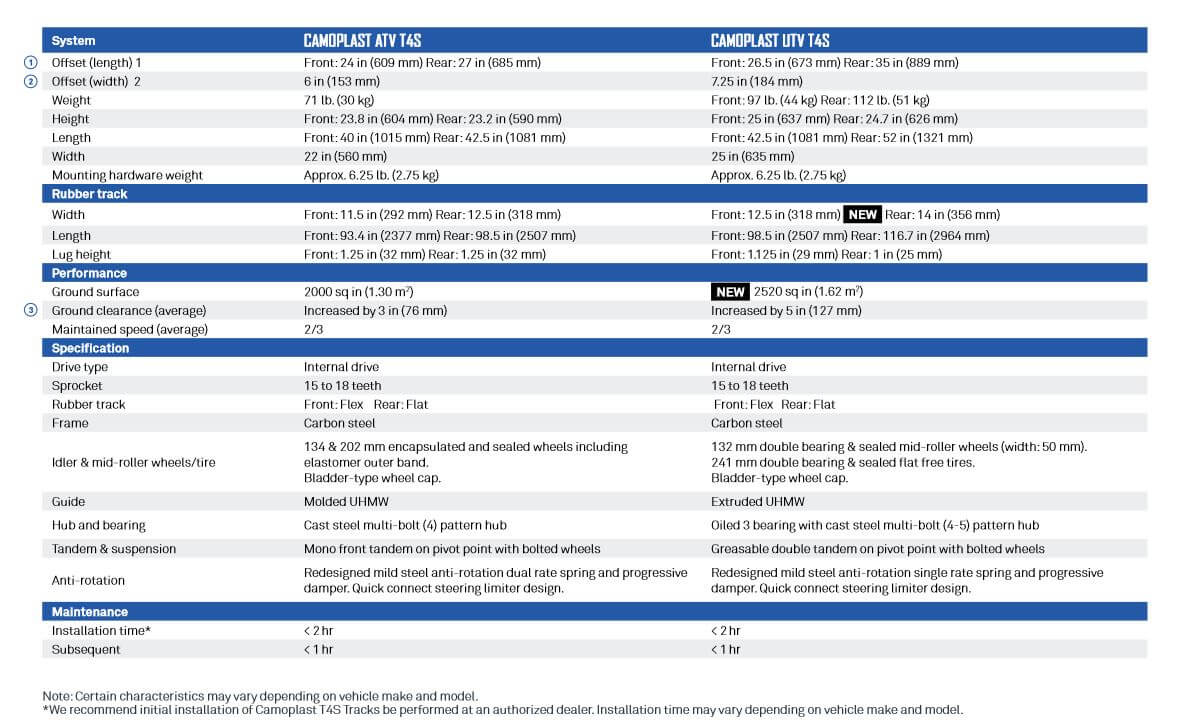

Technical Specs:
- Drive type: Internal drive
- Sprocket: 15 to 18 teeth
- Frame: Carbon steel
- Redesigned mild steel anti-rotation single rate spring and progressive damper
- Quick connect steering limiter design
- Weight: Front - 103 lbs; Rear - 120 lbs
- Oiled 3-bearing with forged steel multi-bolt (4-5) pattern hub
- 5.2 in double-bearing mid-roller wheels (1.97 in width)
- 9.49 in double-bearing flat-free tires
- Bladder type wheel cap and face seal

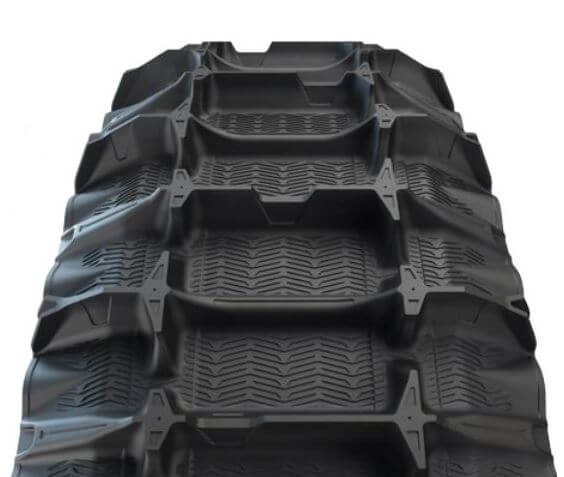

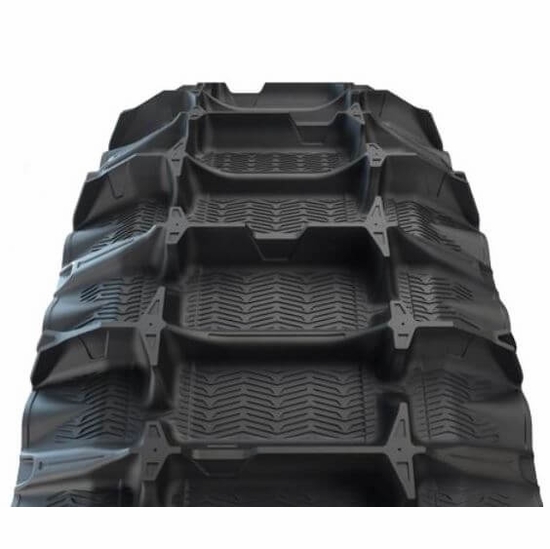

- Rubber Track Design: Front - Flex; Rear - Flat
- Track length: Front - 98.5 in; Rear - 116.7 in
- Track lug height: 1.125 in
- Track width: Front - 12.5 in; Rear - 14 in
Overall Dimensions:
- System length: F: 42.5 in; R: 52 in
- Offset length: F: 26.5 in; R: 35 in
- System width: F: 12.5 in; R: 14 in
- Offset width: 7.25 in
- Ground clearance: F: 16 3/8 in; R: 16 1/2 in
- System height: F: 25 in; R: 24.7 in
Videos
Important Info
- Shared Shipping Program: You pay You pay $450.00 shipping/handling and Side By Side Stuff will pay the rest!
- These track systems can only be shipped to a business / commercial address. It will not ship to a residential address.
- This product is only offered to buyers in the U.S.
- Minor modification and light interference are possible on any model.
- These tracks require a permanent vehicle modification.
- Designed to work with factory suspension.
