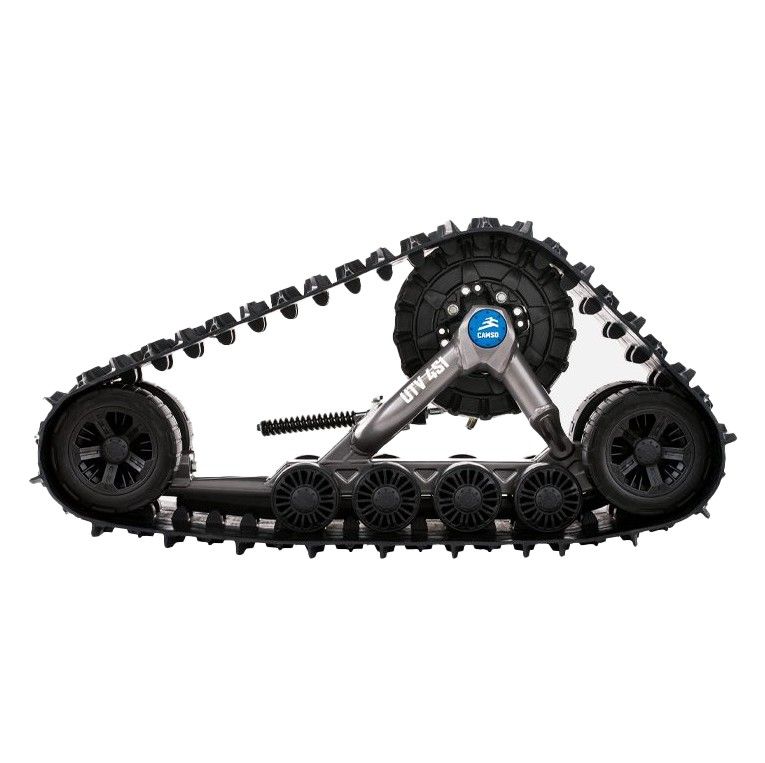

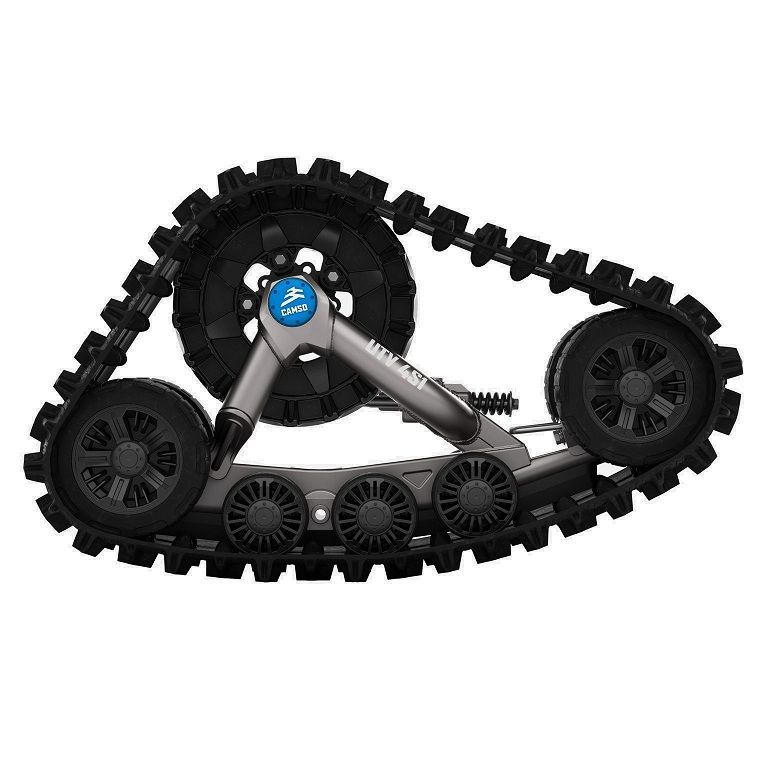

Camso UTV 4S1 Track System - Kawasaki Teryx 750
Camso UTV 4S1 Track System - Kawasaki Teryx 750 - alt image 0
Camso UTV 4S1 Track System - Kawasaki Teryx 750 - alt image 1
Camso UTV 4S1 Track System - Kawasaki Teryx 750 - alt image 2
Camso UTV 4S1 Track System - Kawasaki Teryx 750
Camso UTV 4S1 Track System - Kawasaki Teryx 750
Camso UTV 4S1 Track System - Kawasaki Teryx 750
Camso UTV 4S1 Track System - Kawasaki Teryx 750

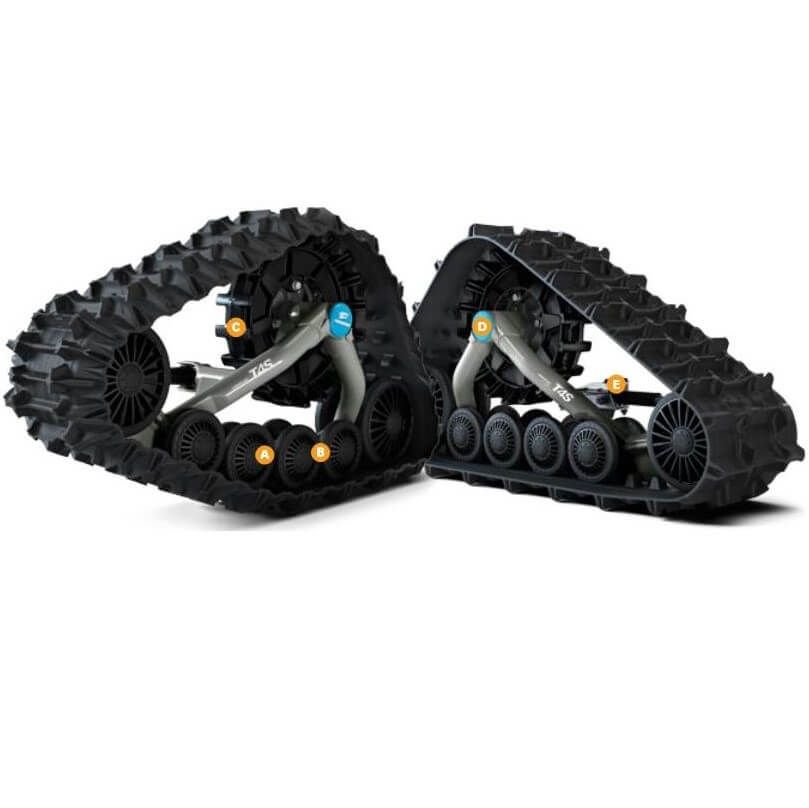

Kawasaki Teryx 750 4S1 Track System

Ships within 2-3 business days *SHARED SHIPPING*
Located outside the US? Call us for a shipping quote.
Item #: 82-10140
Mfg Part #: 6522-04-0080
Brand: Camso
$6,599.00
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

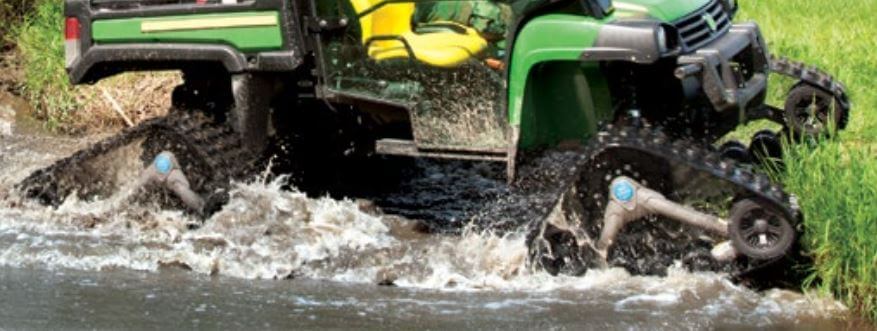

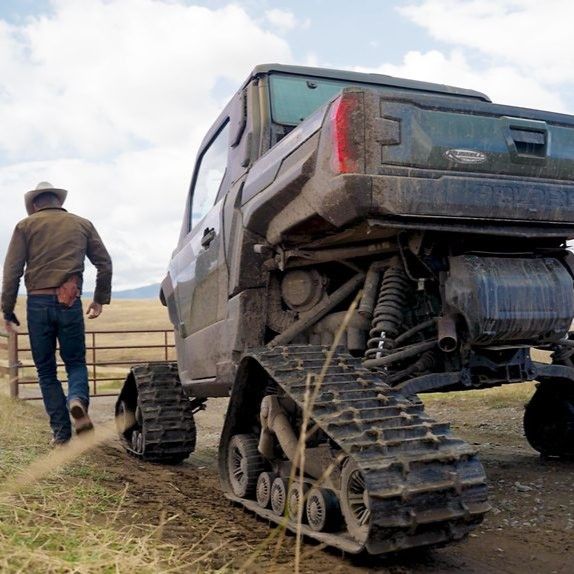

The Kawasaki Teryx 750 is a pretty awesome machine. We know that you've found a million reasons to love it but what if you could make it even better? The Camso UTV 4S1 Track System can make your side by side a virtually unstoppable machine year around. With the 4S1 track system, your Teryx 750 can handle the mud, marsh, snow or rocks better than ever.

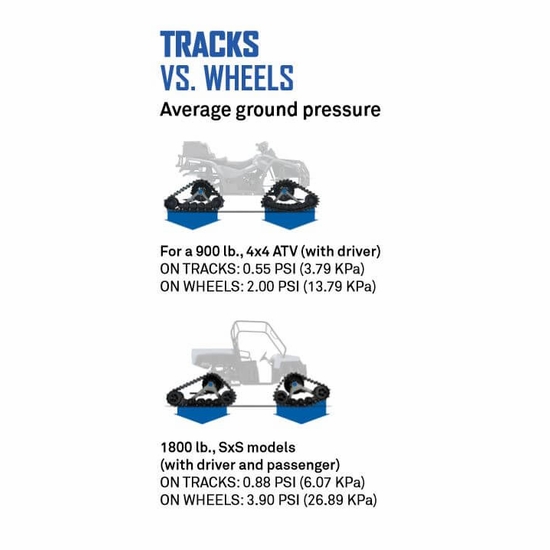

The larger and wider wheelbase disperses weight evenly over a larger area, keeping your machine from sinking down like traditional tires do. The larger ground contact lets the tracks find traction better than tires would to. Rocks aren't a problem either. When going over rocky terrain, the tracks can get a better grip then tires, while giving you more stability on the uneven surface. Where sharp rocks might puncture air filled tires, the tracks end that concern. The Camso track system will give your Kawasaki Teryx a larger ground clearance but with the lower center of gravity, tipping isn't a concern.
  • Fitment
  • Features
  • Videos
  • Important Info
  • Reviews
  • Contact an Expert

Fitment

  • 2013 Kawasaki Teryx 750 FI 4x4 Sport
  • 2013 Kawasaki Teryx 750 FI 4x4
  • 2012 Kawasaki Teryx 750 FI 4x4
  • 2011 Kawasaki Teryx 750 FI 4x4 Sport
  • 2011 Kawasaki Teryx 750 FI 4x4
  • 2010 Kawasaki Teryx 750 FI 4x4 Sport
  • 2010 Kawasaki Teryx 750 FI 4x4
  • 2009 Kawasaki Teryx 750 FI 4x4 Sport
  • 2009 Kawasaki Teryx 750 4x4
  • 2008 Kawasaki Teryx 750 4x4

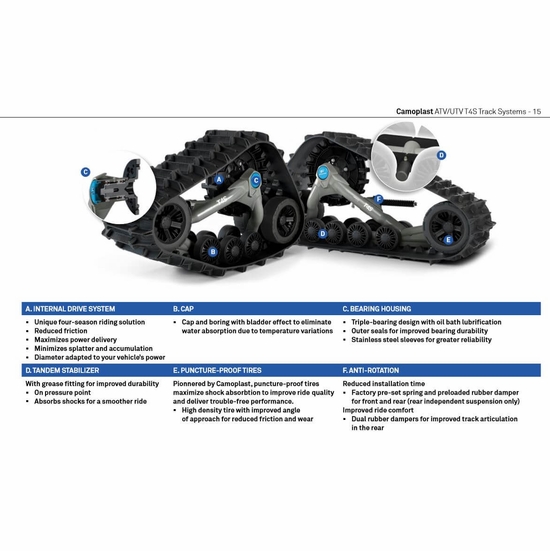

Features

  • Ground coverage: Approximately 2520 sq. in.
  • Average ground clearance: Increased by 5 in vs tires
  • Climb 20 degree hills
  • Tested in deep snow
  • Haul up to 1000 lb of supplies
  • Tow your 2500 lb shack at speed up to 25 km/h across ice and snow

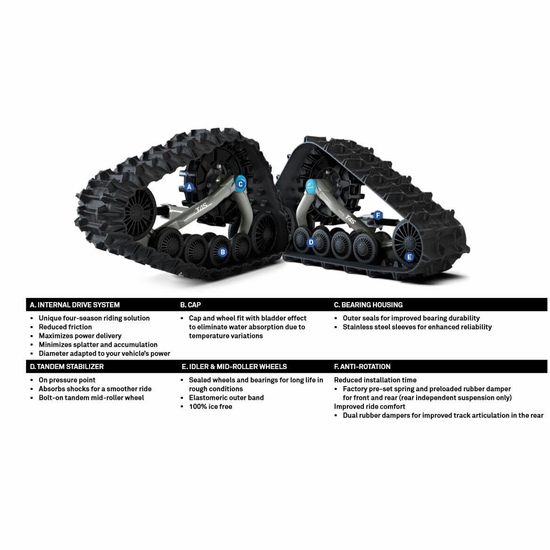

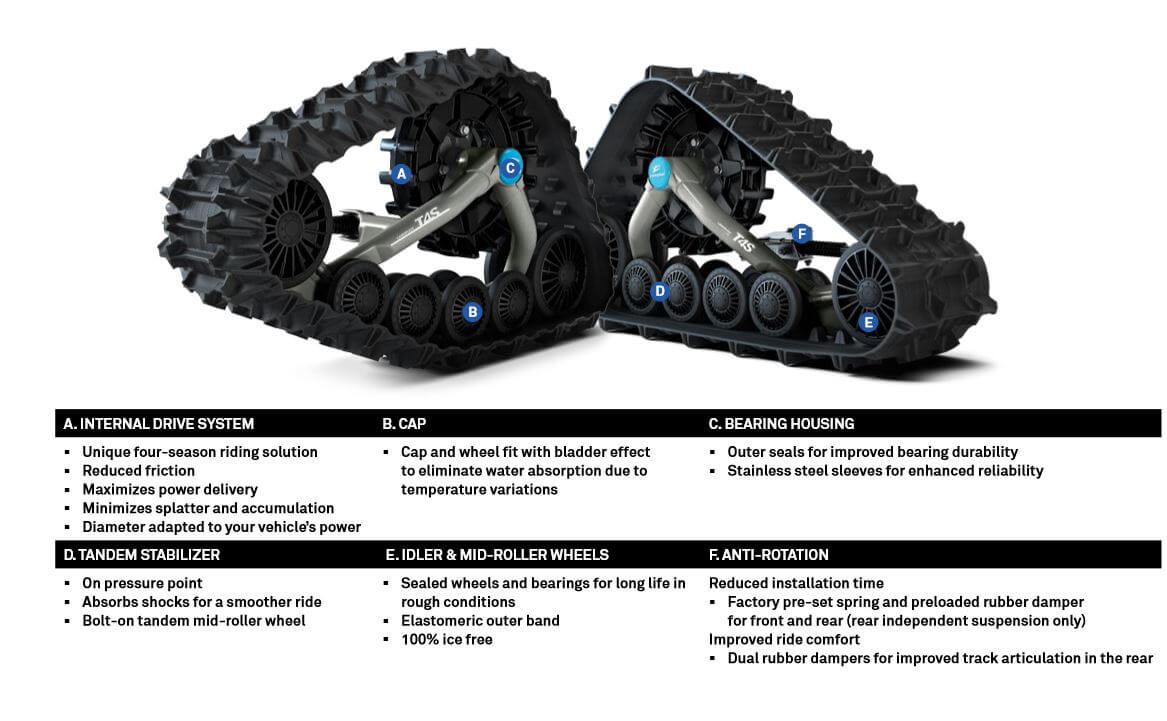

  • Foam tires with adjusted shape on idler wheels cushions the ride
  • Rubber mounted shafts on tandem stabilizer and wheels absorbs shocks for a more stable ride
  • Flex-Track design offers smoother rides than a flat track
  • Large contact patch eliminates rebounding and improves vehicle lateral stability when sidehilling

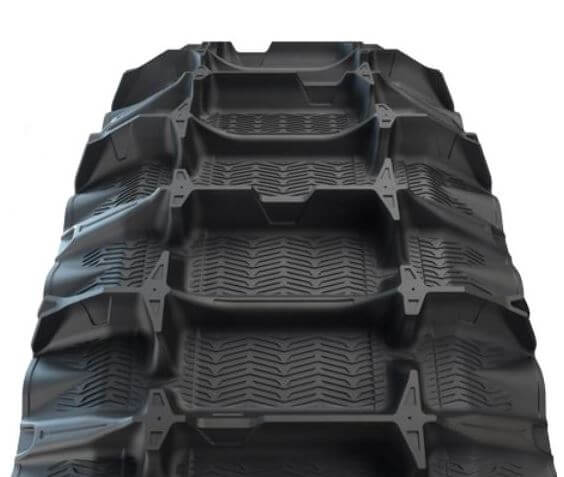

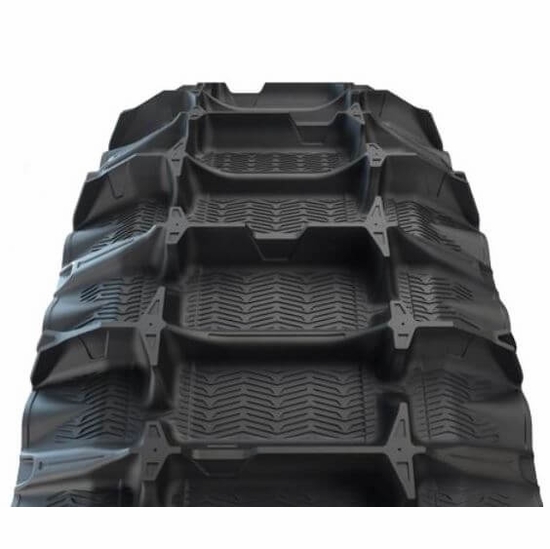

  • 1.125-inch lug height enhances traction and control by reducing track ratio
  • Solid steel frame sheds snow, mud and debris
  • High density tires adjusted shape reduces friction and wear
  • Wheel seal design reduces wear and prevents water absorption

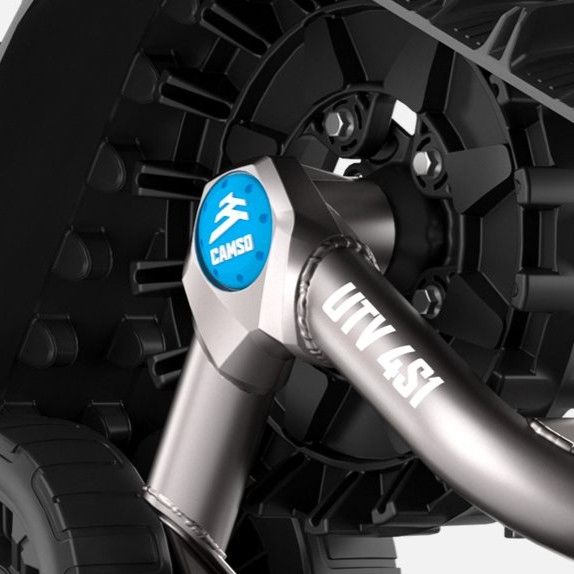

  • Triple hub bearing design oil bath lubrication and stainless sleeves increase lifespan and reduce maintenance
  • Adapted sprocket size optimizes gear ratio for more efficient power transfer
  • Front mounted tracks with Flex-Track technology with slight inward curve offers more stable handling
  • System design optimizes steering stability to reduce effort
  • 2 year limited warranty that covers manufacturing defects related to materials and workmanship

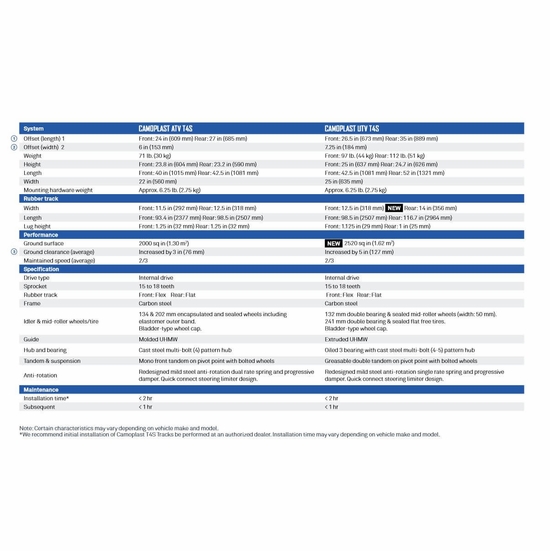

Technical Specs:
  • Drive type: Internal drive
  • Sprocket: 15 to 18 teeth
  • Frame: Carbon steel
  • Redesigned mild steel anti-rotation single rate spring and progressive damper
  • Quick connect steering limiter design
  • Weight: Front - 103 lbs; Rear - 120 lbs
  • Oiled 3-bearing with forged steel multi-bolt (4-5) pattern hub
  • 5.2 in double-bearing mid-roller wheels (1.97 in width)
  • 9.49 in double-bearing flat-free tires
  • Bladder type wheel cap and face seal
  • Rubber Track Design: Front - Flex; Rear - Flat
  • Track length: Front - 98.5 in; Rear - 116.7 in
  • Track lug height: 1.125 in
  • Track width: Front - 12.5 in; Rear - 14 in

Overall Dimensions:
  • System length: F: 42.5 in; R: 52 in
  • Offset length: F: 26.5 in; R: 35 in
  • System width: F: 12.5 in; R: 14 in
  • Offset width: 7.25 in
  • Ground clearance: F: 16 3/8 in; R: 16 1/2 in
  • System height: F: 25 in; R: 24.7 in


Videos

Important Info

  • Shared Shipping Program: You pay You pay $450.00 shipping/handling and Side By Side Stuff will pay the rest!
  • These track systems can only be shipped to a business / commercial address. It will not ship to a residential address.
  • This product is only offered to buyers in the U.S.
  • Minor modification and light interference are possible on any model.
  • These tracks require temporary body parts removal.
  • Designed to work with factory suspension.

 View Installation Instructions
