Conquer Winter: KFI Complete Snow Plow System for Honda Pioneer 500/520
Stop shoveling and put your Honda Pioneer 500 or 520 to work! The heavy-duty KFI Complete Snow Plow System is engineered for effortless winter domination, built with robust, American-made steel to withstand the harshest conditions year after year.

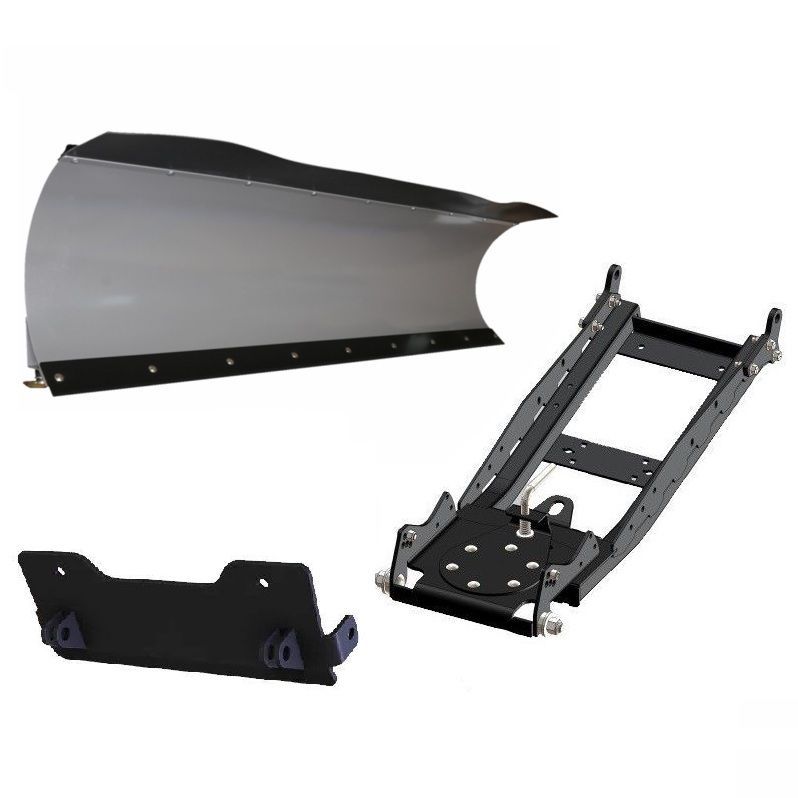

What's Included in Your Complete Kit:
This all-in-one system provides everything you need to start plowing, ensuring a perfect, hassle free fit for your UTV:
- Pro-Series Steel Blade: Choose your ideal size: 60 inch, 66 inch, or 72 inch for maximum snow clearing efficiency.
- Heavy-Duty Push Tubes: Rugged, powder-coated steel tubes that transfer plowing force directly to your Pioneer's frame.
- Vehicle Specific Mount: Custom-designed front mount system for quick attachment and detachment using standard pins.
The Complete Kit Advantage:
Buying the complete kit eliminates guesswork and saves you time. You receive all the necessary, perfectly matched components, blade, push tubes, and mount, designed to work together seamlessly. Benefit from 30+ inches of lift height, multi-position angle adjustments, and superior grade-50 steel construction, making snow removal quick, efficient, and reliable.
- Fitment
- Features
- Important Info
- Reviews
- Contact an Expert
Fitment
- 2025 Honda Pioneer 520 -
- 2023 Honda Pioneer 500 -
- 2023 Honda Pioneer 520 -
- 2022 Honda Pioneer 500 -
- 2022 Honda Pioneer 520 -
- 2021 Honda Pioneer 500 -
- 2021 Honda Pioneer 520 -
- 2020 Honda Pioneer 500 -
- 2019 Honda Pioneer 500 -
- 2018 Honda Pioneer 500 -
- 2017 Honda Pioneer 500 -
- 2016 Honda Pioneer 500 -
- 2015 Honda Pioneer 500 -
Features
- Full kit includes: Plow blade, push tube and plow mount
Pro-S Straight Steel Blade Features:
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- Constructed of 11 gauge steel
- 3/16 inch Grade 50 ribbing for a strong bolt-up to the swivel tube
- Blade face vertical height measures 16 inches high, 21 inches high with snow flap
- Weight: 60 inch - 75 lbs, 66 inch - 81 lbs, 72 inch - 85 lbs
- Fully-adjustable blade skids with bolt-on brackets
- 2-sided 3/16 inch x 3.00 inch Grade 50 steel wear bar
- Wear bar attached with heavy duty Grade 8 bolts
- Heavy duty 3 inch diameter grade-50 steel skid plates
- 66 inch and 72 inch blades include a 7 inch high 2-ply top rubber flap
- Metal bead blasted before powder coating
- Metallic silver powder coat finish
- 2 year manufacturer's warranty
- Made in the USA
- 3 blade angle positions that rotate the blade up to 25 degrees
- Six 5 degree blade pitch adjustments
- Front mount design with 30+ inches of lift height
- Added 2.5 inches of overall length
- Multi-position plow lift bracket
- Easy-pull pin blade angle adjustment
- Improved manufacturing for easier install for all plow accessories
- Works with all KFI plows
- Heavy duty 1-1/2 inch 12 gauge square steel tubing
- Heavy duty 1/4 inch thick 1-1/2 inch diameter Grade 50 pivot bushings
- 6 inch diameter POM injection molded rotator bushing
- Metal bead blasted before powder coating
- Powder coated black for supreme durability
- Complete installation instructions and mounting hardware included
- 2 year manufacturer's warranty
- Made in the USA
- Front lower plow mount allows for easy attachment and removal of the plow
- Plate constructed from 3/16 inch thick grade 50 steel
- All pin tabs are constructed from 1/4 inch thick grade 50 steel
- All plow tabs are tapered to help reduce hang-ups while trail riding
- Metal bead blasted before they are powder coated for the best possible finish prep
- Powder coated black for supreme durability
- Uses two standard 5/8 inch hitch pins for secure connection (comes with push tubes)
- Complete installation instructions and all mounting hardware included
- Made in the USA
Important Info
- Requires drilling for installation.
- Cannot ship outside the lower 48 states.
