Yamaha Wolverine X2, X4 Snow Plow System

KFI Snow Plow System - Yamaha Wolverine X2, X4

Yamaha Wolverine X2, X4 Snow Plow System

The push tubes for this kit are currently on backorder. Orders should ship starting 11/30 *FREE SHIPPING*
Located outside the US? Call us for a shipping quote.
Item #: SBSS-10556
Mfg Part #: 106145
Brand: KFI Products
$767.85
Blade Length*:
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

KFI Complete Steel Snow Plow System for Yamaha Wolverine X2 and X4

Unleash the full potential of your Yamaha Wolverine X2 or X4 this winter with the KFI Complete Steel Snow Plow System. Built tough in the USA, this kit is engineered for superior performance and a flawless factory like fit.

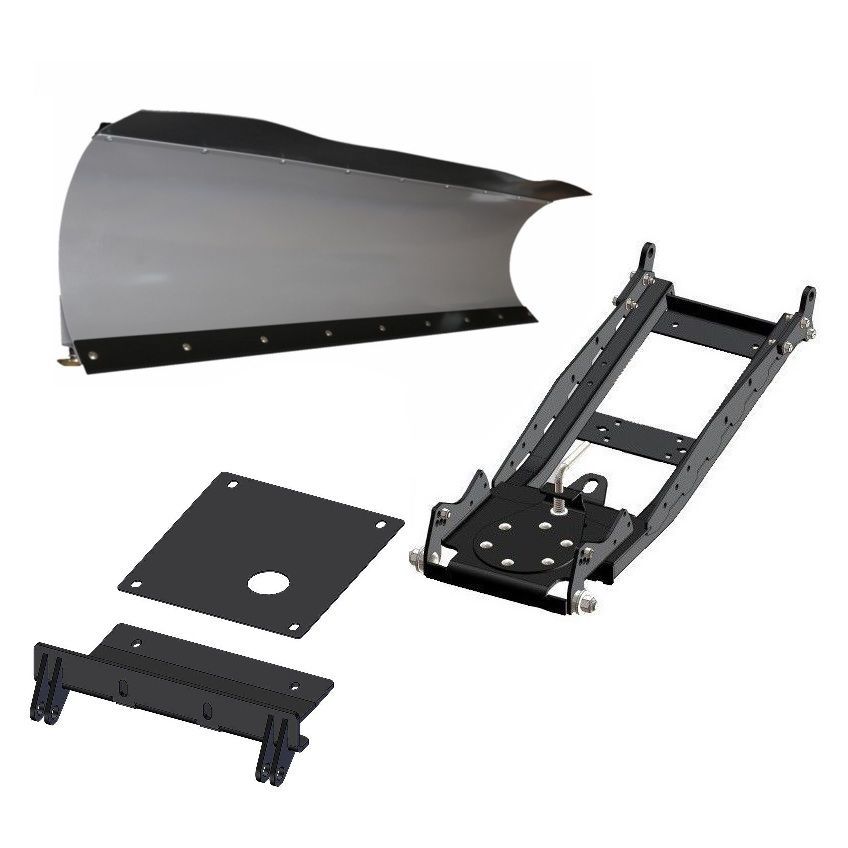

Your Turnkey Plowing Solution Includes:

Eliminate the guesswork of assembly with a system that includes every critical component:

  • Pro-Series Steel Blade: Choose from the heavy-duty 60 inch, 66 inch, or 72 inch steel blade options, complete with a reinforced design and durable wear bar to cut through packed snow and ice.
  • Rugged UTV Push Tubes: Our heavy-duty push tube system provides 30inches+ of lift height, multi-angle adjustments, and features a front mount design for quick attachment/detachment.
  • Custom Plow Mount: Model specific to your Wolverine X2/X4 for a precise bolt-on installation that transfers plowing force directly to the frame.

The Complete Kit Advantage

Opting for the complete KFI kit ensures that all components, blade, tubes, and mount, are perfectly matched and powder-coated for maximum corrosion resistance. Get reliable, year-after-year performance without the compatibility headaches. Spend less time installing and more time clearing with this robust, all-in-one snow removal solution.

Transform your Wolverine into a winter workhorse today!

  • Fitment
  • Features
  • Important Info
  • Reviews
  • Contact an Expert

Fitment

  • 2025 Yamaha Wolverine X2 1000 R-Spec
  • 2025 Yamaha Wolverine X2 1000 XT-R
  • 2025 Yamaha Wolverine X2 850 XT-R
  • 2025 Yamaha Wolverine X4 850 XT-R
  • 2024 Yamaha Wolverine X2 1000 R-Spec
  • 2024 Yamaha Wolverine X2 1000 XT-R
  • 2024 Yamaha Wolverine X2 850 R-Spec
  • 2024 Yamaha Wolverine X2 850 XT-R
  • 2024 Yamaha Wolverine X4 850 R-Spec
  • 2024 Yamaha Wolverine X4 850 XT-R
  • 2023 Yamaha Wolverine X2 850 R-Spec
  • 2023 Yamaha Wolverine X2 850 XT-R
  • 2023 Yamaha Wolverine X4 850 R-Spec
  • 2023 Yamaha Wolverine X4 850 XT-R
  • 2022 Yamaha Wolverine X2 850 R-Spec
  • 2022 Yamaha Wolverine X2 850 XT-R
  • 2022 Yamaha Wolverine X4 850 R-Spec
  • 2022 Yamaha Wolverine X4 850 XT-R
  • 2021 Yamaha Wolverine X2 850 R-Spec
  • 2021 Yamaha Wolverine X2 850 XT-R
  • 2021 Yamaha Wolverine X4 850 R-Spec
  • 2021 Yamaha Wolverine X4 850 XT-R
  • 2020 Yamaha Wolverine X2 -
  • 2020 Yamaha Wolverine X2 850 R-Spec
  • 2020 Yamaha Wolverine X2 850 R-Spec SE
  • 2020 Yamaha Wolverine X2 850 XT-R
  • 2020 Yamaha Wolverine X4 850 -
  • 2020 Yamaha Wolverine X4 850 R-Spec
  • 2020 Yamaha Wolverine X4 850 SE
  • 2020 Yamaha Wolverine X4 850 XT-R

Features

  • Full kit includes: Plow blade, push tube and plow mount

Pro-S Straight Steel Blade Features:
  • Pushes snow straight ahead or to the sides up to 25 degrees
  • Added gussets for the wider width
  • Constructed of 11 gauge steel
  • 3/16 inch Grade 50 ribbing for a strong bolt-up to the swivel tube
  • Blade face vertical height measures 16 inches high, 21 inches high with snow flap
  • Weight: 60 inch - 75 lbs, 66 inch - 81 lbs, 72 inch - 85 lbs
  • Fully-adjustable blade skids with bolt-on brackets
  • 2-sided 3/16 inch x 3.00 inch Grade 50 steel wear bar
  • Wear bar attached with heavy duty Grade 8 bolts
  • Heavy duty 3 inch diameter grade-50 steel skid plates
  • 66 inch and 72 inch blades include a 7 inch high 2-ply top rubber flap
  • Metal bead blasted before powder coating
  • Metallic silver powder coat finish
  • 2 year manufacturer's warranty
  • Made in the USA
PRO 2.0 Front Mount Push Tube Features:
  • 3 blade angle positions that rotate the blade up to 25 degrees
  • Six 5 degree blade pitch adjustments
  • Front mount design with 30+ inches of lift height
  • Added 2.5 inches of overall length
  • Multi-position plow lift bracket
  • Easy-pull pin blade angle adjustment
  • Improved manufacturing for easier install for all plow accessories
  • Works with all KFI plows
  • Heavy duty 1-1/2 inch 12 gauge square steel tubing
  • Heavy duty 1/4 inch thick 1-1/2 inch diameter Grade 50 pivot bushings
  • 6 inch diameter POM injection molded rotator bushing
  • Metal bead blasted before powder coating
  • Powder coated black for supreme durability
  • Complete installation instructions and mounting hardware included
  • 2 year manufacturer's warranty
  • Made in the USA
Plow Mount Features:
  • Front lower plow mount allows for easy attachment and removal of the plow
  • Plate constructed from 3/16 inch thick grade 50 steel
  • All pin tabs are constructed from 1/4 inch thick grade 50 steel
  • All plow tabs are tapered to help reduce hang-ups while trail riding
  • Metal bead blasted before they are powder coated for the best possible finish prep
  • Powder coated black for supreme durability
  • Uses two standard 5/8 inch hitch pins for secure connection (comes with push tubes)
  • Complete installation instructions and all mounting hardware included
  • Made in the USA
