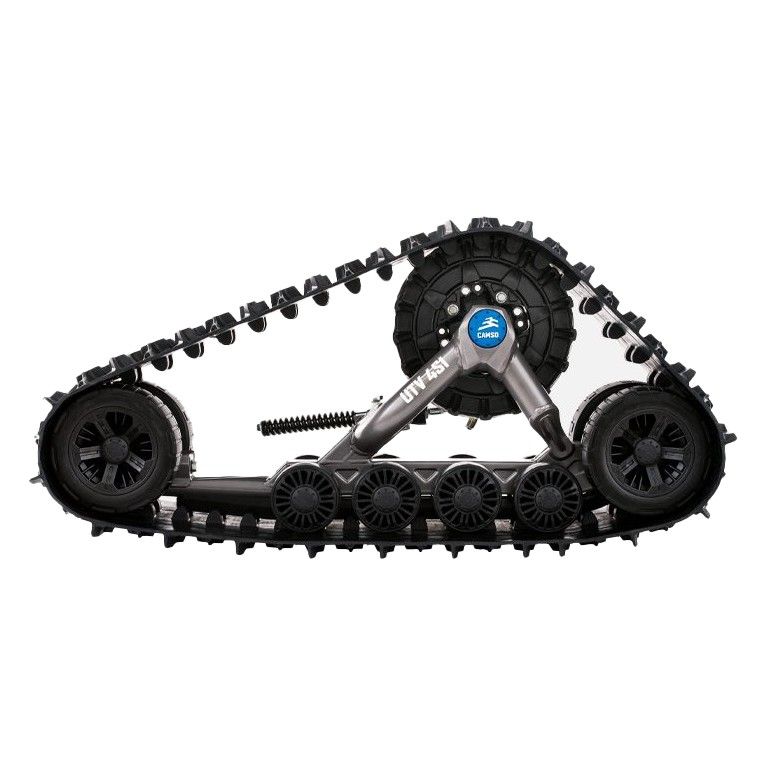

2016-21 Honda Pioneer 1000 4S1 Track System

Camso UTV 4S1 Track System - 2016-21 Honda Pioneer 1000
Camso UTV 4S1 Track System - 2016-21 Honda Pioneer 1000 - alt image 0
Camso UTV 4S1 Track System - 2016-21 Honda Pioneer 1000 - alt image 1
Camso UTV 4S1 Track System - 2016-21 Honda Pioneer 1000 - alt image 2
Camso UTV 4S1 Track System - 2016-21 Honda Pioneer 1000
Camso UTV 4S1 Track System - 2016-21 Honda Pioneer 1000
Camso UTV 4S1 Track System - 2016-21 Honda Pioneer 1000
Camso UTV 4S1 Track System - 2016-21 Honda Pioneer 1000

2016-21 Honda Pioneer 1000 4S1 Track System

Ships within 2-3 business days *SHARED SHIPPING*
Located outside the US? Call us for a shipping quote.
Item #: 82-10102
Mfg Part #: 6522-03-1127
Brand: Camso
$6,599.00
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

Turn your powerful 2016-21 Honda Pioneer 1000 into a relentless, all season machine with the Camso UTV 4S1 Track System. This is the ultimate upgrade for owners who demand year-round performance and refuse to let deep snow, swamps, or heavy mud dictate their schedule. Built for extremes, the 4S1 system delivers superior flotation and a massive contact patch that essentially allows your UTV to float over challenging terrain where wheels would instantly sink. You'll gain the necessary traction, torque, and stability to confidently haul heavy loads, climb steep, slippery hills, and traverse rugged backcountry. It's a complete shift in capability, turning your already great side by side into a truly unstoppable workhorse and adventure vehicle.

The Camso 4S1 is engineered with advanced features for both uncompromising performance and rider comfort. The innovative Flex-Track design on the front tracks includes flexible sides and a slight inward curve, which significantly reduces vibration and provides more precise, comfortable steering than traditional flat tracks. Durability is paramount with triple bearing hubs featuring oil bath lubrication and stainless sleeves, ensuring a longer lifespan and minimal maintenance in harsh conditions. A light weight, solid steel frame sheds snow and debris easily, while the engine specific gearing optimizes power transfer to the tracks, ensuring your Pioneer's horsepower is effectively utilized.

For UTV enthusiasts ready to maximize their investment, Side By Side Stuff offers this revolutionary track system. The ease of switching between tracks and tires is a major benefit, providing you with maximum adaptability for any season or application. Stop settling for seasonal limitations and start making your Pioneer 1000 a machine without boundaries.

Features and Benefits:
  • Superior Flotation: Distributes vehicle weight for excellent performance on snow and soft terrain.
  • Flex-Track Design: Provides comfortable ride and precise steering while minimizing vibration.
  • Triple Bearing Hubs: Delivers extreme durability and reduced maintenance needs.
  • Engine-Specific Gearing: Optimizes power and torque transfer for efficient travel.
  • Solid Steel Frame: Lightweight yet rugged, designed to shed debris effectively.
  • Fitment
  • Features
  • Videos
  • Important Info
  • Reviews
  • Contact an Expert

Fitment

  • 2025 Honda Pioneer 1000-5 Deluxe
  • 2025 Honda Pioneer 1000-5 -
  • 2025 Honda Pioneer 1000 Deluxe
  • 2025 Honda Pioneer 1000 -
  • 2024 Honda Pioneer 1000-5 Deluxe
  • 2024 Honda Pioneer 1000-5 -
  • 2024 Honda Pioneer 1000 Deluxe
  • 2024 Honda Pioneer 1000 -
  • 2023 Honda Pioneer 1000-5 Deluxe
  • 2023 Honda Pioneer 1000-5 -
  • 2023 Honda Pioneer 1000 Deluxe
  • 2023 Honda Pioneer 1000 -
  • 2022 Honda Pioneer 1000-5 Deluxe
  • 2022 Honda Pioneer 1000-5 -
  • 2022 Honda Pioneer 1000 Deluxe
  • 2022 Honda Pioneer 1000 -
  • 2021 Honda Pioneer 1000-5 Limited Edition
  • 2021 Honda Pioneer 1000-5 Deluxe
  • 2021 Honda Pioneer 1000-5 -
  • 2021 Honda Pioneer 1000 Limited Edition
  • 2021 Honda Pioneer 1000 Deluxe
  • 2021 Honda Pioneer 1000 -
  • 2020 Honda Pioneer 1000-5 Limited Edition
  • 2020 Honda Pioneer 1000-5 Deluxe
  • 2020 Honda Pioneer 1000-5 -
  • 2020 Honda Pioneer 1000 Limited Edition
  • 2020 Honda Pioneer 1000 Deluxe
  • 2020 Honda Pioneer 1000 -
  • 2019 Honda Pioneer 1000-5 Limited Edition
  • 2019 Honda Pioneer 1000-5 Deluxe
  • 2019 Honda Pioneer 1000-5 -
  • 2019 Honda Pioneer 1000 Limited Edition
  • 2019 Honda Pioneer 1000 EPS
  • 2019 Honda Pioneer 1000 -
  • 2018 Honda Pioneer 1000-5 Limited Edition
  • 2018 Honda Pioneer 1000-5 Deluxe
  • 2018 Honda Pioneer 1000-5 -
  • 2018 Honda Pioneer 1000 Limited Edition
  • 2018 Honda Pioneer 1000 EPS
  • 2018 Honda Pioneer 1000 -
  • 2017 Honda Pioneer 1000-5 Limited Edition
  • 2017 Honda Pioneer 1000-5 Deluxe
  • 2017 Honda Pioneer 1000-5 -
  • 2017 Honda Pioneer 1000 Limited Edition
  • 2017 Honda Pioneer 1000 EPS
  • 2017 Honda Pioneer 1000 -
  • 2016 Honda Pioneer 1000-5 Deluxe
  • 2016 Honda Pioneer 1000-5 -
  • 2016 Honda Pioneer 1000 EPS
  • 2016 Honda Pioneer 1000 -

Features

  • Ground coverage: Approximately 2520 sq. in.
  • Average ground clearance: Increased by 5 in vs tires
  • Climb 20 degree hills
  • Tested in deep snow
  • Haul up to 1000 lb of supplies
  • Tow your 2500 lb shack at speed up to 25 km/h across ice and snow
  • Foam tires with adjusted shape on idler wheels cushions the ride
  • Rubber mounted shafts on tandem stabilizer and wheels absorbs shocks for a more stable ride
  • Flex-Track design offers smoother rides than a flat track
  • Large contact patch eliminates rebounding and improves vehicle lateral stability when sidehilling
  • 1.125-inch lug height enhances traction and control by reducing track ratio
  • Solid steel frame sheds snow, mud and debris
  • High density tires adjusted shape reduces friction and wear
  • Wheel seal design reduces wear and prevents water absorption

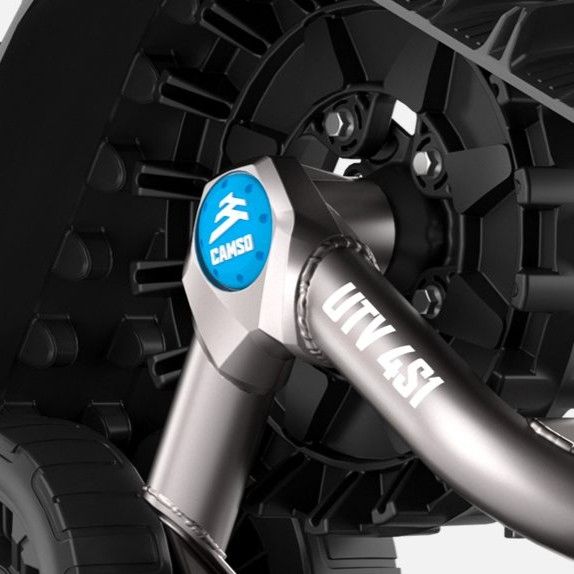

  • Triple hub bearing design oil bath lubrication and stainless sleeves increase lifespan and reduce maintenance
  • Adapted sprocket size optimizes gear ratio for more efficient power transfer

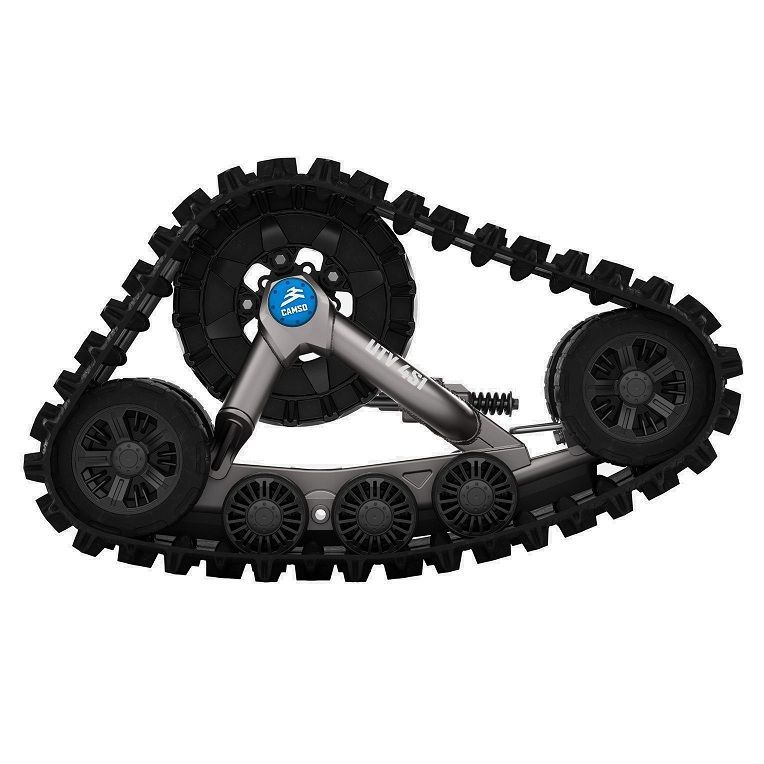

  • Front mounted tracks with Flex-Track technology with slight inward curve offers more stable handling
  • System design optimizes steering stability to reduce effort
  • 2 year limited warranty that covers manufacturing defects related to materials and workmanship

Technical Specs:
  • Drive type: Internal drive
  • Sprocket: 15 to 18 teeth
  • Frame: Carbon steel
  • Redesigned mild steel anti-rotation single rate spring and progressive damper
  • Quick connect steering limiter design
  • Weight: Front - 103 lbs; Rear - 120 lbs
  • Oiled 3-bearing with forged steel multi-bolt (4-5) pattern hub
  • 5.2 in double-bearing mid-roller wheels (1.97 in width)
  • 9.49 in double-bearing flat-free tires
  • Bladder type wheel cap and face seal
  • Rubber Track Design: Front - Flex; Rear - Flat
  • Track length: Front - 98.5 in; Rear - 116.7 in
  • Track lug height: 1.125 in
  • Track width: Front - 12.5 in; Rear - 14 in

Overall Dimensions:
  • System length: F: 42.5 in; R: 52 in
  • Offset length: F: 26.5 in; R: 35 in
  • System width: F: 12.5 in; R: 14 in
  • Offset width: 7.25 in
  • Ground clearance: F: 16 3/8 in; R: 16 1/2 in
  • System height: F: 25 in; R: 24.7 in


Videos

Important Info

  • Shared Shipping Program: You pay You pay $450.00 shipping/handling and Side By Side Stuff will pay the rest!
  • These track systems can only be shipped to a business / commercial address. It will not ship to a residential address.
  • This product is only offered to buyers in the U.S.
  • Minor modification and light interference are possible on any model.
  • These tracks require permanent vehicle modification.
  • The addition of these tracks will cause no compliance with accessories.
  • Designed to work with factory suspension.

 View Installation Instructions
