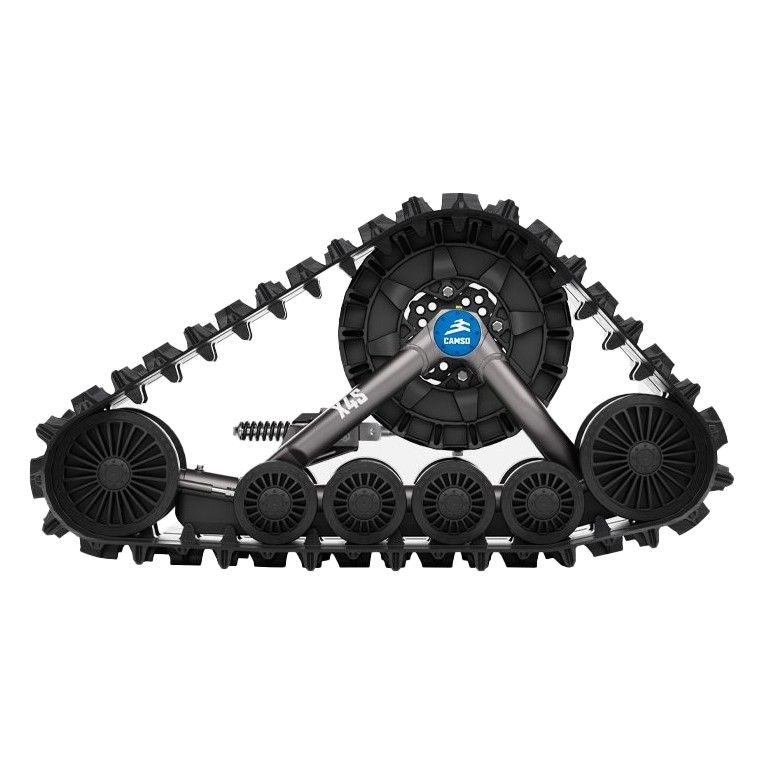

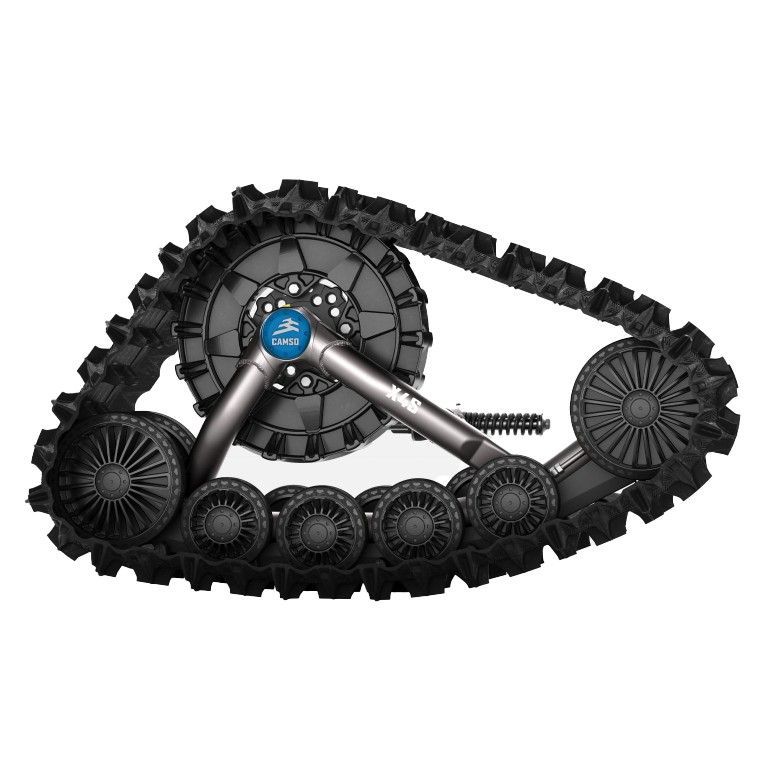

Honda Pioneer 500, 520 X4S Track System

Camso UTV X4S Track System - Honda Pioneer 500, 520
Camso UTV X4S Track System - Honda Pioneer 500, 520 - alt image 0
Camso UTV X4S Track System - Honda Pioneer 500, 520 - alt image 1
Camso UTV X4S Track System - Honda Pioneer 500, 520 - alt image 2
Camso UTV X4S Track System - Honda Pioneer 500, 520
Camso UTV X4S Track System - Honda Pioneer 500, 520
Camso UTV X4S Track System - Honda Pioneer 500, 520
Camso UTV X4S Track System - Honda Pioneer 500, 520

Honda Pioneer 500, 520 X4S Track System

Ships within 2-3 business days *SHARED SHIPPING*
Located outside the US? Call us for a shipping quote.
Item #: 82-10328
Mfg Part #: 7522-03-1542
Brand: Camso
$5,049.00
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

Owning a Pioneer 500 or 520 does not make you invincible to getting stuck, being unable to navigate in certain areas, among other situations. However, by integrating the right aftermarket accessories, you can get darn close! Side By Side Stuff has a wide variety of options that will get you geared up for all occasions.

For marshlands and heavy snow, check out the Camso X4S UTV Track System. Its revolutionary design using Flextrack technology has changed the way Pioneer 500 track systems operate. Drive vibration has virtually been eliminated while you'll also find an improvement in shock absorption and handling. The SxS kit also reduces splatter from mud and snow, but because of the new design, servicing is easier and more economical. You can pick your UTV tracks up today by adding it to your cart or give a knowledgeable tech a call for questions.
  • Fitment
  • Features
  • Videos
  • Important Info
  • Reviews
  • Contact an Expert

Fitment

  • 2025 Honda Pioneer 520 -
  • 2023 Honda Pioneer 520 -
  • 2023 Honda Pioneer 500 -
  • 2022 Honda Pioneer 520 -
  • 2022 Honda Pioneer 500 -
  • 2021 Honda Pioneer 520 -
  • 2021 Honda Pioneer 500 -
  • 2020 Honda Pioneer 500 -
  • 2019 Honda Pioneer 500 -
  • 2018 Honda Pioneer 500 -
  • 2017 Honda Pioneer 500 -
  • 2016 Honda Pioneer 500 -
  • 2015 Honda Pioneer 500 -

Features

  • Ground coverage: Approximately 2000 sq. in
  • Average ground clearance: Increased by 3 in vs tires
  • Front mounted tracks with Flex-Track sides and slight inward curve offers more stable handling
  • Geometry of solid steel frame enhances front steering & handling
  • Large contact patch eliminates rebounding and improves vehicle power and lateral stability when sidehilling
  • 1.125-inch lug height enhances traction and control by reducing track ratio
  • Solid steel frame sheds snow, mud and debris
  • Double bearing hubs and oil bath housing optimizes durability
  • Double bearing bolted on mid-roller and idler wheels improves performance and simplifies maintenance
  • Adapted sprocket size optimizes gear ratio for better power transfer
  • Flex-Track design provides a smoother ride than flat tracks
  • Cone dampers reduce vibrations on the tandem and rear tracks
  • 2-year limited warranty covers manufacturing defects related to materials and workmanship

Technical Specs:
  • Drive type: Internal drive
  • Sprocket: 15 to 18 teeth
  • Frame: Carbon steel
  • Redesigned mild steel anti-rotation single rate spring and progressive damper
  • Quick connect steering limiter design
  • Weight: Front - 72.6 lbs; Rear - 79.4 lbs
  • Cast steel multi-bolt (4) pattern
  • 5.3 and 7.9 in double bearing wheels
  • Standard and replaceable sealed bearings
  • Elastomer outer band
  • Bladder type wheel cap
  • Rubber Track Design: Front - Flex; Rear - Flat
  • Track length: Front - 93.4 in; Rear - 98.5
  • Track lug height: Front - 1.125 in; Rear - 1.25
  • Track width: Front - 11.5 in; Rear - 12.5 in

Overall Dimensions:
  • System length: F: 40 in; R: 42.5 in
  • Offset length: F: 24 in; R: 27 in
  • System width: F: 11.5 in; R: 12.5 in
  • Offset width: 6 in
  • Ground clearance: F: 15 3/8 in; R: 14 5/8 in
  • System height: F: 23.8 in; R: 23.2 in



Videos

Important Info

  • Shared Shipping Program: You pay You pay $450.00 shipping/handling and Side By Side Stuff will pay the rest!
  • These track systems can only be shipped to a business / commercial address. It will not ship to a residential address.
  • This product is only offered to buyers in the U.S.
  • Minor modification and light interference are possible on any model.
  • These tracks have permanent interference.
  • Designed to work with factory suspension.
