Product Description

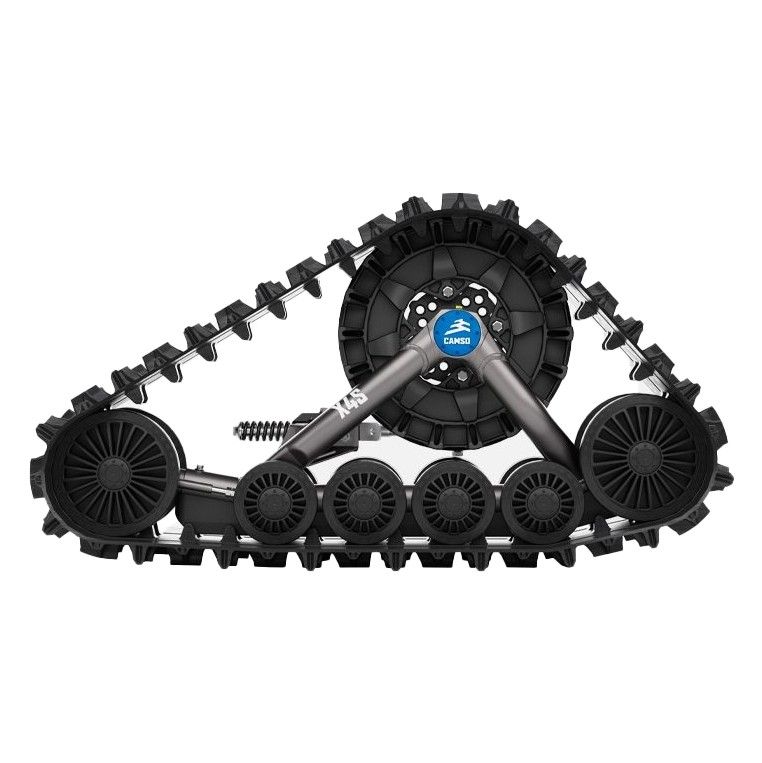

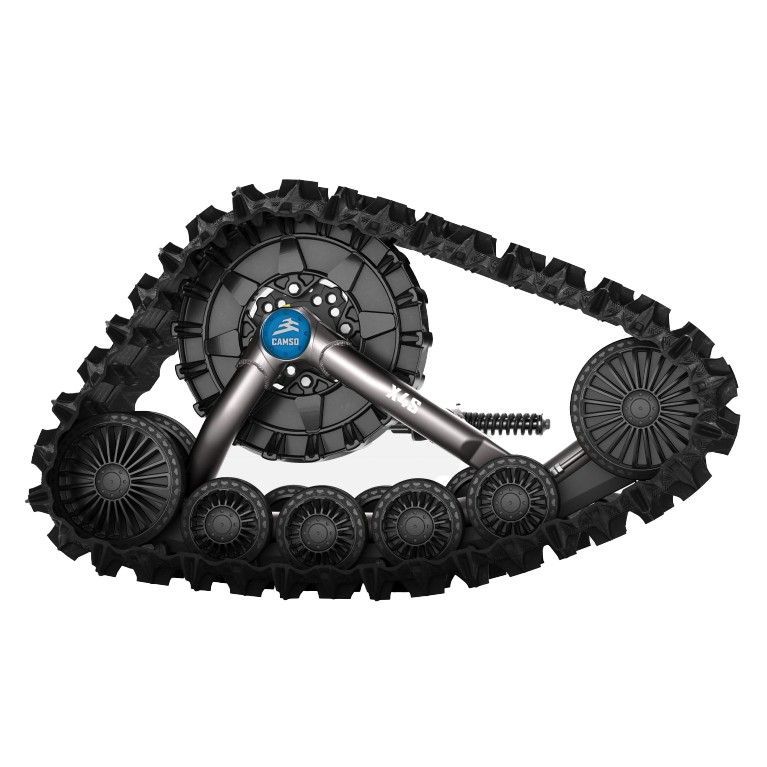

There is something to be said about a sleek set of aftermarket rims and beefed up tires. However, when you live in snowy areas or the marshlands, tires won't always do the trick. You need something that will keep you moving, regardless of how harsh the environment is. For that, Side By Side Stuff has the Camso X4S UTV Track System.

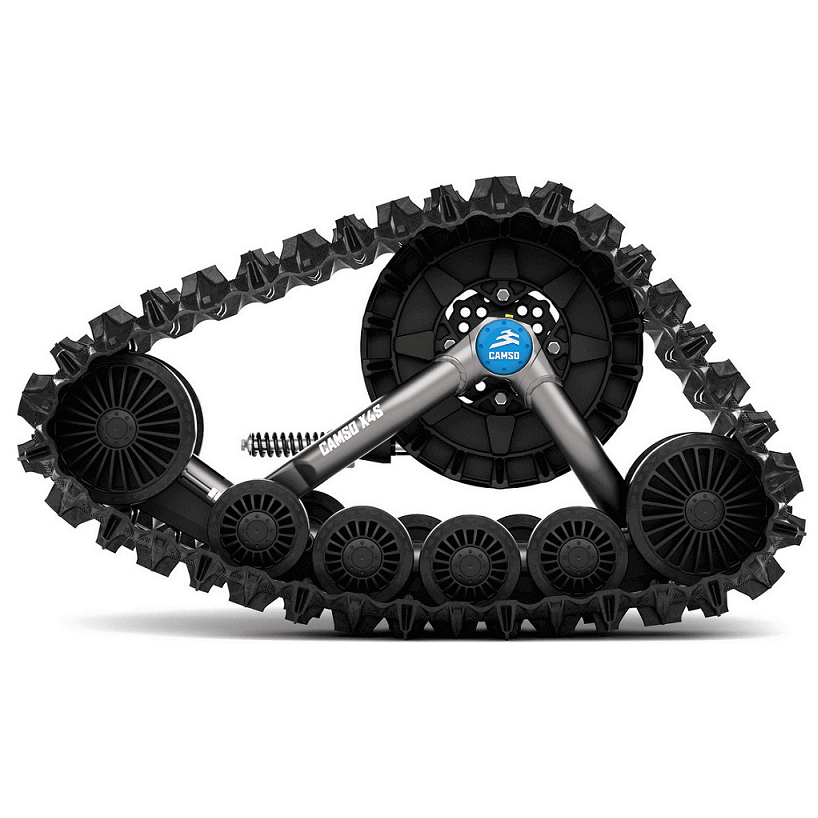

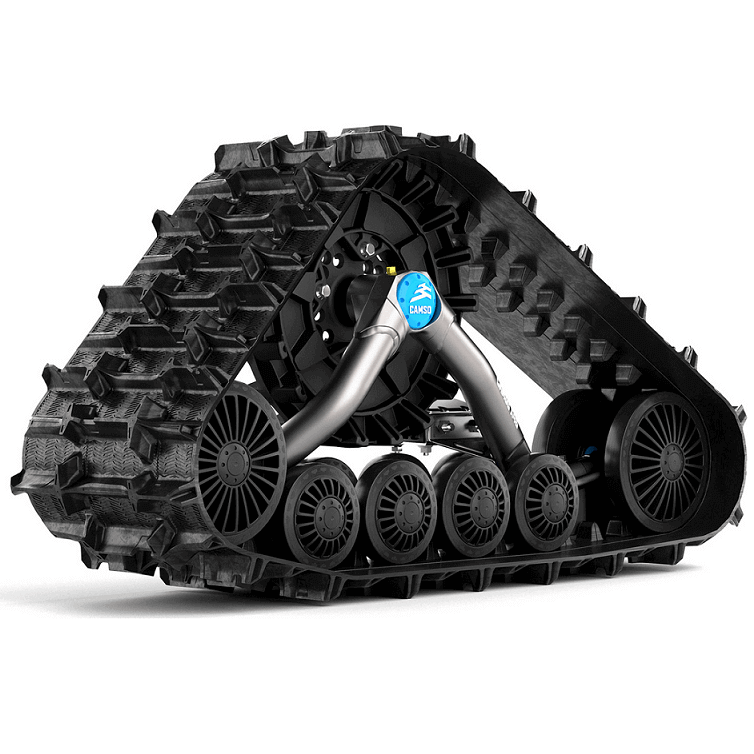

The Pioneer 700 track system is unlike any conventional kits available. Camso has gotten their hands on Flextrack technology, making the component slightly curved and flexible on the sides. Its design proves to offer improved shock absorption, reduced vibration and more controlled handling. There is a clear difference in track support, and it's nearly impossible to get stuck! If you're sick of needing a tow, give us a call, one of our knowledgeable techs is glad to help.
The Pioneer 700 track system is unlike any conventional kits available. Camso has gotten their hands on Flextrack technology, making the component slightly curved and flexible on the sides. Its design proves to offer improved shock absorption, reduced vibration and more controlled handling. There is a clear difference in track support, and it's nearly impossible to get stuck! If you're sick of needing a tow, give us a call, one of our knowledgeable techs is glad to help.
- Fitment
- Features
- Videos
- Important Info
- Reviews
- Contact an Expert
Fitment
- 2025 Honda Pioneer 700 Forest
- 2025 Honda Pioneer 700 Deluxe
- 2025 Honda Pioneer 700 -
- 2024 Honda Pioneer 700 Forest
- 2024 Honda Pioneer 700 Deluxe
- 2024 Honda Pioneer 700 -
- 2023 Honda Pioneer 700 Forest
- 2023 Honda Pioneer 700 Deluxe
- 2023 Honda Pioneer 700 -
- 2022 Honda Pioneer 700 Deluxe
- 2022 Honda Pioneer 700 -
- 2021 Honda Pioneer 700 Deluxe
- 2021 Honda Pioneer 700 -
- 2020 Honda Pioneer 700 Deluxe
- 2020 Honda Pioneer 700 -
- 2019 Honda Pioneer 700 Deluxe
- 2019 Honda Pioneer 700 -
- 2018 Honda Pioneer 700 Deluxe
- 2018 Honda Pioneer 700 -
- 2017 Honda Pioneer 700 Deluxe
- 2017 Honda Pioneer 700 -
Features
- Ground coverage: Approximately 2000 sq. in
- Average ground clearance: Increased by 3 in vs tires
- Front mounted tracks with Flex-Track sides and slight inward curve offers more stable handling

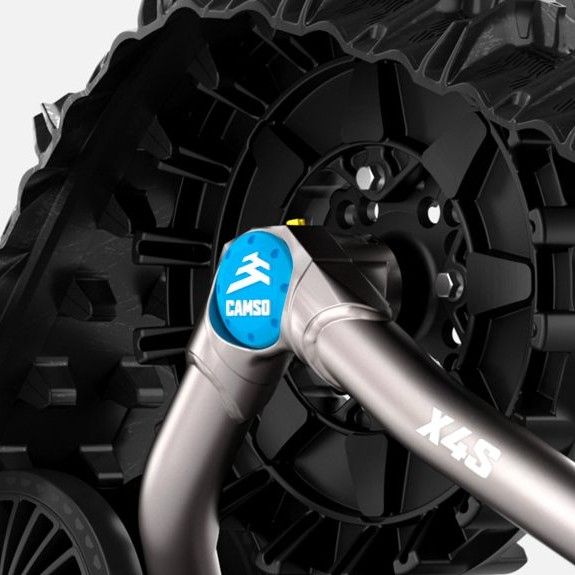

- Geometry of solid steel frame enhances front steering & handling
- Large contact patch eliminates rebounding and improves vehicle power and lateral stability when sidehilling
- 1.125-inch lug height enhances traction and control by reducing track ratio
- Solid steel frame sheds snow, mud and debris
- Double bearing hubs and oil bath housing optimizes durability

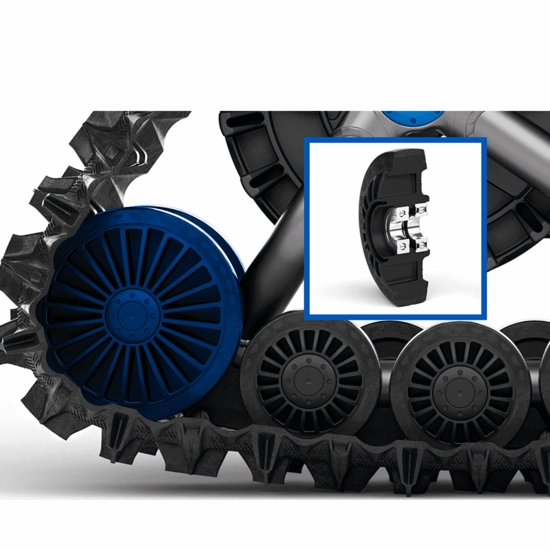

- Double bearing bolted on mid-roller and idler wheels improves performance and simplifies maintenance
- Adapted sprocket size optimizes gear ratio for better power transfer
- Flex-Track design provides a smoother ride than flat tracks
- Cone dampers reduce vibrations on the tandem and rear tracks
- 2-year limited warranty covers manufacturing defects related to materials and workmanship

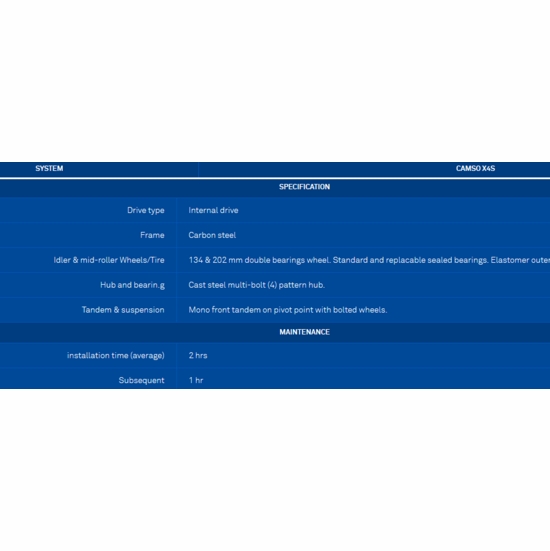

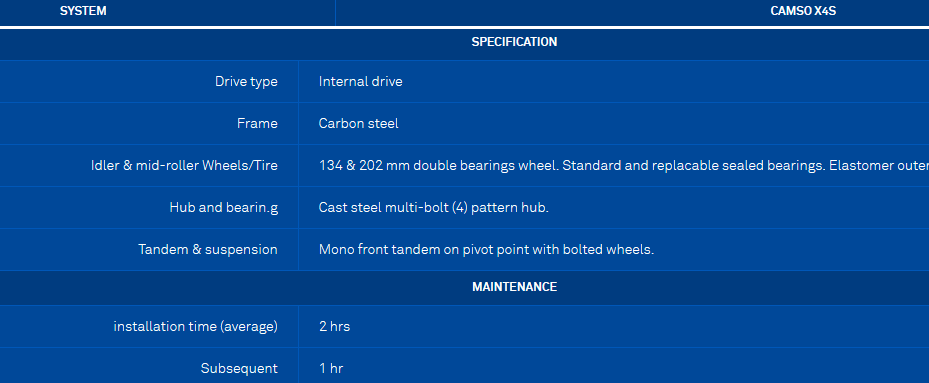

Technical Specs:
- Drive type: Internal drive
- Sprocket: 15 to 18 teeth
- Frame: Carbon steel
- Redesigned mild steel anti-rotation single rate spring and progressive damper
- Quick connect steering limiter design
- Weight: Front - 72.6 lbs; Rear - 79.4 lbs
- Cast steel multi-bolt (4) pattern
- 5.3 and 7.9 in double bearing wheels
- Standard and replaceable sealed bearings
- Elastomer outer band
- Bladder type wheel cap
- Rubber Track Design: Front - Flex; Rear - Flat
- Track length: Front - 93.4 in; Rear - 98.5
- Track lug height: Front - 1.125 in; Rear - 1.25
- Track width: Front - 11.5 in; Rear - 12.5 in

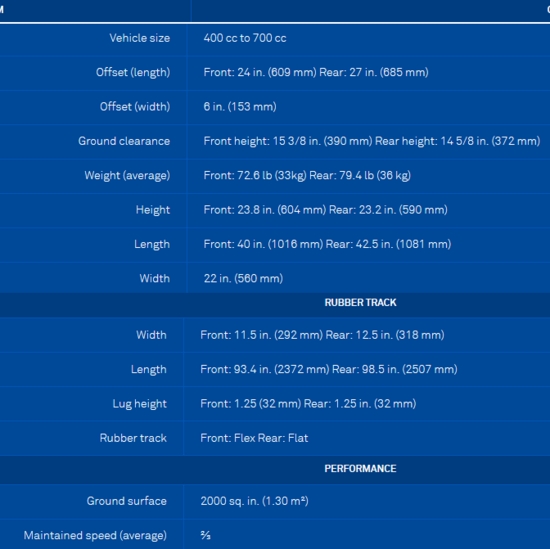

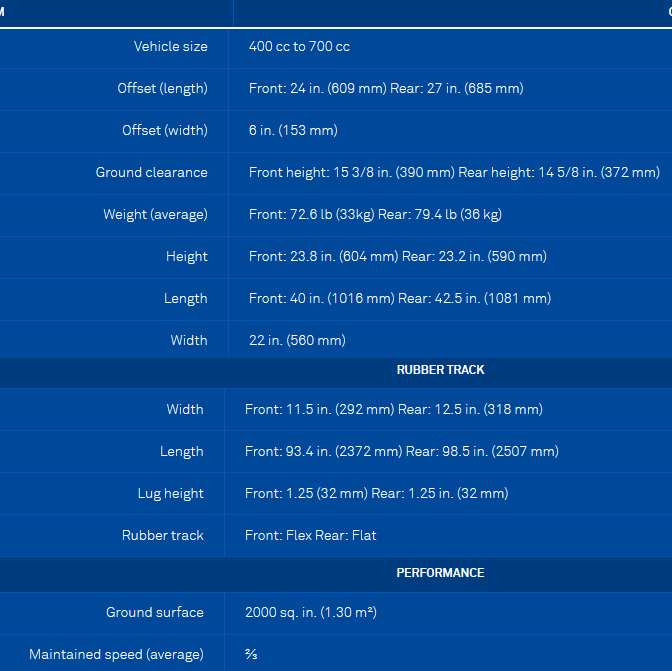

Overall Dimensions:
- System length: F: 40 in; R: 42.5 in
- Offset length: F: 24 in; R: 27 in
- System width: F: 11.5 in; R: 12.5 in
- Offset width: 6 in
- Ground clearance: F: 15 3/8 in; R: 14 5/8 in
- System height: F: 23.8 in; R: 23.2 in
Videos
Important Info
- Shared Shipping Program: You pay You pay $450.00 shipping/handling and Side By Side Stuff will pay the rest!
- These track systems can only be shipped to a business / commercial address. It will not ship to a residential address.
- This product is only offered to buyers in the U.S.
- Minor modification and light interference are possible on any model.
- Designed to work with factory suspension.
