Product Description

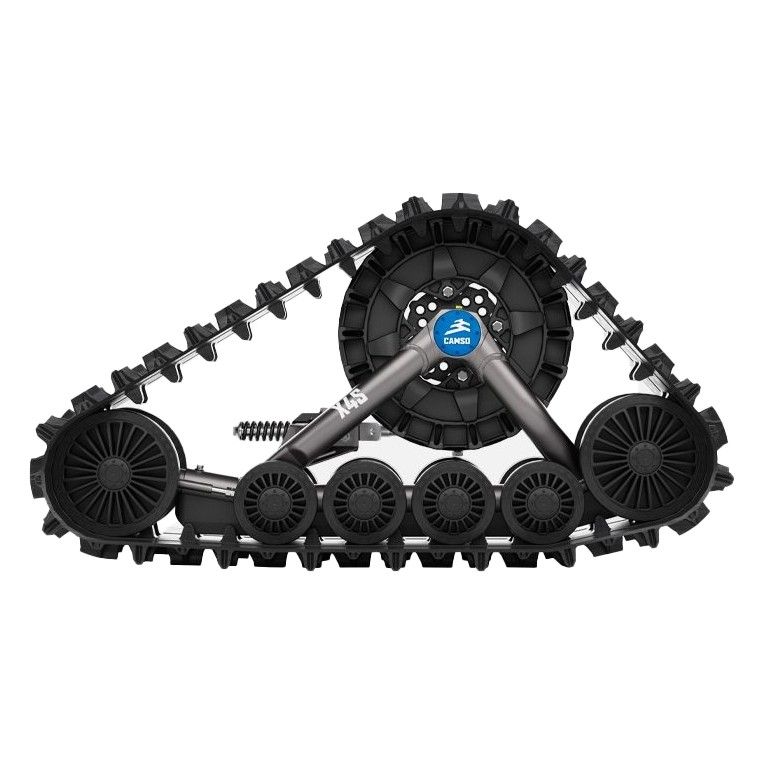

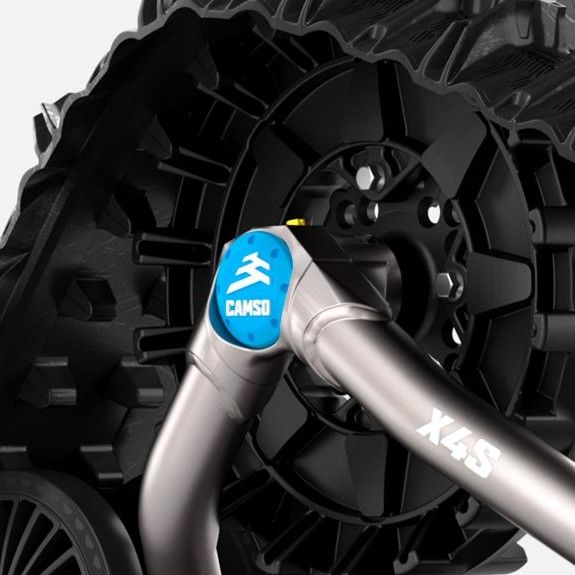

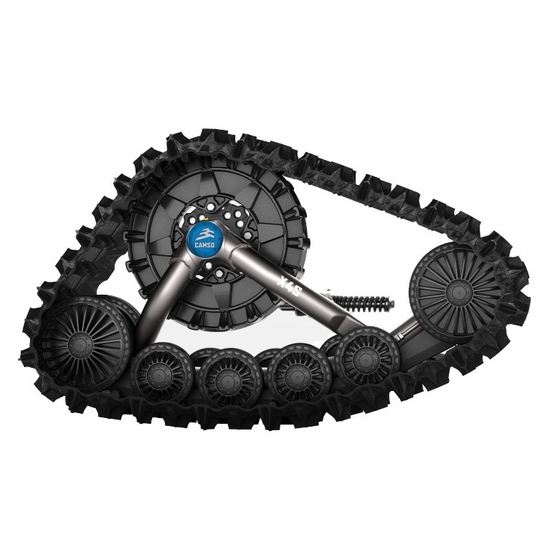

Do you live in a place where winter is harsh, and snowfall is heavy? Maybe you live in the marshlands and you're over getting stuck all the time. Side By Side Stuff has a fix with our selection of aftermarket accessories. To keep you from getting stuck or to make traveling in the snow more productive, check out the Camso X4S UTV Track System.
Camso blasted the offroad world with their version of Gator XUV 550, 560 or 590 tracks. Why? Because they revolutionized the way the systems work to make the ride more enjoyable and controlled. Most Gator XUV 550 track systems are jerky and nearly impossible to handle. Camso used exclusive Flextrack technology to eliminate vibration and provide better shock absorption. It's unlikely you'd ever get stuck! For more questions regarding this aftermarket upgrade, give one of our friendly techs a call, we're glad to help!
Camso blasted the offroad world with their version of Gator XUV 550, 560 or 590 tracks. Why? Because they revolutionized the way the systems work to make the ride more enjoyable and controlled. Most Gator XUV 550 track systems are jerky and nearly impossible to handle. Camso used exclusive Flextrack technology to eliminate vibration and provide better shock absorption. It's unlikely you'd ever get stuck! For more questions regarding this aftermarket upgrade, give one of our friendly techs a call, we're glad to help!
- Fitment
- Features
- Videos
- Important Info
- Reviews
- Contact an Expert
Fitment
- 2024 John Deere Gator XUV590M -
- 2024 John Deere Gator XUV560E -
- 2023 John Deere Gator XUV 590M -
- 2023 John Deere Gator XUV 590E -
- 2023 John Deere Gator XUV 560E -
- 2022 John Deere Gator XUV 590E -
- 2022 John Deere Gator XUV 560E -
- 2021 John Deere Gator XUV 590E -
- 2021 John Deere Gator XUV 560E -
- 2020 John Deere Gator XUV 590E -
- 2020 John Deere Gator XUV 560E -
- 2019 John Deere Gator XUV 590E -
- 2019 John Deere Gator XUV 560E -
- 2018 John Deere Gator XUV 590E -
- 2018 John Deere Gator XUV 560 -
- 2017 John Deere Gator XUV 590i Power Steering
- 2017 John Deere Gator XUV 590i -
- 2017 John Deere Gator XUV 560 -
- 2016 John Deere Gator XUV 590i Power Steering
- 2016 John Deere Gator XUV 590i -
- 2016 John Deere Gator XUV 560 -
- 2016 John Deere Gator XUV 550 -
- 2015 John Deere Gator XUV 550 -
- 2014 John Deere Gator XUV 550 -
- 2013 John Deere Gator XUV 550 -
- 2012 John Deere Gator XUV 550 -
Features
- Ground coverage: Approximately 2000 sq. in
- Average ground clearance: Increased by 3 in vs tires
- Front mounted tracks with Flex-Track sides and slight inward curve offers more stable handling
- Geometry of solid steel frame enhances front steering & handling
- Large contact patch eliminates rebounding and improves vehicle power and lateral stability when sidehilling
- 1.125-inch lug height enhances traction and control by reducing track ratio
- Solid steel frame sheds snow, mud and debris
- Double bearing hubs and oil bath housing optimizes durability
- Double bearing bolted on mid-roller and idler wheels improves performance and simplifies maintenance
- Adapted sprocket size optimizes gear ratio for better power transfer
- Flex-Track design provides a smoother ride than flat tracks
- Cone dampers reduce vibrations on the tandem and rear tracks
- 2-year limited warranty covers manufacturing defects related to materials and workmanship
Technical Specs:
- Drive type: Internal drive
- Sprocket: 15 to 18 teeth
- Frame: Carbon steel
- Redesigned mild steel anti-rotation single rate spring and progressive damper
- Quick connect steering limiter design
- Weight: Front - 72.6 lbs; Rear - 79.4 lbs
- Cast steel multi-bolt (4) pattern
- 5.3 and 7.9 in double bearing wheels
- Standard and replaceable sealed bearings
- Elastomer outer band
- Bladder type wheel cap
- Rubber Track Design: Front - Flex; Rear - Flat
- Track length: Front - 93.4 in; Rear - 98.5
- Track lug height: Front - 1.125 in; Rear - 1.25
- Track width: Front - 11.5 in; Rear - 12.5 in
Overall Dimensions:
- System length: F: 40 in; R: 42.5 in
- Offset length: F: 24 in; R: 27 in
- System width: F: 11.5 in; R: 12.5 in
- Offset width: 6 in
- Ground clearance: F: 15 3/8 in; R: 14 5/8 in
- System height: F: 23.8 in; R: 23.2 in
Videos
Important Info
- Shared Shipping Program: You pay You pay $450.00 shipping/handling and Side By Side Stuff will pay the rest!
- These track systems can only be shipped to a business / commercial address. It will not ship to a residential address.
- This product is only offered to buyers in the U.S.
- Minor modification and light interference are possible on any model.
- These tracks have permanent interference.
- Designed to work with factory suspension.
