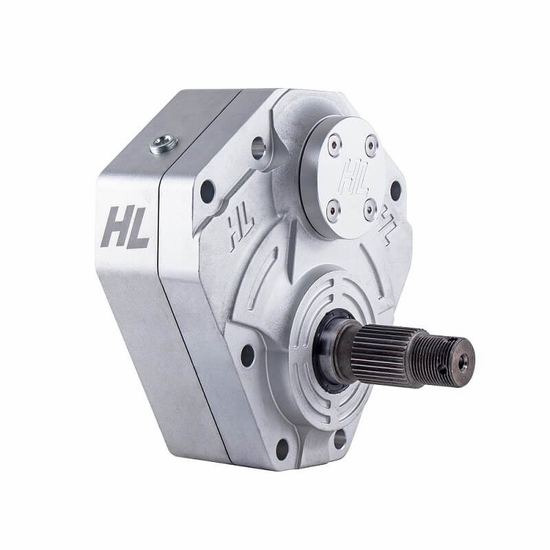

Polaris RZR PRO XP Dual Idler Gear Lift

NOTES:
- Ships UPS ground in multiple boxes.
- Requires 14 inch or larger wheels.
- 14 inch factory wheels require 1 inch wheel spacers.
- 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.


Applicability: 2020-22 Polaris RZR PRO XP and RZR PRO XP 4


Did you come to terms with the fact that your stock-built car isn't cutting it for the way you want to ride? Unfortunately, these factory units are intended for granny trailing, ripping in the wide open, and light mudding. Not your cup of tea? Don't worry, Stuff junky! We've got just the aftermarket UTV parts and accessories that will have you crawling rock gardens and taking ownership of honey holes in no time. All you need is the High Lifter Dual Idler 4 Inch Portal Gear Lift for RZR PRO XP models. These systems will give you lots of extra inches with outstanding torque gains to go with them. If you want to do the deed at optimizing performance levels, get your Polaris suspension, and driveline parts upgrade today.


Features:

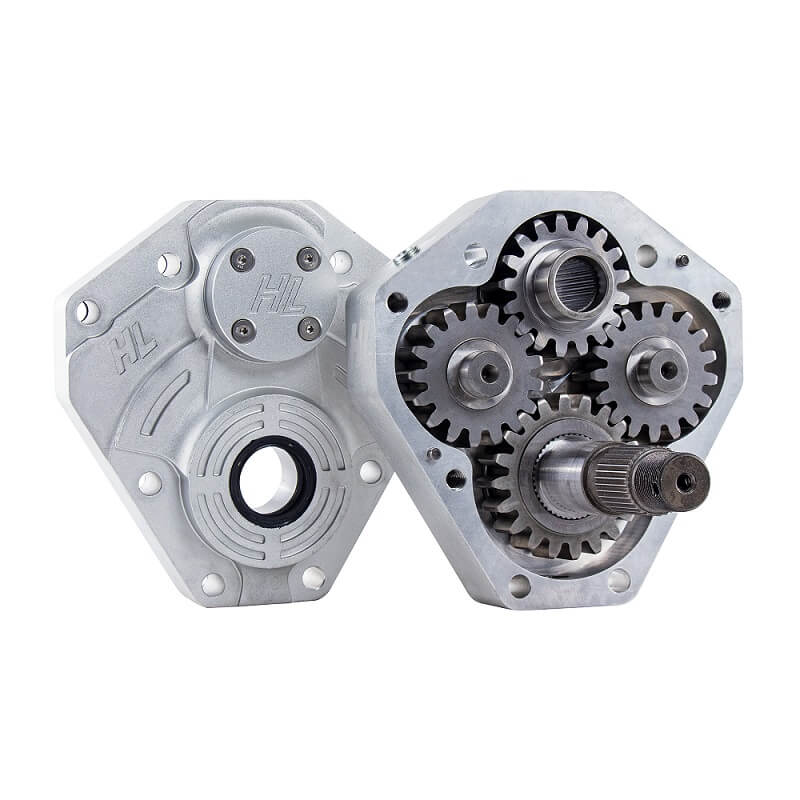

• The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
• More reliable torque transfer
• 15% or 30% gearing extends brake life by needing brakes less often due to greatly improved engine braking

Gear Box Features:

• Strongest boxes on the market because forging produces a tougher piece of metal
• Forging is stronger than both cast and billet aluminum
• Extremely robust and give you more worry-free miles
• Offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket and Seal Features:

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Creep resistant plus oil and coolant resistant
• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate Features:

• Strongest backing plates on the market
• 5/16” steel plate with bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with most control arms that are built to factory hub specifications

Rotor Features:

• Precision ground stainless steel rotors
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

Gear Features:

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

Optional Rotor Upgrade Kit Features:

• Requires 18" or larger wheels
• 18" wheels cannot exceed 4.5" backspacing
• 20" and larger wheels cannot exceed 5" backspacing
• Gives an additional 30% of leverage at the rotor
• Improves braking performance
• Gives more holding power at the wheel
• All components are designed for bolt-on replacement without modification
• (4) 13" precision ground stainless steel rotors
• (4) CNC precision machined caliper mounting brackets
• All mounting hardware and instructions included
