Honda Big Red Snow Plow System
Product Description

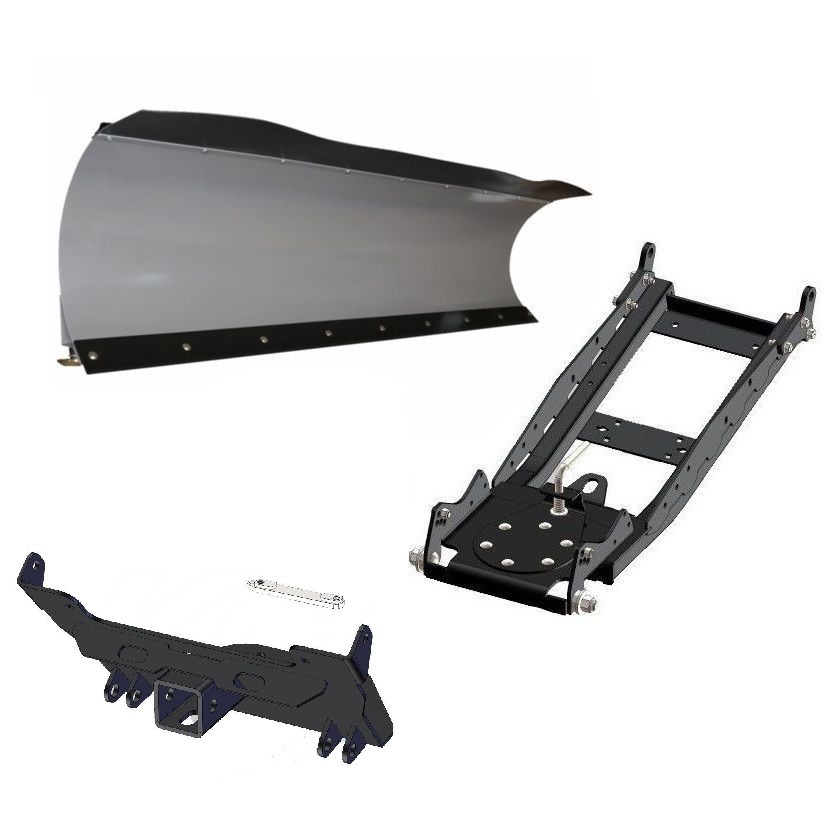

Transform your Honda Big Red into a trusty winter helper with the all-American KFI Snow Plow System! Built tough for heavy snowfall and those chilly winter days, this complete kit includes a durable Pro-S straight steel blade, the easy-to-use PRO 2.0 front-mount push tube, and a custom-matched mounting plate. The blade is made from sturdy 11-gauge steel with extra vertical ribs and gussets to handle heavy loads without a hitch. Standing 16 inches tall (or 21 inches on certain models with the included rubber flap), it’s equipped with a tough two-sided Grade 50 steel wear bar and skid plates for smooth operation. Finished in a sleek metallic silver powder coat and metal bead-blasted, it can angle up to 25 degrees left or right to clear even deep snow with ease.
Designed with high ground clearance and simplicity in mind, the front-mount push tube is built from heavy-duty 1-1/2-inch square steel tubing and offers over 30 inches of lift. With an easy-pull pin system, you can select from three main angling positions up to 25 degrees, plus six fine-tuning options at 5-degree intervals to perfect your scraping angle on any surface. The frame features durable 1/4-inch Grade 50 pivot bushings and a 6-inch POM rotator bushing, keeping everything moving smoothly and preventing binding or slop through tough use.
Securing the system to your machine is a tough front mount made from 100% Grade 50 steel, complete with a built-in 2-inch receiver for added versatility. Its tapered pin tabs help prevent hang-ups when off-road, even with the plow removed. Finished in a black bead-blasted and powder-coated coating for maximum resistance to rust, this all-USA-made kit includes all the hardware you need, step-by-step instructions, and a 2-year warranty from the manufacturer.
Designed with high ground clearance and simplicity in mind, the front-mount push tube is built from heavy-duty 1-1/2-inch square steel tubing and offers over 30 inches of lift. With an easy-pull pin system, you can select from three main angling positions up to 25 degrees, plus six fine-tuning options at 5-degree intervals to perfect your scraping angle on any surface. The frame features durable 1/4-inch Grade 50 pivot bushings and a 6-inch POM rotator bushing, keeping everything moving smoothly and preventing binding or slop through tough use.
Securing the system to your machine is a tough front mount made from 100% Grade 50 steel, complete with a built-in 2-inch receiver for added versatility. Its tapered pin tabs help prevent hang-ups when off-road, even with the plow removed. Finished in a black bead-blasted and powder-coated coating for maximum resistance to rust, this all-USA-made kit includes all the hardware you need, step-by-step instructions, and a 2-year warranty from the manufacturer.
- Fitment
- Features
- Important Info
- Reviews
- Contact an Expert
Fitment
- 2012 Honda Big Red 700 -
- 2011 Honda Big Red 700 -
- 2010 Honda Big Red 700 -
- 2009 Honda Big Red 700 -
Features
- Full kit includes: Plow blade, push tube and plow mount
Pro-S Straight Steel Blade Features:
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- Constructed of 11 gauge steel
- 3/16 inch Grade 50 ribbing for a strong bolt-up to the swivel tube
- Blade face vertical height measures 16 inches high, 21 inches high with snow flap
- Weight: 60 inch - 75 lbs, 66 inch - 81 lbs, 72 inch - 85 lbs
- Fully-adjustable blade skids with bolt-on brackets
- 2-sided 3/16 inch x 3.00 inch Grade 50 steel wear bar
- Wear bar attached with heavy duty Grade 8 bolts
- Heavy duty 3 inch diameter grade-50 steel skid plates
- 66 inch and 72 inch blades include a 7 inch high 2-ply top rubber flap
- Metal bead blasted before powder coating
- Metallic silver powder coat finish
- 2 year manufacturer's warranty
- Made in the USA
- 3 blade angle positions that rotate the blade up to 25 degrees
- Six 5 degree blade pitch adjustments
- Front mount design with 30+ inches of lift height
- Added 2.5 inches of overall length
- Multi-position plow lift bracket
- Easy-pull pin blade angle adjustment
- Improved manufacturing for easier install for all plow accessories
- Works with all KFI plows
- Heavy duty 1-1/2 inch 12 gauge square steel tubing
- Heavy duty 1/4 inch thick 1-1/2 inch diameter Grade 50 pivot bushings
- 6 inch diameter POM injection molded rotator bushing
- Metal bead blasted before powder coating
- Powder coated black for supreme durability
- Complete installation instructions and mounting hardware included
- 2 year manufacturer's warranty
- Made in the USA
- Front mount plow mount
- Plate constructed from grade 50 steel
- All pin tabs are constructed from 1/4 inch thick grade 50 steel
- All plow tabs are tapered to help reduce hang-ups while trail riding
- Metal bead blasted before they are powder coated black for the best possible finish prep
- All mounting hardware included
- Complete installation instructions included
- 100% made in the USA
Important Info
- Requires drilling for installation.
- Cannot ship outside the lower 48 states.
