Product Description
Transform your Kawasaki Mule Pro-FX, DX, or FXR into a true all-weather buddy with the American-made KFI Snow Plow System! Perfect for handling heavy winter snow, this kit has everything you need, including the sturdy Pro-S straight steel blade, the PRO 2.0 front-mount push tube, and a custom mounting plate just for your ride. The blade is built from durable 11-gauge steel, reinforced with 3/16-inch Grade 50 vertical ribbing and structural gussets to keep it super rigid against packed drifts. Standing 16 inches tall (and up to 21 inches on some models with the included rubber flap), it’s mounted with 3-inch Grade 50 skid plates and a double-sided Grade 50 steel wear bar, all secured with Grade 8 hardware. Plus, it’s bead-blasted and finished in sleek metallic silver powder coat and can angle up to 25 degrees left or right to keep your path clear.
For easy control and great ground clearance, the front-mount push tube is made from heavy-duty 1-1/2-inch 12-gauge square steel tubing, giving you over 30 inches of lift height. Adjusting the blade is a breeze with the simple easy-pull pin system, switch between three primary angles up to 25 degrees and fine-tune the scraping pitch with six 5-degree settings to match different surfaces. The frame features 1/4-inch Grade 50 pivot bushings and a 6-inch POM injection-molded rotator bushing, so you get smooth, reliable rotation without slop or binding, even if things get tough.
To keep your plow securely attached, the custom front mount is made from 100% Grade 50 steel and includes a built-in 2-inch receiver for additional versatility. Its 1/4-inch pin tabs are tapered to prevent trail hang-ups when you’re off-roading without the plow. Painted in a tough black bead-blasted finish with a powder coat for extra corrosion resistance, this complete, USA-made system comes with all the hardware you’ll need, clear instructions, and a 2-year manufacturer warranty.
For easy control and great ground clearance, the front-mount push tube is made from heavy-duty 1-1/2-inch 12-gauge square steel tubing, giving you over 30 inches of lift height. Adjusting the blade is a breeze with the simple easy-pull pin system, switch between three primary angles up to 25 degrees and fine-tune the scraping pitch with six 5-degree settings to match different surfaces. The frame features 1/4-inch Grade 50 pivot bushings and a 6-inch POM injection-molded rotator bushing, so you get smooth, reliable rotation without slop or binding, even if things get tough.
To keep your plow securely attached, the custom front mount is made from 100% Grade 50 steel and includes a built-in 2-inch receiver for additional versatility. Its 1/4-inch pin tabs are tapered to prevent trail hang-ups when you’re off-roading without the plow. Painted in a tough black bead-blasted finish with a powder coat for extra corrosion resistance, this complete, USA-made system comes with all the hardware you’ll need, clear instructions, and a 2-year manufacturer warranty.
- Fitment
- Features
- Important Info
- Reviews
- Contact an Expert
Fitment
- 2025 Kawasaki Mule PRO-DX EPS
- 2025 Kawasaki Mule Pro-DXT EPS
- 2025 Kawasaki Mule Pro-DXT FE EPS
- 2025 Kawasaki Mule PRO-FX 1000 HD Edition
- 2025 Kawasaki Mule PRO-FX 820 EPS
- 2025 Kawasaki Mule PRO-FXR 1000 -
- 2025 Kawasaki Mule PRO-FXR 1000 LE
- 2025 Kawasaki Mule PRO-FXT 1000 LE
- 2025 Kawasaki Mule PRO-FXT 1000 LE Camo
- 2025 Kawasaki Mule PRO-FXT 1000 LE Ranch
- 2025 Kawasaki Mule PRO-FXT 1000 Platinum Ranch
- 2024 Kawasaki Mule PRO-DXT FE DSL EPS
- 2024 Kawasaki Mule PRO-FX 1000 HD Edition
- 2024 Kawasaki Mule PRO-FXR 1000 -
- 2024 Kawasaki Mule PRO-FXR 1000 LE
- 2024 Kawasaki Mule PRO-FXT 1000 LE
- 2024 Kawasaki Mule PRO-FXT 1000 LE Camo
- 2024 Kawasaki Mule PRO-FXT 1000 LE Ranch
- 2024 Kawasaki Mule PRO-FXT 1000 Platinum Ranch
- 2023 Kawasaki Mule Pro-DXT EPS FE
- 2023 Kawasaki Mule Pro-FX -
- 2023 Kawasaki Mule Pro-FX EPS
- 2023 Kawasaki Mule Pro-FX EPS LE
- 2023 Kawasaki Mule Pro-FXR -
- 2023 Kawasaki Mule Pro-FXT -
- 2023 Kawasaki Mule Pro-FXT EPS
- 2023 Kawasaki Mule Pro-FXT EPS Camo
- 2023 Kawasaki Mule Pro-FXT EPS LE
- 2023 Kawasaki Mule Pro-FXT Ranch Edition
- 2023 Kawasaki Mule Pro-FXT Ranch Edition Platinum
- 2022 Kawasaki Mule Pro-DX EPS
- 2022 Kawasaki Mule Pro-DXT -
- 2022 Kawasaki Mule Pro-DXT EPS
- 2022 Kawasaki Mule Pro-DXT EPS FE
- 2022 Kawasaki Mule Pro-FX -
- 2022 Kawasaki Mule Pro-FX EPS
- 2022 Kawasaki Mule Pro-FX EPS LE
- 2022 Kawasaki Mule Pro-FXR -
- 2022 Kawasaki Mule Pro-FXT -
- 2022 Kawasaki Mule Pro-FXT EPS
- 2022 Kawasaki Mule Pro-FXT EPS Camo
- 2022 Kawasaki Mule Pro-FXT EPS LE
- 2022 Kawasaki Mule Pro-FXT Ranch Edition
- 2022 Kawasaki Mule Pro-FXT Ranch Edition Platinum
- 2021 Kawasaki Mule Pro-DX EPS
- 2021 Kawasaki Mule PRO-DXT -
- 2021 Kawasaki Mule Pro-DXT EPS
- 2021 Kawasaki Mule Pro-DXT EPS FE
- 2021 Kawasaki Mule Pro-FX -
- 2021 Kawasaki Mule Pro-FX EPS
- 2021 Kawasaki Mule Pro-FX EPS LE
- 2021 Kawasaki Mule Pro-FXR -
- 2021 Kawasaki Mule Pro-FXT -
- 2021 Kawasaki Mule Pro-FXT EPS
- 2021 Kawasaki Mule PRO-FXT EPS Camo
- 2021 Kawasaki Mule Pro-FXT EPS LE
- 2021 Kawasaki Mule Pro-FXT Ranch Edition
- 2020 Kawasaki Mule Pro-DX -
- 2020 Kawasaki Mule PRO-DXT -
- 2020 Kawasaki Mule Pro-DXT EPS
- 2020 Kawasaki Mule Pro-FX -
- 2020 Kawasaki Mule Pro-FX EPS
- 2020 Kawasaki Mule Pro-FX EPS LE
- 2020 Kawasaki Mule Pro-FXR -
- 2020 Kawasaki Mule Pro-FXT -
- 2020 Kawasaki Mule Pro-FXT EPS
- 2020 Kawasaki Mule Pro-FXT EPS LE
- 2020 Kawasaki Mule Pro-FXT Ranch Edition
- 2019 Kawasaki Mule Pro-DX -
- 2019 Kawasaki Mule Pro-DX EPS LE
- 2019 Kawasaki Mule Pro-DXT EPS
- 2019 Kawasaki Mule Pro-FX -
- 2019 Kawasaki Mule Pro-FX EPS
- 2019 Kawasaki Mule Pro-FX EPS LE
- 2019 Kawasaki Mule Pro-FXR -
- 2019 Kawasaki Mule Pro-FXT -
- 2019 Kawasaki Mule Pro-FXT EPS
- 2019 Kawasaki Mule Pro-FXT EPS LE
- 2019 Kawasaki Mule Pro-FXT Ranch Edition
- 2018 Kawasaki Mule Pro-DX -
- 2018 Kawasaki Mule Pro-DX EPS
- 2018 Kawasaki Mule Pro-DX EPS LE
- 2018 Kawasaki Mule PRO-DXT -
- 2018 Kawasaki Mule Pro-DXT EPS
- 2018 Kawasaki Mule Pro-DXT EPS LE
- 2018 Kawasaki Mule Pro-FX -
- 2018 Kawasaki Mule Pro-FX EPS
- 2018 Kawasaki Mule Pro-FX EPS LE
- 2018 Kawasaki Mule Pro-FX Ranch Edition
- 2018 Kawasaki Mule Pro-FXR -
- 2018 Kawasaki Mule Pro-FXT -
- 2018 Kawasaki Mule Pro-FXT EPS
- 2018 Kawasaki Mule Pro-FXT EPS LE
- 2018 Kawasaki Mule Pro-FXT Ranch Edition
- 2017 Kawasaki Mule Pro-DX -
- 2017 Kawasaki Mule Pro-DX EPS
- 2017 Kawasaki Mule Pro-DX EPS LE
- 2017 Kawasaki Mule PRO-DXT -
- 2017 Kawasaki Mule Pro-DXT EPS
- 2017 Kawasaki Mule Pro-DXT EPS LE
- 2017 Kawasaki Mule Pro-FX -
- 2017 Kawasaki Mule Pro-FX EPS
- 2017 Kawasaki Mule Pro-FX EPS LE
- 2017 Kawasaki Mule Pro-FXT -
- 2017 Kawasaki Mule Pro-FXT EPS
- 2017 Kawasaki Mule Pro-FXT EPS LE
- 2017 Kawasaki Mule Pro-FXT Ranch Edition
- 2016 Kawasaki Mule Pro-DX -
- 2016 Kawasaki Mule Pro-DX EPS
- 2016 Kawasaki Mule Pro-DX EPS LE
- 2016 Kawasaki Mule Pro-DXT -
- 2016 Kawasaki Mule Pro-DXT EPS
- 2016 Kawasaki Mule Pro-DXT EPS LE
- 2016 Kawasaki Mule Pro-FX -
- 2016 Kawasaki Mule Pro-FX EPS
- 2016 Kawasaki Mule Pro-FX EPS LE
- 2016 Kawasaki Mule Pro-FXT -
- 2016 Kawasaki Mule Pro-FXT EPS
- 2016 Kawasaki Mule Pro-FXT EPS LE
- 2016 Kawasaki Mule Pro-FXT Ranch Edition
- 2015 Kawasaki Mule Pro-FXT -
- 2015 Kawasaki Mule Pro-FXT EPS
- 2015 Kawasaki Mule Pro-FXT EPS LE
Features

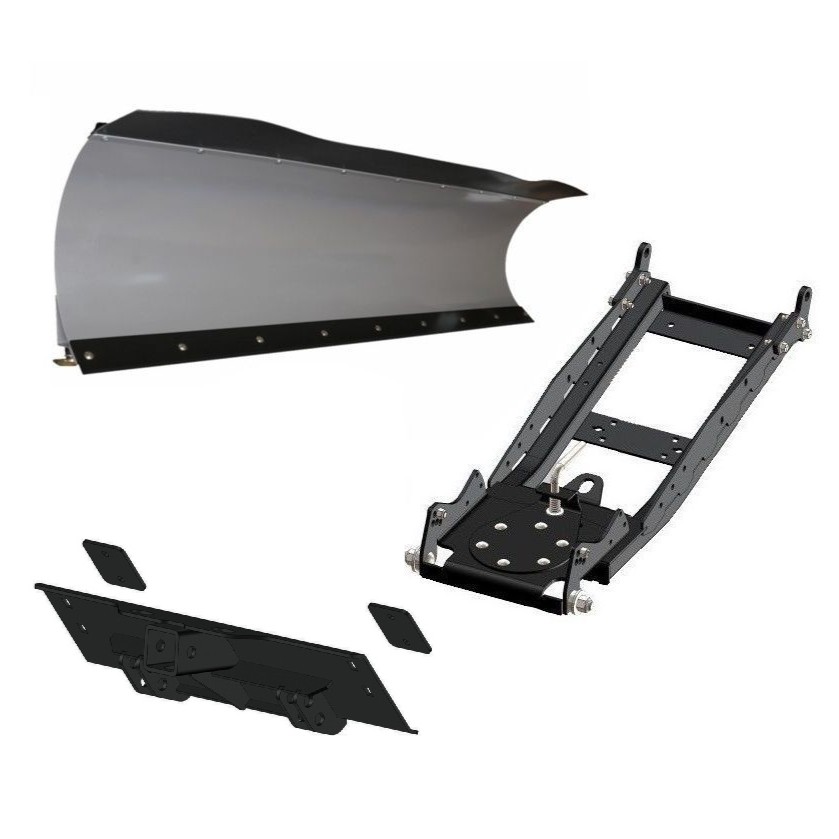

- Full kit includes: Plow blade, push tube and plow mount
Pro-S Straight Steel Blade Features:
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- Constructed of 11 gauge steel
- 3/16 inch Grade 50 ribbing for a strong bolt-up to the swivel tube
- Blade face vertical height measures 16 inches high, 21 inches high with snow flap
- Weight: 60 inch - 75 lbs, 66 inch - 81 lbs, 72 inch - 85 lbs
- Fully-adjustable blade skids with bolt-on brackets
- 2-sided 3/16 inch x 3.00 inch Grade 50 steel wear bar
- Wear bar attached with heavy duty Grade 8 bolts
- Heavy duty 3 inch diameter grade-50 steel skid plates
- 66 inch and 72 inch blades include a 7 inch high 2-ply top rubber flap
- Metal bead blasted before powder coating
- Metallic silver powder coat finish
- 2 year manufacturer's warranty
- Made in the USA
- 3 blade angle positions that rotate the blade up to 25 degrees
- Six 5 degree blade pitch adjustments
- Front mount design with 30+ inches of lift height
- Added 2.5 inches of overall length
- Multi-position plow lift bracket
- Easy-pull pin blade angle adjustment
- Improved manufacturing for easier install for all plow accessories
- Works with all KFI plows
- Heavy duty 1-1/2 inch 12 gauge square steel tubing
- Heavy duty 1/4 inch thick 1-1/2 inch diameter Grade 50 pivot bushings
- 6 inch diameter POM injection molded rotator bushing
- Metal bead blasted before powder coating
- Powder coated black for supreme durability
- Complete installation instructions and mounting hardware included
- 2 year manufacturer's warranty
- Made in the USA
- Front lower plow mount allows for easy attachment and removal of the plow
- Integrated 2-inch lower receiver for versatile functionality
- Plate constructed from 3/16-inch-thick grade 50 steel
- All pin tabs are constructed from 1/4-inch-thick grade 50 steel
- All plow tabs are tapered to help reduce hang-ups while trail riding
- Metal bead blasted before they are powder coated for the best possible finish prep
- Powder coated black for supreme durability
- Uses two standard 5/8-inch hitch pins for secure connection (comes with push tubes)
- Complete installation instructions and all mounting hardware included
- Made in the USA
Important Info
- Requires drilling.
- Cannot ship outside the lower 48 states.
