66" Plow System for Yamaha YXZ 1000

NOTES:
- CANNOT SHIP TO ALASKA OR HAWAII.
- Must have a winch to use plow system.


Applicability: 2017-21 Yamaha YXZ1000R and YXZ1000R SS


It's official, winter has hit, and snow is coming down. We all know what that means; it's time to kick up the powdery bliss offroad style. Wait, before you start breaking-bad in a winter wonderland, you're going to need to clear a path. Investing in a YXZ 1000R snowplow system is a great way to work efficiently and quickly, leaving more time for the fun stuff. One favorite amongst the lot is the Denali 66 Inch Standard Snow Plow System because of the convenient removal and attachment push tube design. You go from plowing to playing in minutes. Now, who's ready to check out this blade?

Denali forms the UTV snowplow blade in a curved formation from heavy-duty steel. They've integrated several ribs that run the blade's length with three horizontal bars to increase stability. It's sporting adjustable skid feet too, which offers improved height and angle movement. Talk about getting an efficient performance regardless of the surface area. The Yamaha snowplow system also comes with outstanding upgrade options from the box ends to hydroturn. We know it's a lot to take in, so be sure to give us a call with questions, or you can click to order now.


Blade Specifications:

• 19" scoop

• 11 gauge steel leading horizontal supports

• Four 7 gauge ribs run the full length of the blade

• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade

• 65 degree attack angle and over center design ensures snow rolls up and is thrown forward

• Replaceable 7 gauge, grade 50 steel wear bar

• Height and angle adjustable skid feet included

• Center mounted plow disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact

• 3 year warranty

Push Tube Specifications:

• Impact resistant reinforced pivot assembly

• Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees, 12.5 degrees and 25 degrees

• Simple detachment systems with the pull of a pin

• Structural tube steel cross bar for added lateral rigidity

Plow Mount Specifications:

• Front mount
• 100% laser cut 1/4 inch steel

• Slotted holes allow blade to hug the ground

Optional Rubber Flap Upgrade Specifications:

• Stiff rubber flap

• Metal hold down bar

• Installation hardware

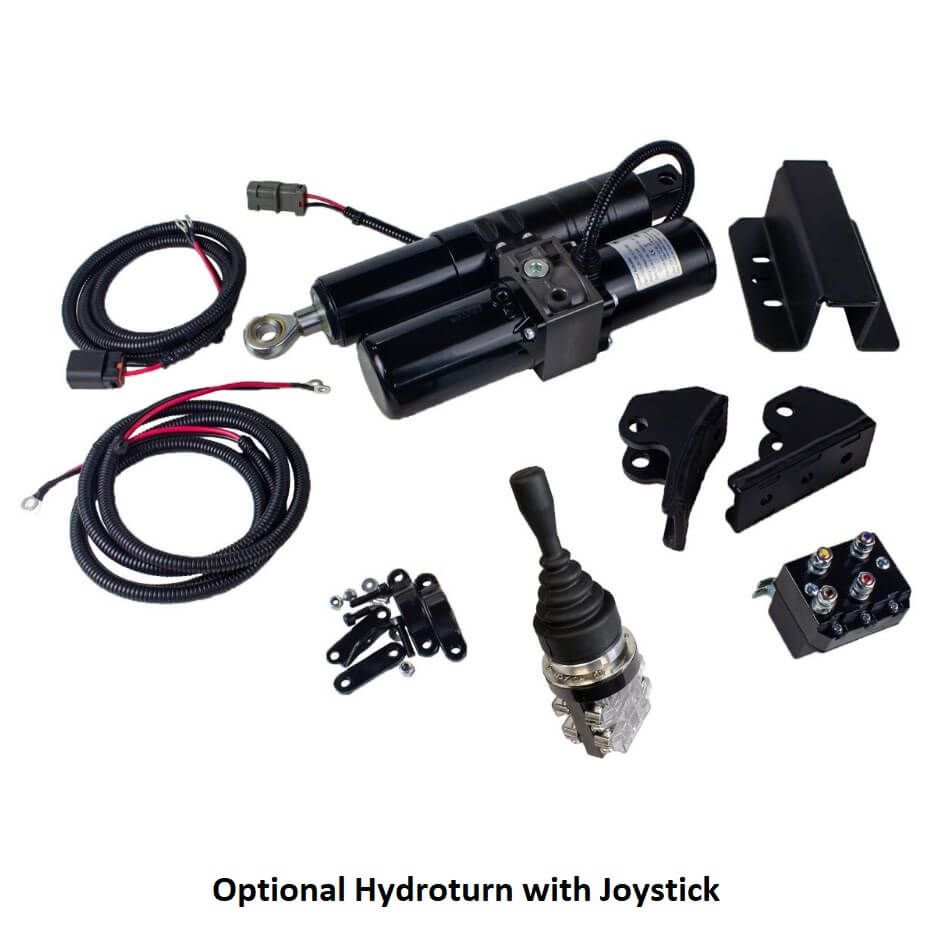

Optional Hydroturn Specifications:

• Parker hydraulics system with built in relief valve overload protection

• Hydraulic system is completely sealed for life

• Full radius turn in just 5 seconds while driving

• Heavy duty chrome plated 3/4 inch cylinder shafts

• Two bolt installation of hydraulic cylinder and pump

• No modifications necessary

• Wire harness utilizes weatherproof connectors

• Backwards compatible with manual turning system

• Overload protection of 4,000 lbs. of extension force and 3,500 lbs. of retraction force

• Includes 3 year warranty

Optional Extended Length Push Tube:
Choose the push tube length that you need to fit your needs. If you have tracks, then choose the extended push tube to get the snow plow further out, giving you more room for the tracks to work without interference.


Optional Plow Markers:
Snow getting high or need to plow close to vehicles or other items? Get the snow plow markers so you can see exactly where the edge of your blade is, letting you have the most control.


Optional Plow Pulley Fairlead Kit:
The Snow Plow Pulley Fairlead Kit is designed specifically to resist wear from the steep angle that occurs between the fairlead and the plow, extending the life of your winch cable. It can be used with either a steel or synthetic cable and is constructed of black powder coated 7 gauge steel. There are two roller heights for different fairlead heights and angles and you'll receive hardware and instructions.

• Standard spool pattern: 3" x 4-7/8"
• Wide spool pattern: 3" x 6.67"

Optional Box Ends:
If you want to keep the snow from rolling our the sides of your Denali snow plow, get the box ends right here. These are 1/4" thick steel and include height and andle adjustable skid foot brackets. All the necessary installation instructions and hardware are included also.


Optional Additional Wearbar:
If you want to keep the edges of your snow plow in top shape the Denali Polyurethane Wearbar is the choice for you. Not only is the wearbar reversible for longer use, but the polyurethane construction outlasts rubber and steel. The wearbar won't cause damage to brick, concrete, curbs and more! The wearbar is the perfect choice to increase productivity and reduce equipment wear.


Optional Pushtube Lift Kits:
When your UTV has those monster tires or that beastly lift kit on it, using a snow plow in the winter can be a pain. Finding a solution that solves the problem of your pushtube matching the height of your machine can mean complete removal of your tires or lift. With the Denali Pushtube Lift Kit installed, you can keep your tires and lift kit on, while giving Jack Frost the boot! This Pushtube Lift Kit bolts directly to your existing Denali UTV Pushtube giving an easy install, the 2 inch lift will give you 13-15 inches off the ground, and the 4 inch will give you 15-17, all while meeting your snow plow needs!
