2017-21 Can Am Defender Max High Lifter 15% Dual Idler 4 Inch Portal Gear Lift

Ships in 1-2 business days *SHARED SHIPPING*
Item #: 73-14453
Brand: High Lifter
$3,955.00
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

Your Can-Am Defender Max craves the ultimate lift– High Lifter's 4" Portal Gear Lift is the answer.

Give your Can-Am Defender Max the ground clearance and unstoppable torque it deserves with the High Lifter 15% Dual Idler 4 Inch Portal Gear Lift. This premium kit is a must-have if you're serious about tackling the toughest mud holes and most challenging terrain.

Key Features and Benefits:

  • Massive Ground Clearance: Gain 4 inches of true lift and fit ridiculously large tires. No more belly dragging!
  • Unmatched Mud Capability: 15% gear reduction gives you low-end grunt to power through the thickest mud.
  • Innovative Dual Idler Design: Reduces stress on gears for longer-lasting performance and fewer breakdowns.
  • Built to Last: High Lifter's reputation for top-quality parts means you can ride hard with confidence.
  • Bolt-on Installation: Get the lift you need without custom fabrication nightmares.

Frequently Asked Questions:

  • Will this fit my Can-Am Defender Max? Yes, this kit is designed for Can-Am Defender Max models lilsted on the fitment tab.
  • What size tires can I run? This lift gives you the clearance to go big! Consult tire and wheel fitment guides and measure to be sure.
  • Is installation difficult? Designed for bolt-on installation with clear instructions, but mechanical experience is helpful.

Say goodbye to getting stuck and hello to beast-mode mudding! Order your High Lifter 15% Dual Idler 4 Inch Portal Gear Lift and unleash your Defender Max's true potential.

Fitment

  • 2021 Can-Am Defender Max HD10 DPS
  • 2021 Can-Am Defender Max HD10 Lone Star
  • 2021 Can-Am Defender Max HD10 X mr
  • 2021 Can-Am Defender Max HD10 XT
  • 2021 Can-Am Defender Max HD8 -
  • 2021 Can-Am Defender Max HD8 DPS
  • 2021 Can-Am Defender Max HD8 XT
  • 2021 Can-Am Defender HD10 PRO DPS
  • 2021 Can-Am Defender HD10 PRO XT
  • 2020 Can-Am Defender Max HD10 DPS
  • 2020 Can-Am Defender Max HD10 XT
  • 2020 Can-Am Defender Max HD10 XT Cab
  • 2020 Can-Am Defender Max HD10 Lone Star
  • 2020 Can-Am Defender Max HD10 X mr
  • 2020 Can-Am Defender Max HD8 DPS
  • 2020 Can-Am Defender Max HD8 XT
  • 2020 Can-Am Defender Max HD8 -
  • 2020 Can-Am Defender HD10 PRO XT
  • 2020 Can-Am Defender HD10 PRO DPS
  • 2019 Can-Am Defender Max HD10 DPS
  • 2019 Can-Am Defender Max HD10 XT
  • 2019 Can-Am Defender Max HD10 XT Cab
  • 2019 Can-Am Defender Max HD10 Lone Star
  • 2019 Can-Am Defender Max HD8 DPS
  • 2019 Can-Am Defender Max HD8 XT
  • 2019 Can-Am Defender Max HD8 -
  • 2018 Can-Am Defender Max HD10 DPS
  • 2018 Can-Am Defender Max HD10 XT
  • 2018 Can-Am Defender Max HD10 XT Cab
  • 2018 Can-Am Defender Max HD8 DPS
  • 2018 Can-Am Defender Max HD8 XT
  • 2018 Can-Am Defender Max HD8 -
  • 2018 Can-Am Defender Max HD10 Lone Star
  • 2017 Can-Am Defender Max HD10 DPS
  • 2017 Can-Am Defender Max HD10 XT
  • 2017 Can-Am Defender Max HD8 DPS
  • 2017 Can-Am Defender Max HD8 XT

Features

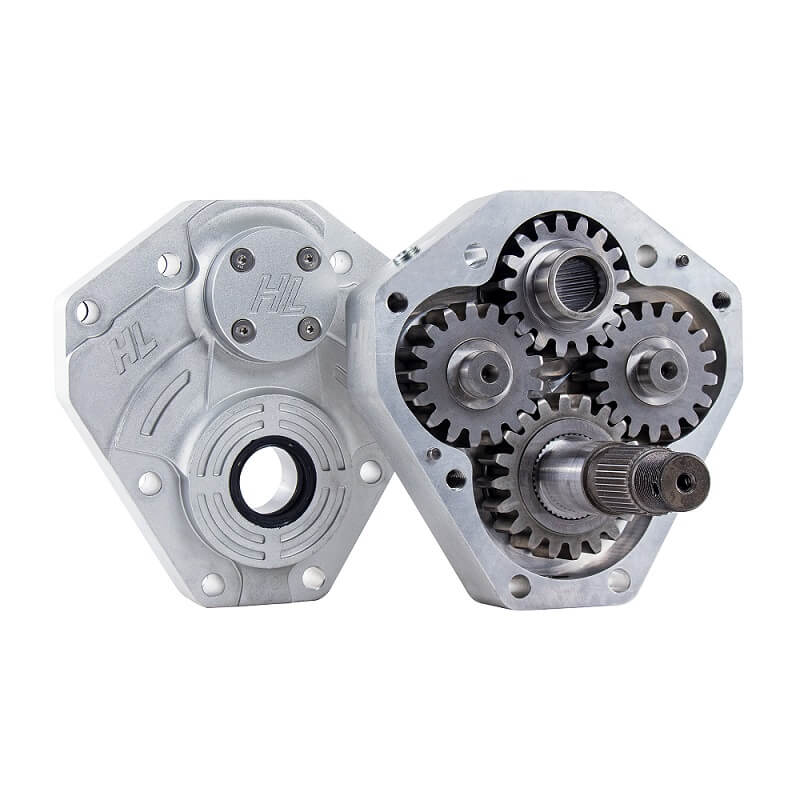

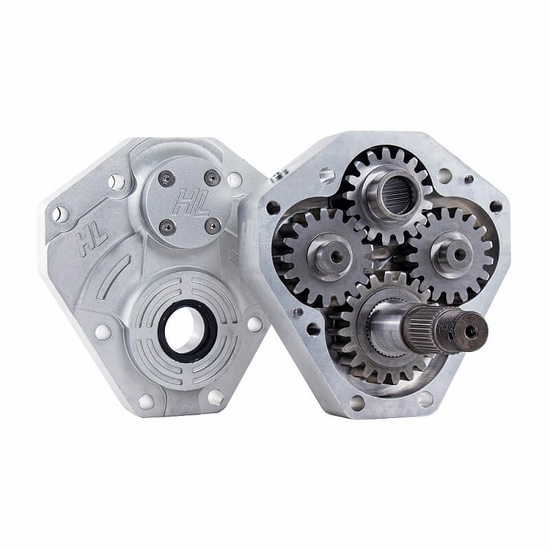

  • The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
  • More reliable torque transfer
  • 15% gearing extends brake life by needing brakes less often due to greatly improved engine braking

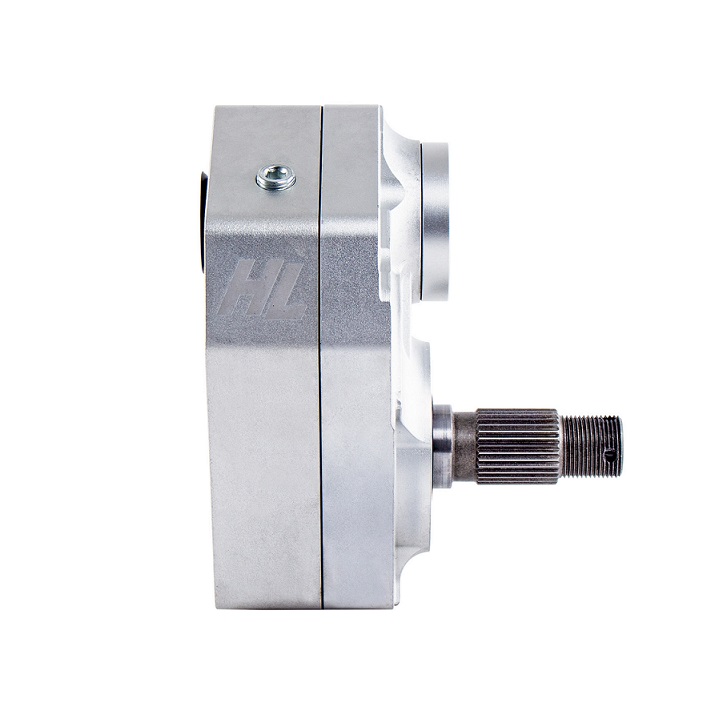

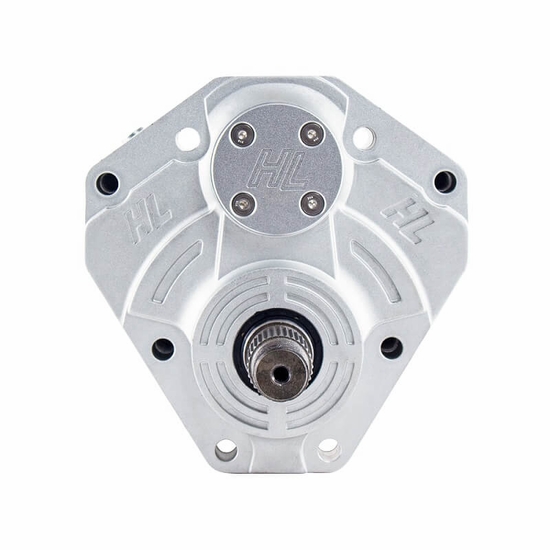

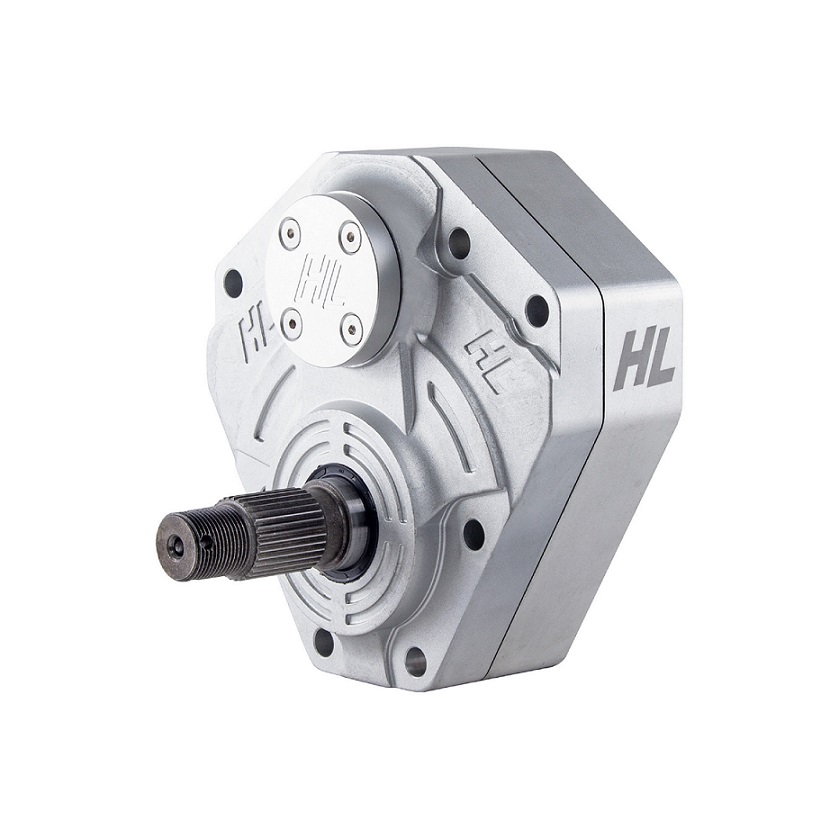

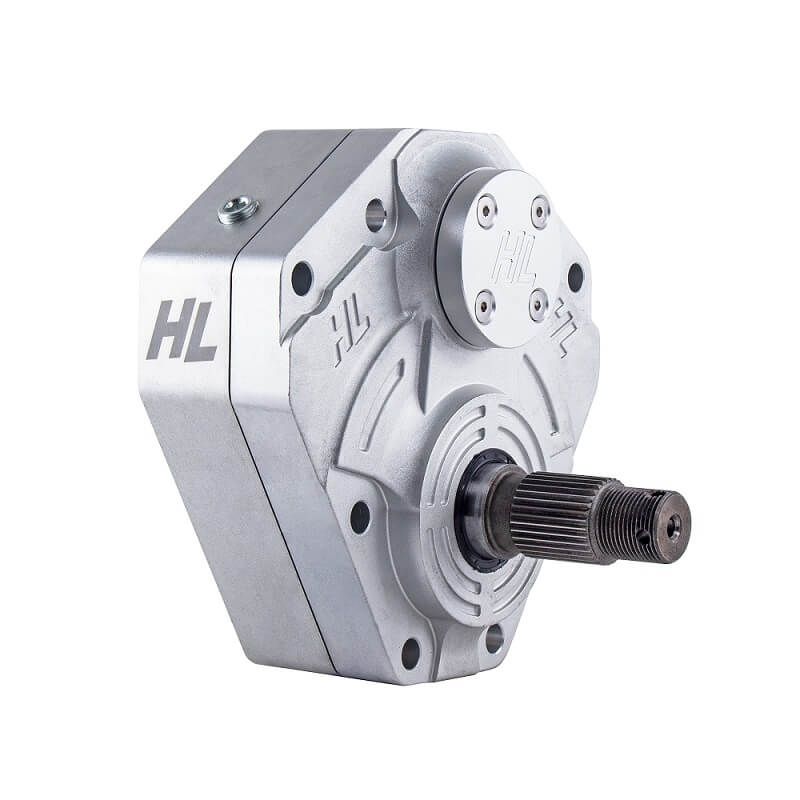

Gear Box:
  • Strongest boxes on the market because forging produces a tougher piece of metal
  • Forging is stronger than both cast and billet aluminum
  • Extremely robust and give you more worry-free miles
  • Offers a plug for venting with an optional easy to install kit that will be available soon
  • Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket and Seal:
  • High density Kevlar fiber gaskets plus no additional sealant is needed
  • Creep resistant plus oil and coolant resistant

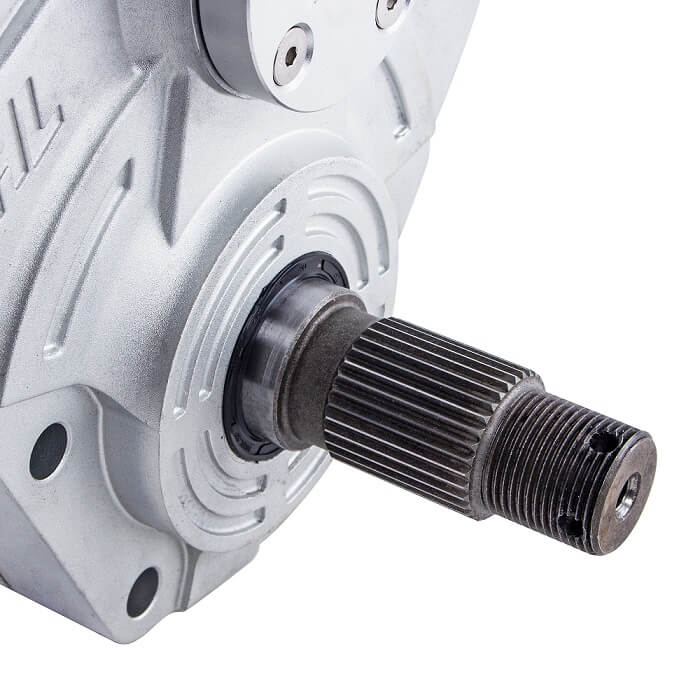

  • Two oil seals on the spindle shaft for 100% more sealing area
  • Dual seals prevent water intrusion and oil leaks
  • True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

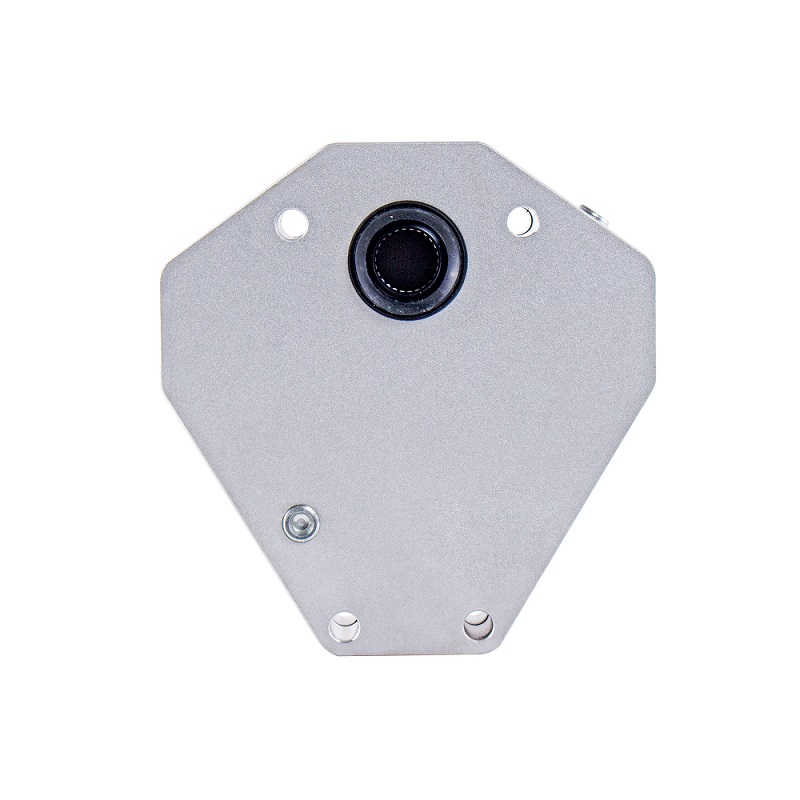

Backing Plate:
  • Strongest backing plates on the market
  • 5/16” steel plate with bent flanges for strength and durability
  • Welded gusset brackets and designed to factory off-set
  • Works with most control arms that are built to factory hub specifications

Rotor:
  • Precision ground stainless steel rotors
  • Access holes for ease of assembly and disassembly
  • Slotted rotor allows for heat dissipation and cooling

Gear:
  • Alloy steel heat treating process increases overall internal and external strength
  • CNC precision ground machining ensures excellent fitment and increased strength
  • Controlled gear lapping for ease of installation and a quieter performance


Videos

Important Info

  • Ships UPS ground in multiple boxes.
  • Requires 14 inch or larger wheels.
  • 14 inch factory wheels require 1 inch wheel spacers.
  • 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.
