Polaris RZR RS1 15% Dual Idler 4 Inch Portals

High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1 - alt image 0
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1 - alt image 1
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1 - alt image 2
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1 - alt image 3
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1 - alt image 4
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1
High Lifter 15% Dual Idler 4 Inch Portal Gear Lift - Polaris RZR RS1

Polaris RZR RS1 15% Dual Idler 4 Inch Portals

Ships within 2-4 weeks *SHARED SHIPPING*
Item #: 73-16587
Brand: High Lifter
$3,955.00
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

Benefits of a dual idler UTV portals

Polaris RZR RS1 portal gear lifts come with several benefits. From gaining ground clearance to extending brake life, the UTV portals improve ride quality and machine performance. The dual system has double the amount of teeth, allowing load to spread more effectively across the gears. This results in significantly better engine braking which lessens the need to hit the brakes as often. Finally, torque performance is massively increased.

Built for battle construction

High Lifter uses high-quality materials to manufacture the RS1 portals using cutting-edge technology for precision. Both the gear box and back plate are questionably some of the toughest on the market. They are met with precision ground stainless steel rotors and heat-treated alloy steel gears. Its build is corrosion and rust-resistant, backed by a High Lifter's limited lifetime warranty.

More ground clearance, larger obstacles

Beyond the improvement to torque performance, the portals for RZR RS1s provides 4-inches of ground clearance gains. The UTV portals attach at the hub, so unlike traditional suspension, doesn't require re-angling axles or other parts. This allows riders to skate over larger obstacles and tackle larger bounty holes.



Shared Shipping Program: You pay $40.00 shipping/handling and Side By Side Stuff will pay the rest.

Fitment

  • 2018-22 Polaris RZR RS1

Features

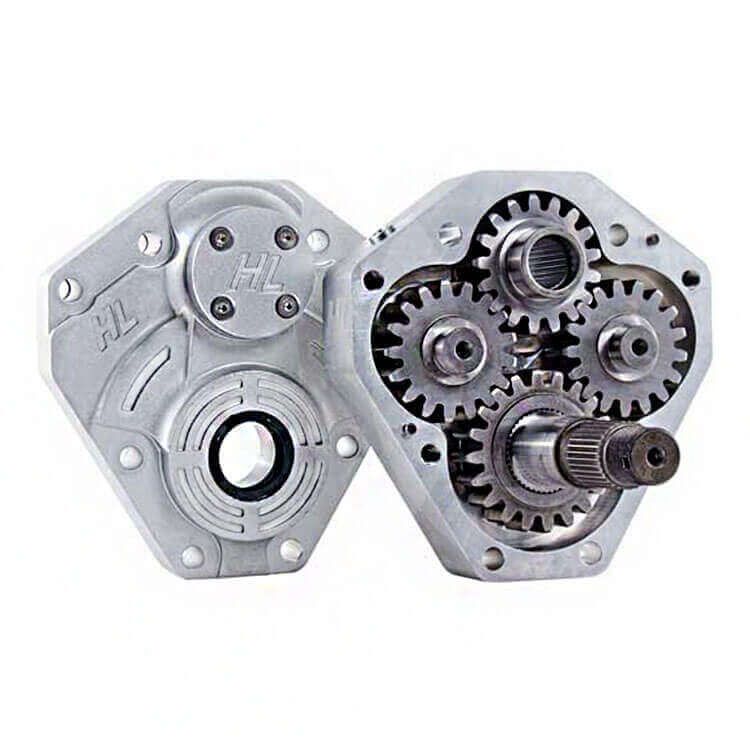

  • The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
  • More reliable torque transfer
  • 15% gearing extends brake life by needing brakes less often due to greatly improved engine braking
Gear Box Features:
  • Strongest boxes on the market because forging produces a tougher piece of metal
  • Forging is stronger than both cast and billet aluminum
  • Extremely robust and give you more worry-free miles
  • Offers a plug for venting with an optional easy to install kit that will be available soon
  • Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket and Seal Features:
  • High density Kevlar fiber gaskets plus no additional sealant is needed
  • Creep resistant plus oil and coolant resistant
  • Two oil seals on the spindle shaft for 100% more sealing area
  • Dual seals prevent water intrusion and oil leaks
  • True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate Features:
  • Strongest backing plates on the market
  • 5/16 inch steel plate with bent flanges for strength and durability
  • Welded gusset brackets and designed to factory off-set
  • Works with most control arms that are built to factory hub specifications
Rotor Features:
  • Precision ground stainless steel rotors
  • Access holes for ease of assembly and disassembly
  • Slotted rotor allows for heat dissipation and cooling
Gear Features:
  • Alloy steel heat treating process increases overall internal and external strength
  • CNC precision ground machining ensures excellent fitment and increased strength
  • Controlled gear lapping for ease of installation and a quieter performance


Important Info

  • Ships UPS ground in multiple boxes.

 View Installation Instructions
 View Warranty Information
