Polaris General XP 1000 High Lifter 30% Dual Idler 4 Inch Portal Gear Lift
SSL Secure and
Privacy Guaranteed
SSL Secured
Expert Support
Product Description
Take Your Polaris General XP 1000 Off-Road Performance to New Heights with This Powerful Gear Lift
Upgrade your General with incredible capabilities - this High Lifter 30% Dual Idler 4 Inch Portal Gear Lift is a game changer for off-road domination.
- Gain an instant 5-7 inches of ground clearance to conquer rocky trails and deep ruts
- Experience dramatically increased approach and departure angles to tackle steep obstacles
- Enjoy smoother low-speed technical driving with enhanced gear reduction and engine braking
- Rely on robust forged gear boxes, sealed bearings, and triple shaft seals for worry-free durability
With innovative dual idler gear design, this portal gear lift significantly reduces stress on gear teeth, transferring torque more smoothly and reliably. The stout 5/16" steel backing plate and welded brackets provide unmatched strength to handle hardcore use.
Take on the toughest terrain and steepest hills without compromise. This gear lift transforms your General into an unstoppable off-road machine. Gain incredible clearance, maximize your approach angle, and crawl over obstacles with total confidence and control.
Engineered to withstand intense riding, this gear lift is built from quality materials like heat-treated alloy steel gears, stainless steel rotors, and creep-resistant Kevlar gaskets. Expect reliable performance ride after ride.
Ready to take your General XP 1000 off-roading to the next level? This High Lifter 30% Dual Idler 4 Inch Portal Gear Lift gives you the upgraded capability you need to drive harder, go further, and have way more fun on the trails.
Shared Shipping Program: You pay $25.00 shipping/handling and Side By Side Stuff will pay the rest.
Fitment
- 2024 Polaris General XP 1000 Sport
- 2024 Polaris General XP 1000 Ultimate
- 2024 Polaris General XP 1000 Premium
- 2023 Polaris General XP 1000 Sport
- 2023 Polaris General XP 1000 Premium
- 2023 Polaris General XP 1000 Ultimate
- 2022 Polaris General XP 1000 Deluxe
- 2022 Polaris General XP 1000 Deluxe Ride Command
- 2022 Polaris General XP 1000 Trailhead Edition
- 2022 Polaris General XP 1000 Troy Lee Designs Edition
- 2021 Polaris General XP 1000 Deluxe
- 2021 Polaris General XP 1000 Pursuit Edition
- 2020 Polaris General XP 1000 Deluxe
Features

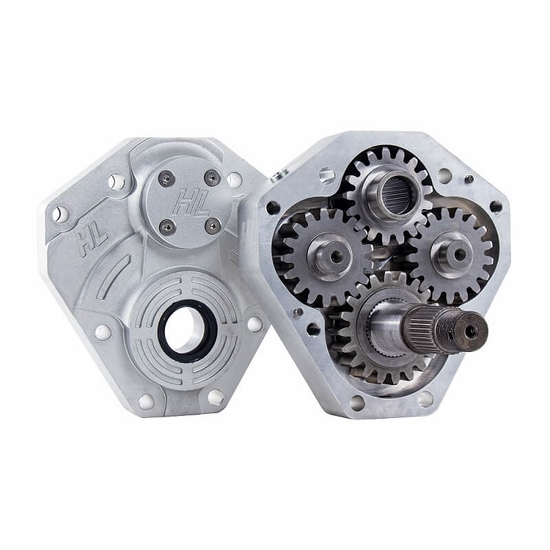

- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
- More reliable torque transfer
- 30% gearing extends brake life by needing brakes less often due to greatly improved engine braking

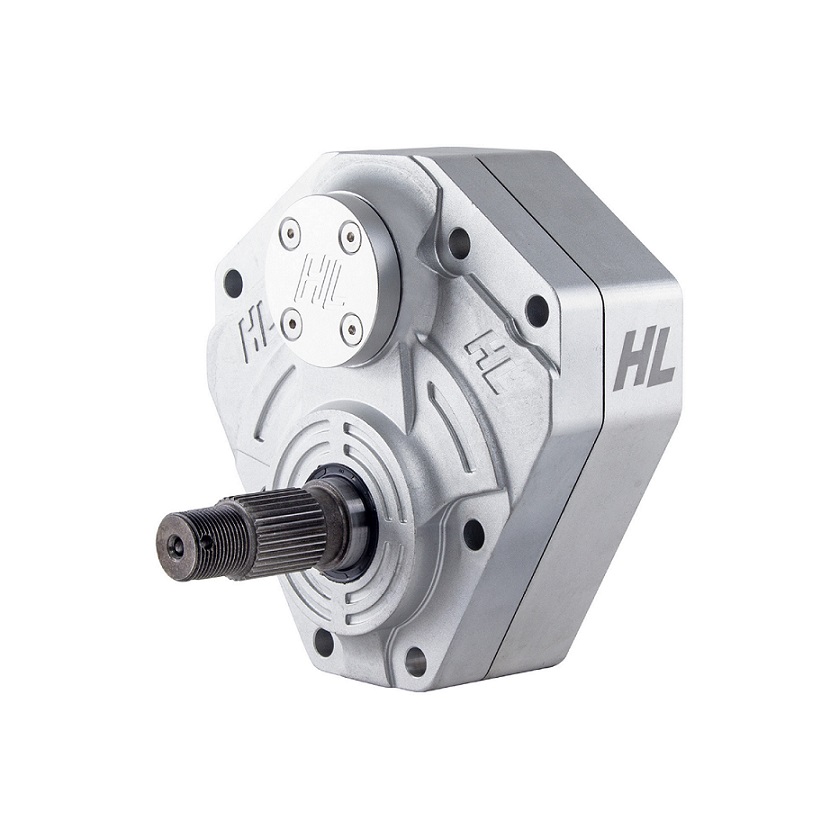

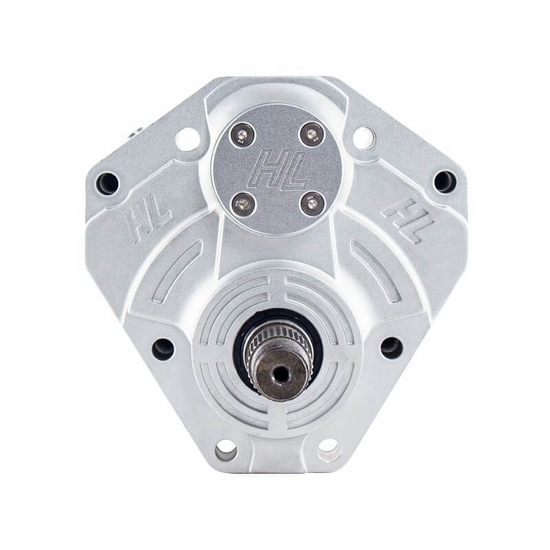

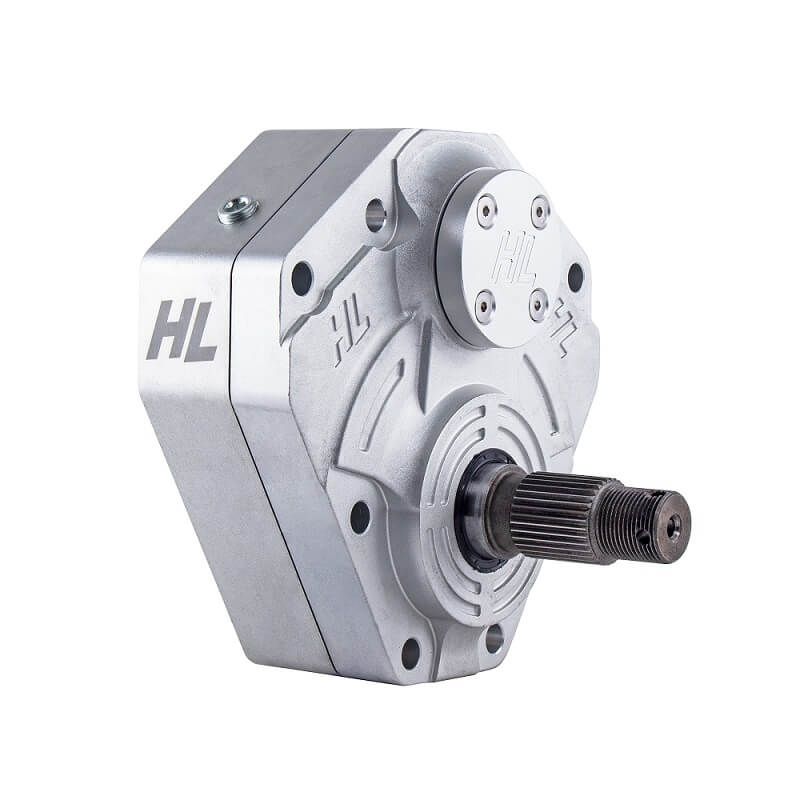

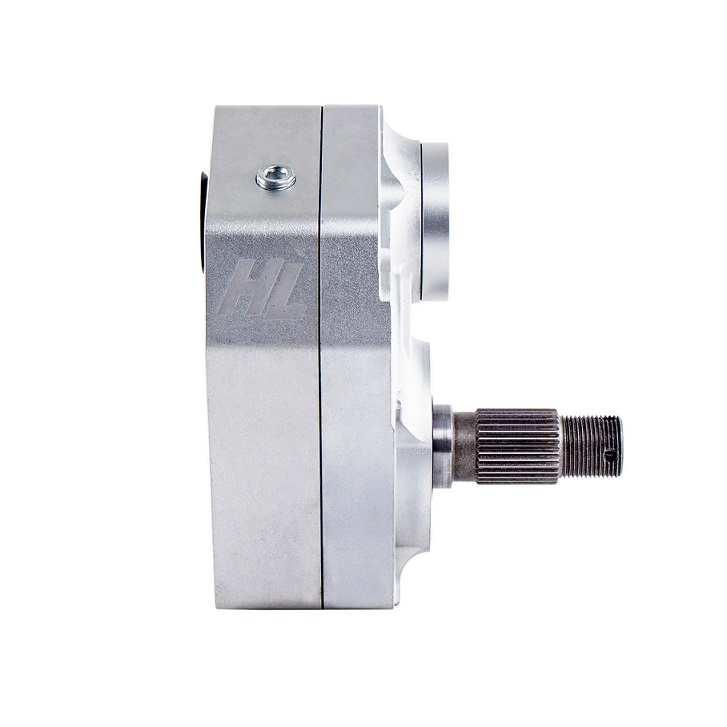

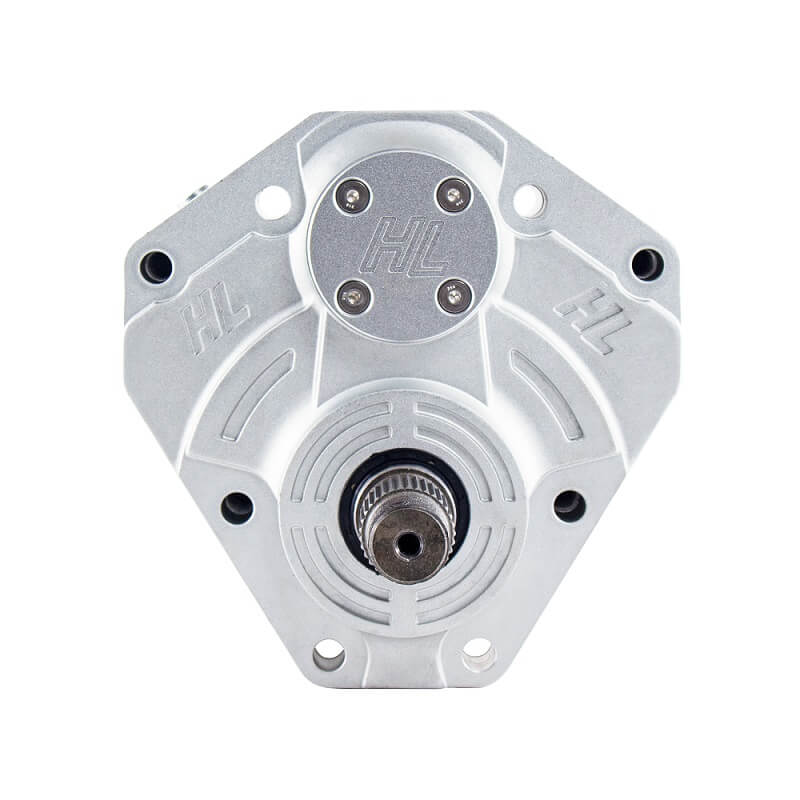

Gear Box:
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Extremely robust and give you more worry-free miles
- Offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket and Seal:
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Creep resistant plus oil and coolant resistant

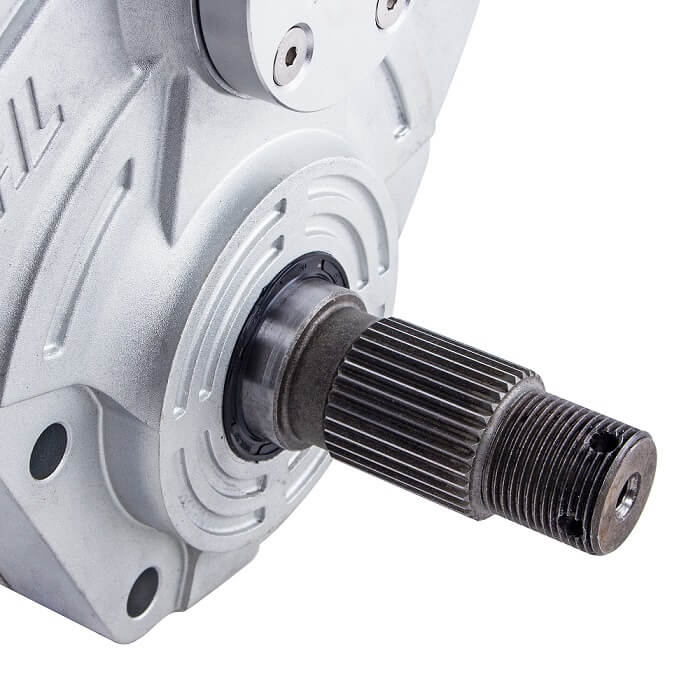

- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

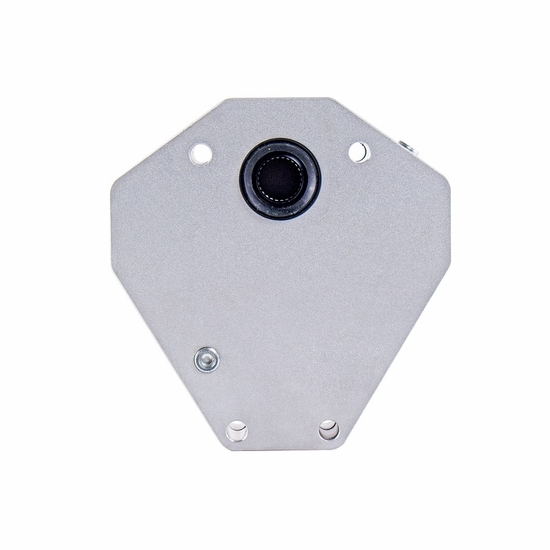

Backing Plate:
- Strongest backing plates on the market
- 5/16” steel plate with bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with most control arms that are built to factory hub specifications
Rotor:
- Precision ground stainless steel rotors
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling

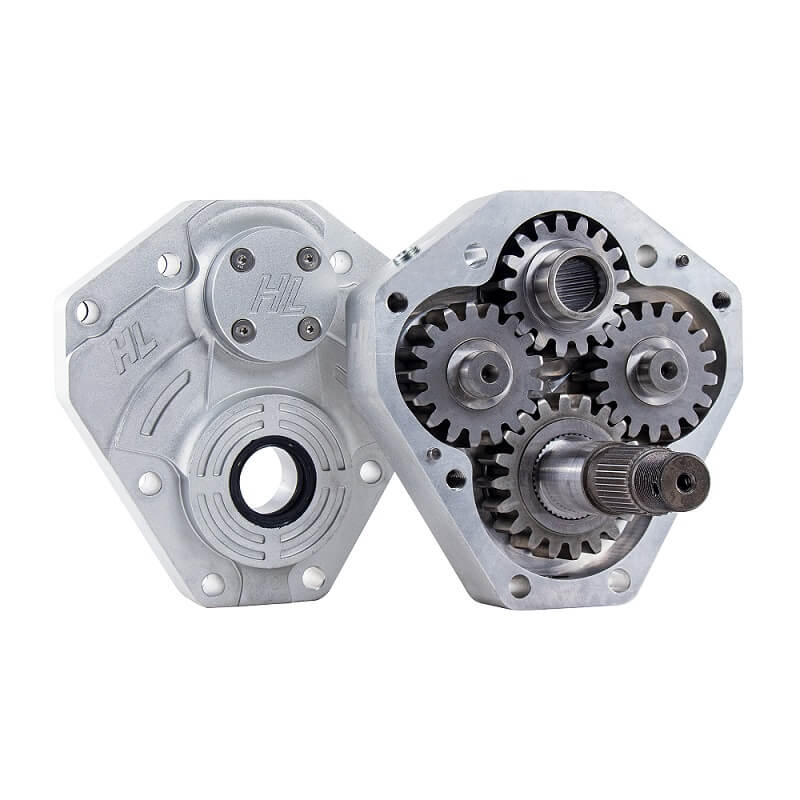

Gear:
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance

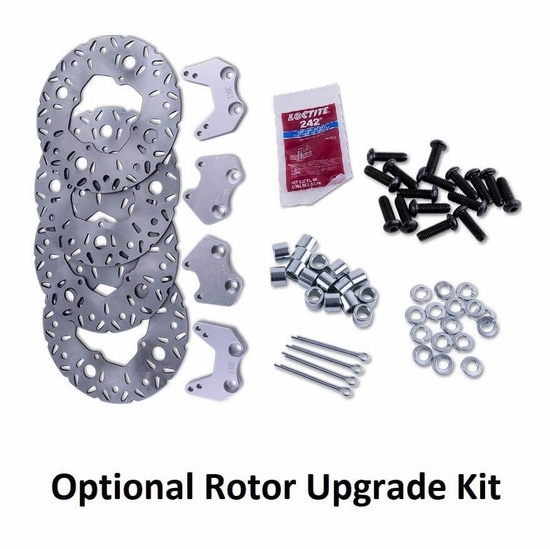

Optional Rotor Upgrade Kit:
- Requires 18" or larger wheels
- 18" wheels cannot exceed 4.5" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Gives an additional 30% of leverage at the rotor
- Improves braking performance
- Gives more holding power at the wheel
- All components are designed for bolt-on replacement without modification
- (4) 13" precision ground stainless steel rotors
- (4) CNC precision machined caliper mounting brackets
- All mounting hardware and instructions included
Videos
Important Info
- Ships UPS ground in multiple boxes.
- Requires 14 inch or larger wheels.
- 14 inch factory wheels require 1 inch wheel spacers.
- 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.
