Coleman Outfitter 500 ProPoly Snow Plow

NOTE: Must have a winch to use plow system.


Applicability: Coleman Outfitter 500 and Outfitter 700


It is creeping up on the winter season, and you have two choices. You can dread the backbreaking shovel work, or you can invest in an aftermarket accessory that will do the work for you. Side By Side Stuff has a wide variety of Outfitter 700 snow plows that can get the job done. One that really stands out is the KFI Straight Pro-Poly Blade Snow Plow by Open Trail.

This bad boy is no joke, putting its competition to shame with its intense construction and over-the-top design. The SxS plow blade consists of shot-blasted and powder-coated grade 50 steel for ultimate durability and long-lasting performance. Its dual curvature pushes snow farther than others in its class! One great blade feature is the fact that it has a trip system that will move the blade when it hits stationary objects. The Outfitter 700 snow plow system comes complete with the UTV blade, a push tube, and a plow mount. Your rig was made for this blade!


Plow Blade Specifications:

• 3/16” grade 50 steel rib and frame construction
• Shot blasted and powder coated black steel frame
• Flexible heavy duty black poly (UHMW) face
• 2-Sided 3/16” grade 50 steel attached with grade 8 bolts
• Includes plow markers
• Replaceable blade face
• Includes snow flap
• Dual curvature face for supreme snow moving
• 21” vertical blade face height with an approximate 27” height with snow flap
• Heavy duty 1/2” thick adjustable skids
• Weighs just as much as the steel blades

Push Tube Specifications:

• 100% U.S.A. made
• Front mount design with 30"+ of lift height
• Heavy duty 1-1/2" 11 gauge steel tubing
• Heavy duty 1-1/4" thick 1-1-/2" diameter grade 50 pivot bushings
• 6" diameter zinc plated rotator bushing
• Easy pull pin blade angle adjustment
• Multi-position plow lift bracket
• 6 five degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 degrees
• Fully adjustable blade skids with bolt-on brackets
• Metal bead blasted before they are powder coated
• Powder coated black
• Complete installation instructions and hardware included
• 2 year KFI warranty

Plow Mount Specifications:

• 100% U.S.A. made
• Front mount system
• Plate constructed from 3/16" grade 50 steel
• All pin tabs are constructed from 1/4" thick grade 50 steel
• All plow tabs are tapered to help reduce hang ups while trail riding
• Bead blasted before they are powder coated
• Powder coated black
• Complete installation instructions and mounting hardware included
• 2 year KFI warranty

Optional Push Tube Extension Features:

• Constructed of heavy duty 3/16” grade 50 steel
• Shot blasted before powder coating
• Powder coated black
• All hardware included
• Positions the blade further out from of your machine, giving you room to run tracks on your side by side while plowing, keeping your tracks from interfering with the snow plow operation.

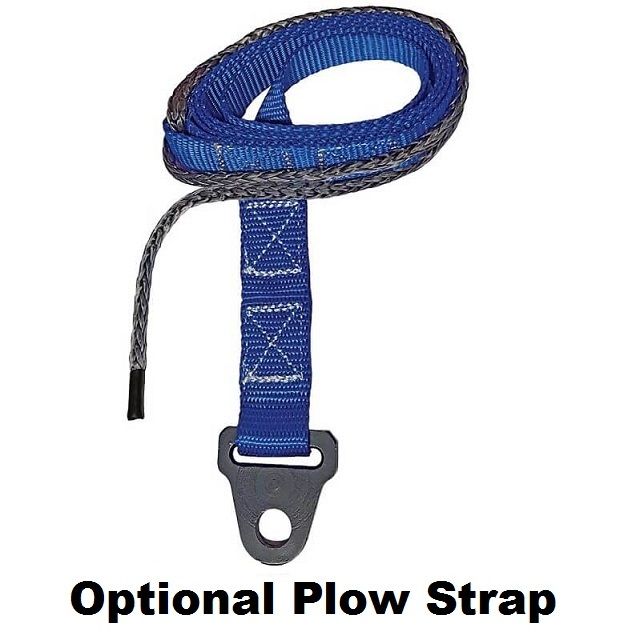

Optional Plow Strap Features:

• For use with standard or wide winches
• Recommended to be used with roller fairlead
• Replaces a steel/synthetic winch line during plow season
• 64 inches of overall length
• Comes with 1" wide heavy duty strap and 3/16" synthetic attachment line
• Use your existing winch hook
• Multiple spool attachment options
• Maximizes winch pulling capacity
• 2,500 lb. break strength safety feature
• Protects winch from hits and impacts
• Eliminates damage to winch by avoiding cable stacking & binding
• Reduce wear on fairleads
• Designed for plowing
• Prolongs life of cable/synthetic rope

Optional Plow Lever Lift Features:

• Repositions lift attach point to help reduce winch and cable strain from lower mounted winches and bad cable angles
• Fully adjustable for multiple angles and attach points
• Designed to work with KFI UTV Push Tube #105635 ONLY
• Constructed of heavy duty 3/16” grade 50 steel
• Shot blasted before powder coating
• Powder coated tough black
• All hardware included
• Does NOT work with the plow actuator: #105935

Optional Plow Shield:

If you're trying to crack down on snow and dirt overflow, you've come to the right place. All our pro-poly blades come with the option to add a plow shield to your order. Offering three types to choose from, each shield option is manufactured from 3/16", grade 50 steel and powder coated black for the added durability you're always searching for. Pick your shield option today and get to removing that pesky snow from the comfort of your machine!
