Honda Big Red 4S1 Track System

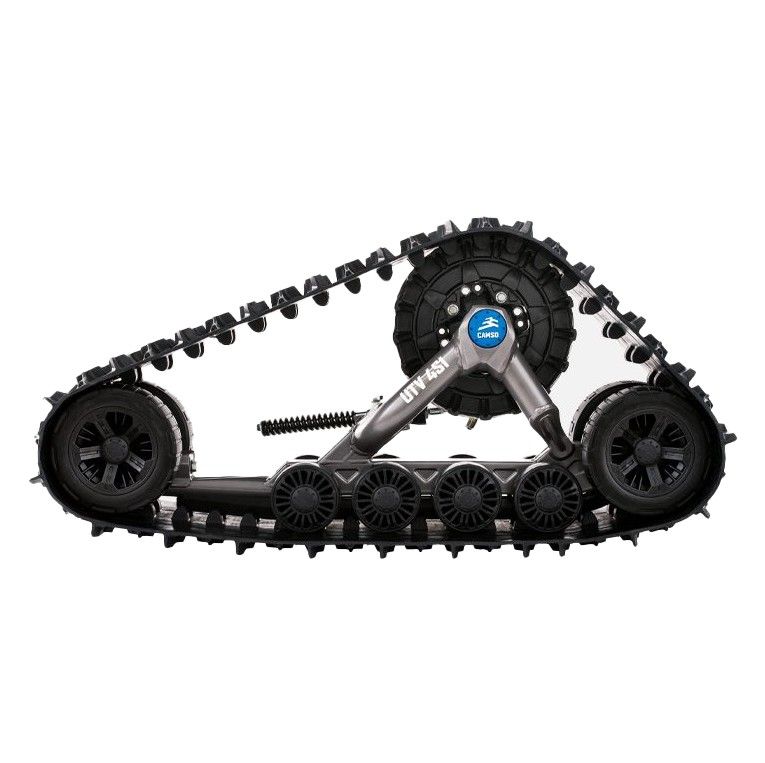

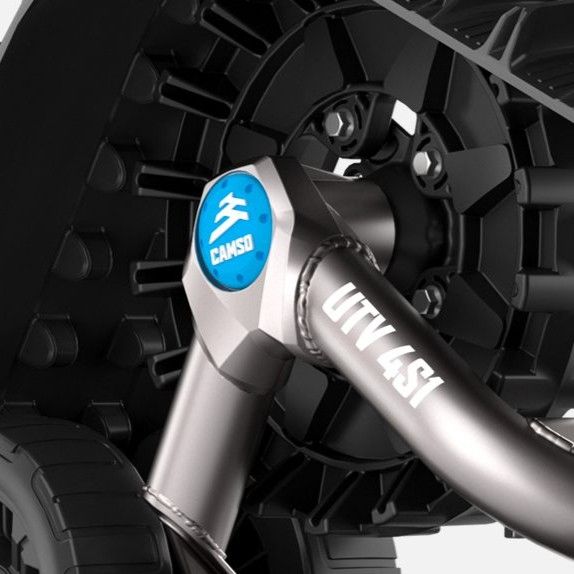

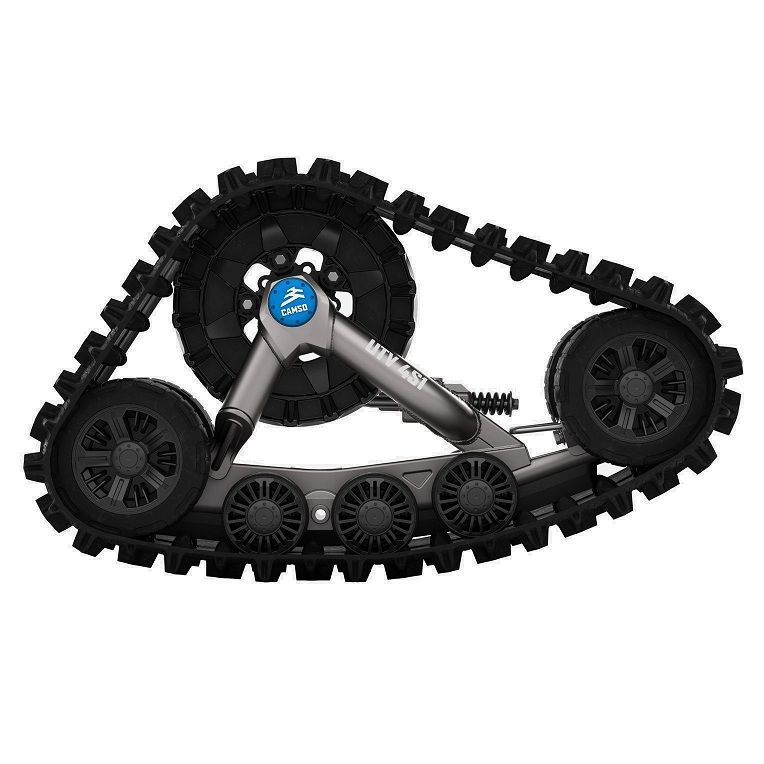

Camso UTV 4S1 Track System - Honda Big Red
Camso UTV 4S1 Track System - Honda Big Red - alt image 0
Camso UTV 4S1 Track System - Honda Big Red - alt image 1

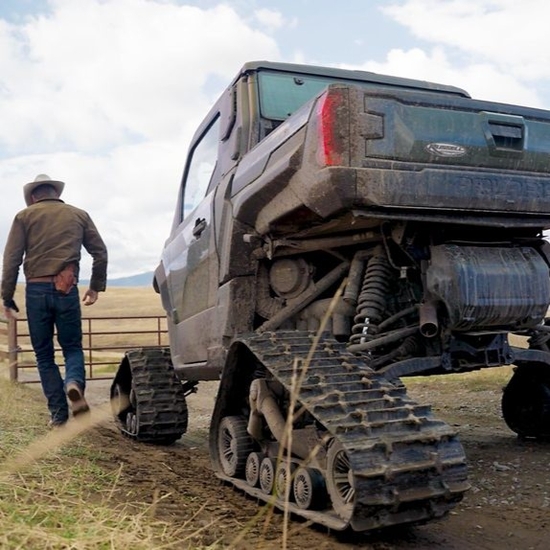

Camso UTV 4S1 Track System - Honda Big Red - alt image 2
Camso UTV 4S1 Track System - Honda Big Red
Camso UTV 4S1 Track System - Honda Big Red
Camso UTV 4S1 Track System - Honda Big Red
Camso UTV 4S1 Track System - Honda Big Red

Honda Big Red 4S1 Track System

Ships within 2-3 business days *SHARED SHIPPING*
Located outside the US? Call us for a shipping quote.
Item #: 82-10094
Mfg Part #: 6522-03-2680
Brand: Camso
$6,599.00
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

Your Honda Big Red is a workhorse and sometimes, it carries huge loads. When the loads get large, your side by side might have some trouble going through the mud, rocks or snow. Get the Camso UTV 4S1 Track System for your Big Red so you can get your work done easier.

With the track system on your Honda, you can simply drive through the mud and over the ruts that will stop your tires in their tracks. The tracks have a wider, longer wheelbase than your regular tires would, letting them find better traction and the ability to handle uneven surfaces with ease. When the ground gets rocky, air filled tires can puncture if your Big Red has a large load on. The track system will prevent that from happening and allow you to simply drive over the sharp rocks.

With it's low center of gravity and larger ground contact, the fear of being top heavy is reduced immensely. Optimized to utilize the available horsepower and torque of your machine, you can be assured that the track system won't slow your machine down too much. The brackets and mounting kits have a robust design that's built to absorb the impact of every bump or jolt, preventing damage to your UTV. Check out some of the track features below to see if the UTV 4S1 Camso Track System is right for your side by side.
  • Fitment
  • Features
  • Videos
  • Important Info
  • Reviews
  • Contact an Expert

Fitment

  • 2012 Honda Big Red 700 -
  • 2011 Honda Big Red 700 -
  • 2010 Honda Big Red 700 -
  • 2009 Honda Big Red 700 -

Features

  • Ground coverage: Approximately 2520 sq. in.
  • Average ground clearance: Increased by 5 in vs tires
  • Climb 20 degree hills
  • Tested in deep snow
  • Haul up to 1000 lb of supplies
  • Tow your 2500 lb shack at speed up to 25 km/h across ice and snow
  • Foam tires with adjusted shape on idler wheels cushions the ride
  • Rubber mounted shafts on tandem stabilizer and wheels absorbs shocks for a more stable ride
  • Flex-Track design offers smoother rides than a flat track
  • Large contact patch eliminates rebounding and improves vehicle lateral stability when sidehilling
  • 1.125-inch lug height enhances traction and control by reducing track ratio
  • Solid steel frame sheds snow, mud and debris
  • High density tires adjusted shape reduces friction and wear
  • Wheel seal design reduces wear and prevents water absorption
  • Triple hub bearing design oil bath lubrication and stainless sleeves increase lifespan and reduce maintenance
  • Adapted sprocket size optimizes gear ratio for more efficient power transfer
  • Front mounted tracks with Flex-Track technology with slight inward curve offers more stable handling
  • System design optimizes steering stability to reduce effort
  • 2 year limited warranty that covers manufacturing defects related to materials and workmanship

Technical Specs:
  • Drive type: Internal drive
  • Sprocket: 15 to 18 teeth
  • Frame: Carbon steel
  • Redesigned mild steel anti-rotation single rate spring and progressive damper
  • Quick connect steering limiter design
  • Weight: Front - 103 lbs; Rear - 120 lbs
  • Oiled 3-bearing with forged steel multi-bolt (4-5) pattern hub
  • 5.2 in double-bearing mid-roller wheels (1.97 in width)
  • 9.49 in double-bearing flat-free tires
  • Bladder type wheel cap and face seal
  • Rubber Track Design: Front - Flex; Rear - Flat
  • Track length: Front - 98.5 in; Rear - 116.7 in
  • Track lug height: 1.125 in
  • Track width: Front - 12.5 in; Rear - 14 in

Overall Dimensions:
  • System length: F: 42.5 in; R: 52 in
  • Offset length: F: 26.5 in; R: 35 in
  • System width: F: 12.5 in; R: 14 in
  • Offset width: 7.25 in
  • Ground clearance: F: 16 3/8 in; R: 16 1/2 in
  • System height: F: 25 in; R: 24.7 in


Videos

Important Info

  • Shared Shipping Program: You pay You pay $450.00 shipping/handling and Side By Side Stuff will pay the rest!
  • These track systems can only be shipped to a business / commercial address. It will not ship to a residential address.
  • This product is only offered to buyers in the U.S.
  • Minor modification and light interference are possible on any model.
  • These tracks require a permanent vehicle modification.
  • Designed to work with factory suspension.

 View Installation Instructions

Customer Reviews

Product Reviews

stars   Awesome tracks,
Posted By: - verified customer
28 people found this review helpful

Great on the farm when heavy snows and mud make checking fences difficult. Floats on most everything.
