Five-Piece Hydraulic System by Impact Implements

Ships in 2-3 business days *FREE SHIPPING*
Item #: 70-10131
Brand: Impact Implements
$1,369.99
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

There are UTVs built for trail riding, and then there are workhorses designed for serious tasks. If you're looking to maximize efficiency on the farm, ranch, or job site, the Impact Implements Five-Piece Hydraulic System is the perfect addition to your side-by-side or ATV. This heavy-duty hydraulic kit provides effortless lifting and lowering of various attachments, allowing you to tackle grading, leveling, plowing, and more with ease. At Side By Side Stuff, we understand the importance of reliable UTV farm attachments, which is why we offer high-quality products that bring power and precision to your off-road workload.

Built for tough jobs and all-season use, the Impact Implements Five-Piece Hydraulic System features a robust pump, cylinder, hoses, and controls, delivering smooth and responsive operation. Whether you're adjusting a blade, disc plow, or landscape rake, this system takes the strain off manual labor, saving you time and effort. With easy installation and universal compatibility with most Impact Implements tools, this must-have UTV upgrade transforms your rig into a versatile, high-performance machine. Get yours today at Side By Side Stuff, where we bring you the best UTV accessories to help you work smarter, not harder!

Fitment

  • Universal

Features

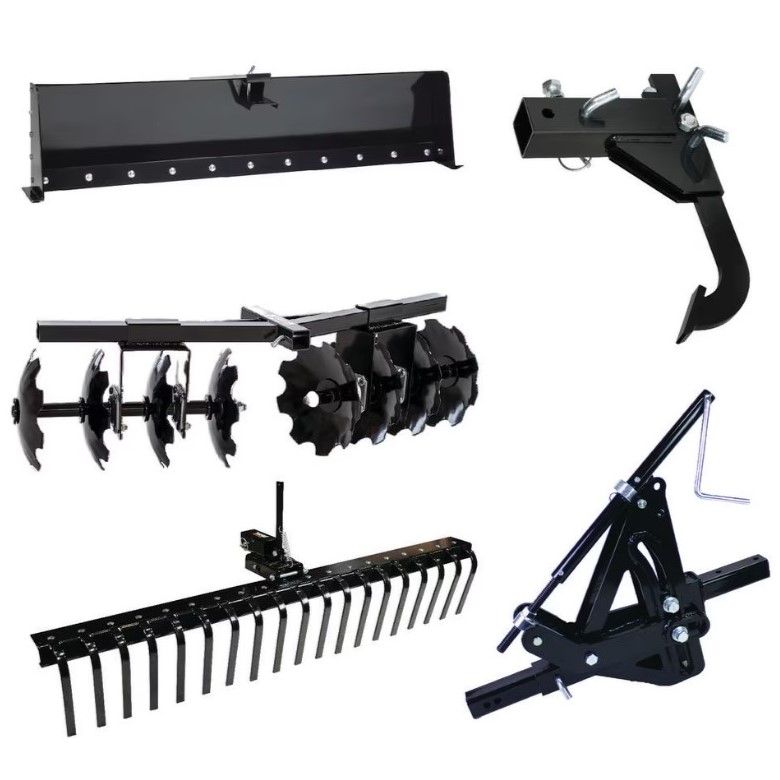

Kit Contains:
  • One-Point Hydraulic Lift System
  • 3-Position Blade with Box Ends
  • Landscape Rake with Latch
  • Disc Plow / Harrow
  • Middle Buster

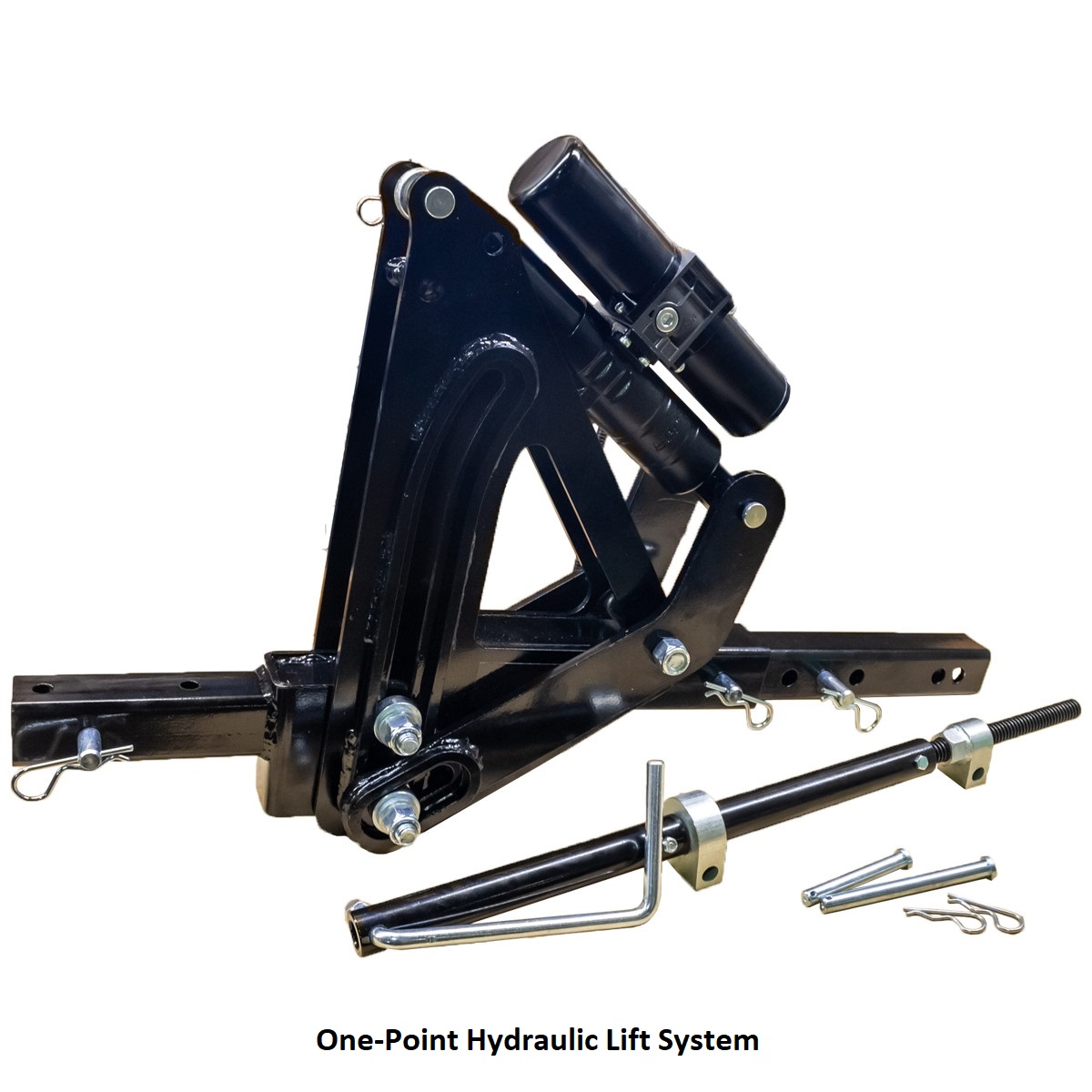

One-Point Hydraulic Lift System:
  • Heavy duty steel construction
  • Approximately 1,100lbs of pushing force and 800lbs of pulling force
  • Hydraulic lift for 10 inches of adjustments
  • Wired through the onboard electrical system and operates with an up/down control switch
  • Amp draw of pump 5A-30A, depending on load
  • Single hitch pin (included) attachment for quick and easy accessory changes
  • Weight: 52 lbs

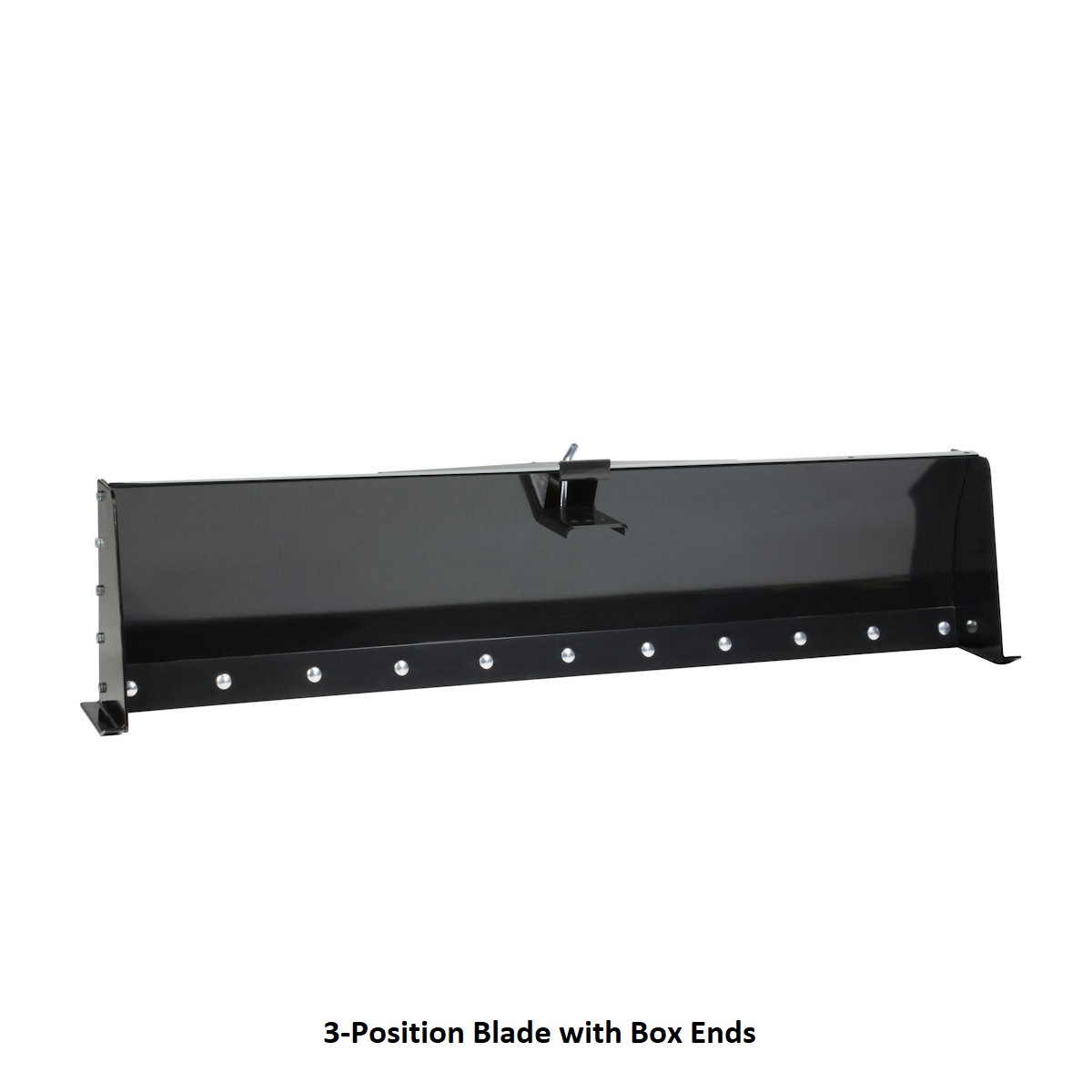

3-Position Blade with Box Ends:
  • Ideal for grading driveways, clearing brush, leveling dirt or working on other back filling projects
  • 52 inch x 12 inch blade
  • Three (3) position blade that can angle 12 degrees to the left or right
  • Reversible and replaceable cutting edge
  • Easy one pin mounting
  • Includes two (2) boxed ends with dimensions of 6.5 inches x 12 inches
  • Weight: 72 lbs

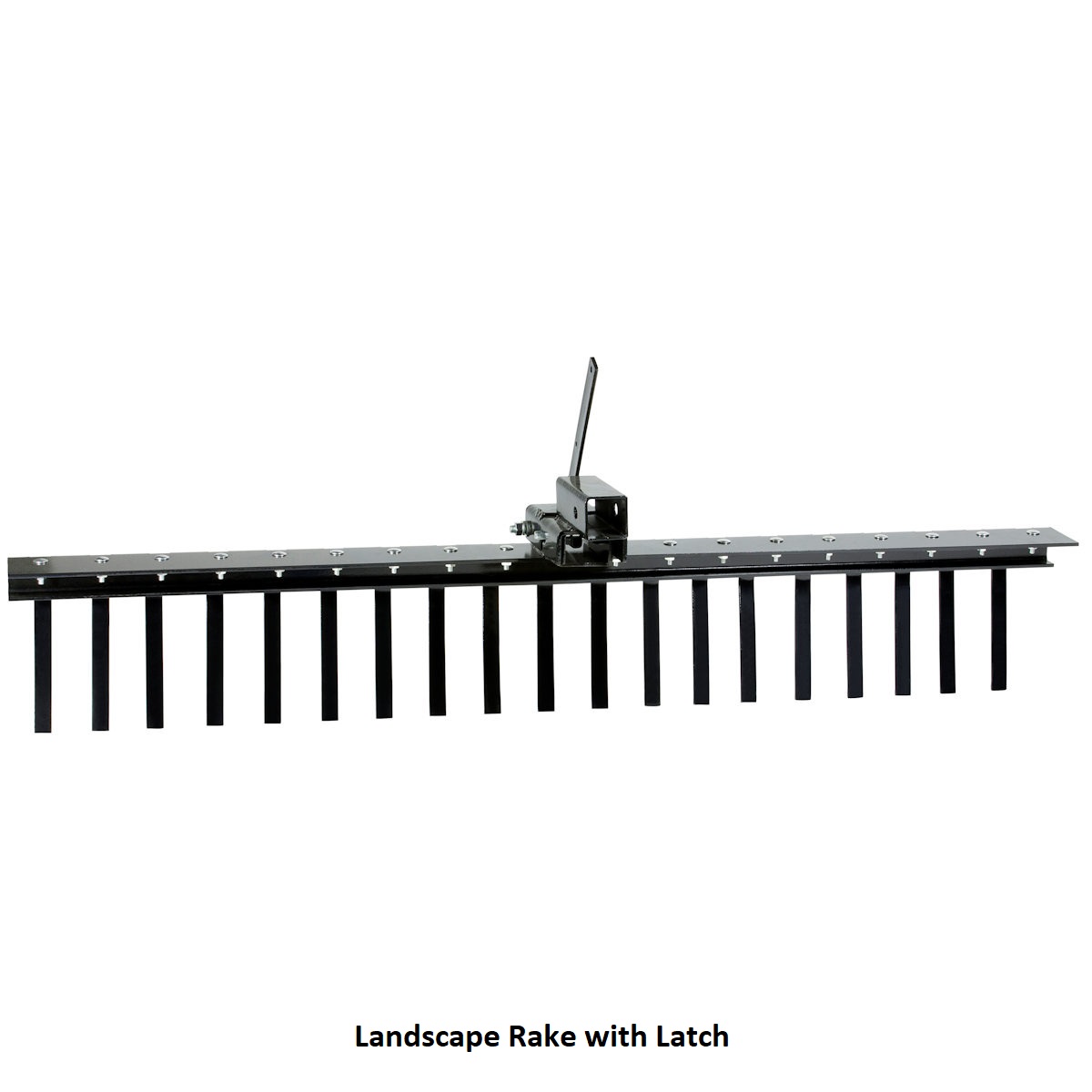

Landscape Rake with Latch:
  • Use it to clear brush, rake woodland trails, prepare soil for food plots, knock down unwanted gopher mounds, rake horse arenas, thatch lawns, and more
  • Nineteen (19) replaceable spring steel rake tines
  • Tines are 1 inch in width and 10 inches tall
  • "Quick Pull" release latch allows rake to swing back for easy clean out of debris from tines
  • Easy one pin mounting
  • Dimensions: 62 inches W x 10.75 inches H x 7.75 inches D
  • Cutting path: 60 inches W
  • Weight: 65 lbs

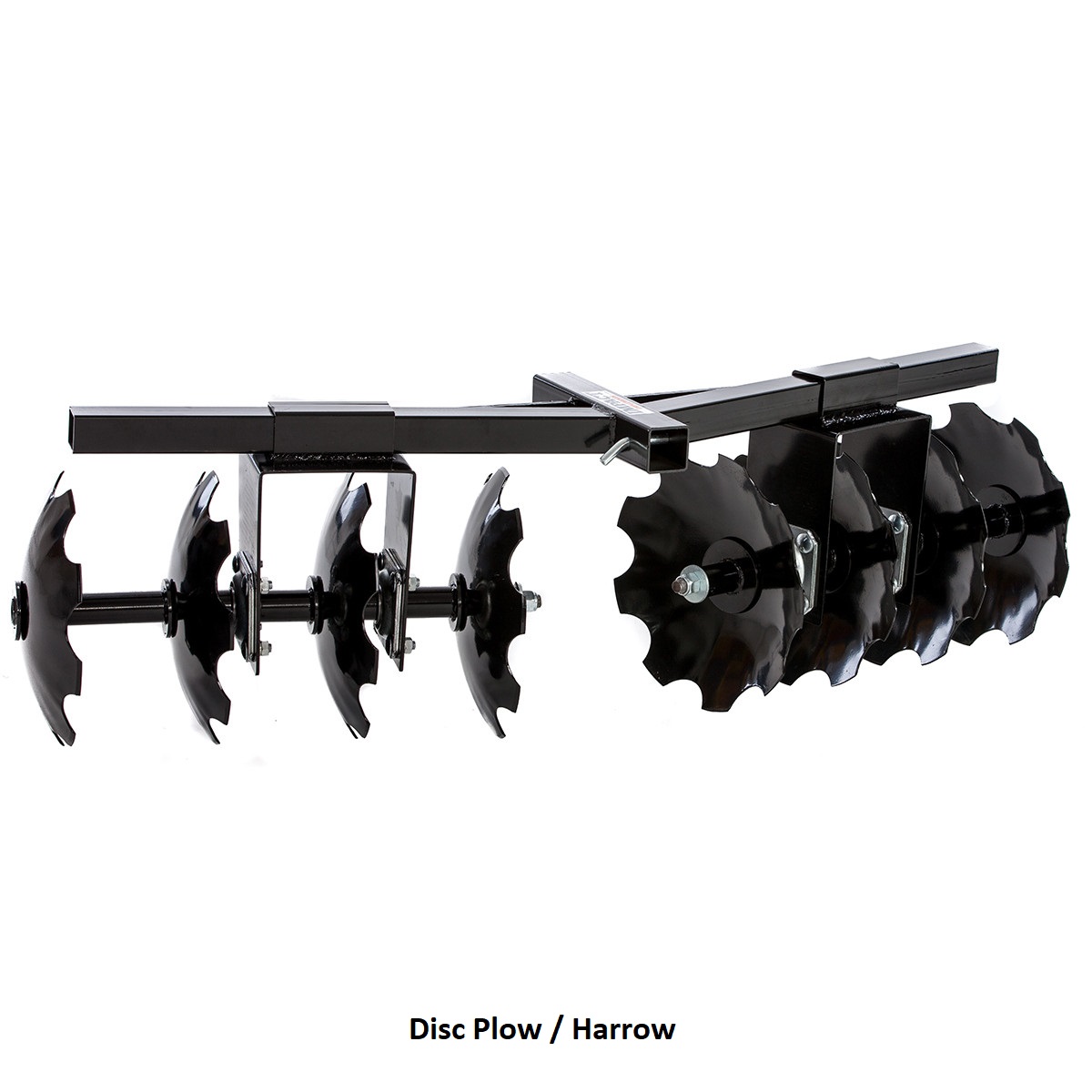

Disc Plow / Harrow:
  • Repeatedly slices the ground and loosens dirt, making it perfect for chopping up unwanted weeds or crop remainders
  • Eight (8), 12 inch notched, hardened steel, cutter disc blades
  • Two (2), sets of four discs provide 54 inches of cutting width
  • Features stable axle with two heavy duty roller bearings per axle
  • 15 degree blade angle of attack for efficient cutting and soil preparation
  • Integrated weight tray
  • Easy one pin mounting
  • Dimensions: 55 inches W x 15 inches H x 54 inches D
  • Weight: 120 lbs

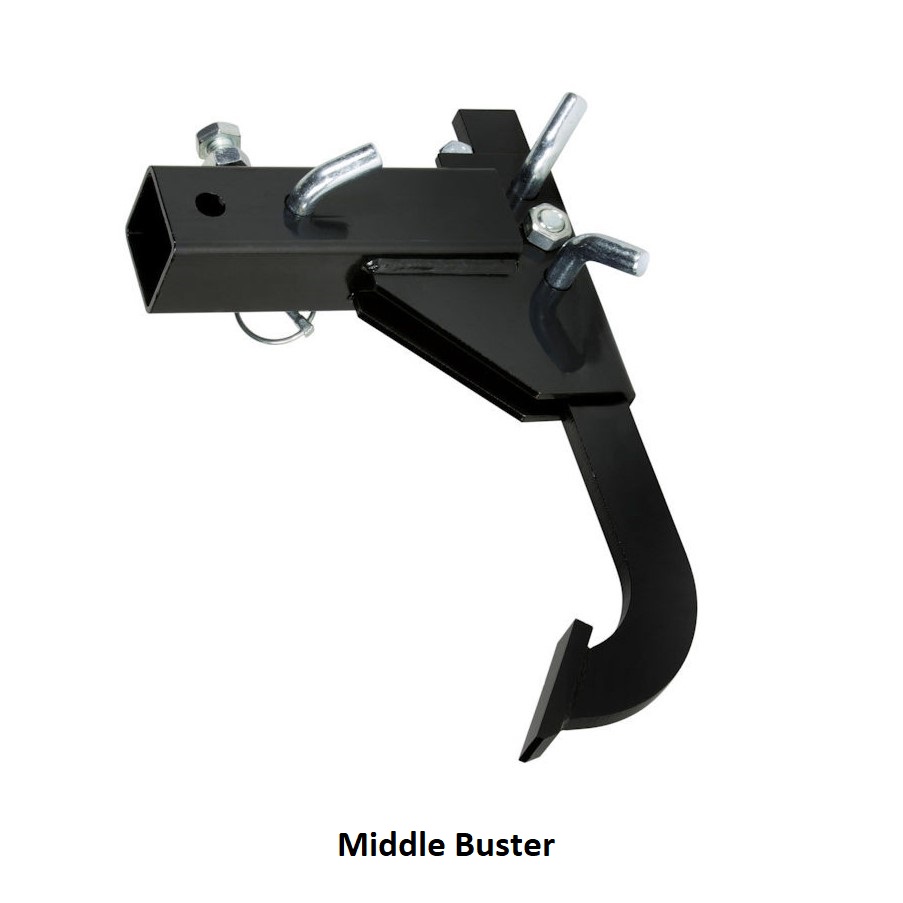

Middle Buster:
  • Perfect for potato plowing, laying off rows, opening furrows, digging trenches for water lines, and more
  • Rigid drop shank for stable operation
  • Tine is 16 inches wide x 5.5 inches high
  • Tine edge is 3 inches L x by 1 inch W x 3/8 inch D
  • Easy one pin mounting
  • Dimensions: 16 inches W x 9.75 H
  • Weight: 40 lbs
