Polaris Ranger XP 1000 and 1000 High Lifter 60% Dual Idler 8 Inch Portal Gear Lift
Polaris Ranger XP 1000 and 1000 High Lifter 60% Dual Idler 8 Inch Portal Gear Lift
SSL Secured
Expert Support
Fitment
- 2024 Polaris Ranger XP 1000 Premium
- 2024 Polaris Ranger XP 1000 NorthStar Premium
- 2024 Polaris Ranger XP 1000 Crew Texas
- 2024 Polaris Ranger Crew XP 1000 Premium
- 2024 Polaris Ranger Crew XP 1000 NorthStar Premium
- 2024 Polaris Ranger Crew 1000 Premium
- 2024 Polaris Ranger 1000 EPS
- 2024 Polaris Ranger 1000 Base
- 2023 Polaris Ranger XP 1000 Premium
- 2023 Polaris Ranger XP 1000 Northstar Premium
- 2023 Polaris Ranger Crew XP 1000 Premium
- 2023 Polaris Ranger Crew XP 1000 Northstar Premium
- 2023 Polaris Ranger Crew 1000 Premium
- 2023 Polaris Ranger 1000 Premium
- 2023 Polaris Ranger 1000 EPS
- 2022 Polaris Ranger XP 1000 Premium
- 2022 Polaris Ranger XP 1000 Northstar Premium
- 2022 Polaris Ranger Crew XP 1000 Premium
- 2022 Polaris Ranger Crew XP 1000 Northstar Premium
- 2022 Polaris Ranger Crew 1000 Premium Winter Prep
- 2022 Polaris Ranger Crew 1000 Premium
- 2022 Polaris Ranger Crew 1000 -
- 2022 Polaris Ranger 1000 Premium Winter Prep
- 2022 Polaris Ranger 1000 Premium
- 2022 Polaris Ranger 1000 EPS
- 2022 Polaris Ranger 1000 -
- 2021 Polaris Ranger XP 1000 Premium
- 2021 Polaris Ranger Crew XP 1000 EPS Premium
- 2021 Polaris Ranger Crew 1000 EPS Premium
- 2021 Polaris Ranger Crew 1000 -
- 2021 Polaris Ranger 1000 EPS Premium
- 2021 Polaris Ranger 1000 EPS
- 2021 Polaris Ranger 1000 -
Features
- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
- More reliable torque transfer
- Brake line extension for easy installation
- 60% gearing extends brake life by needing brakes less often due to greatly improved engine braking

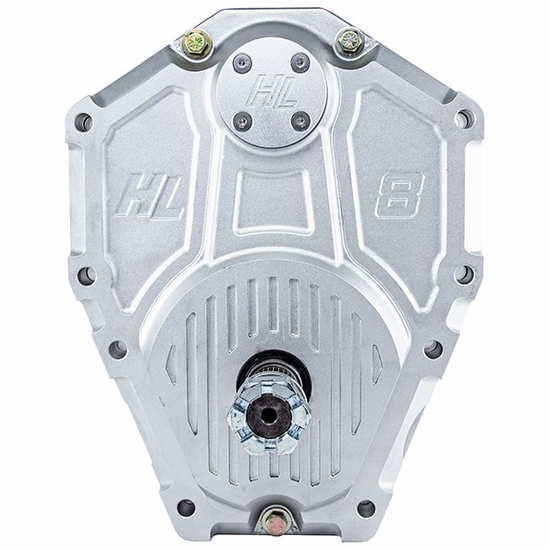

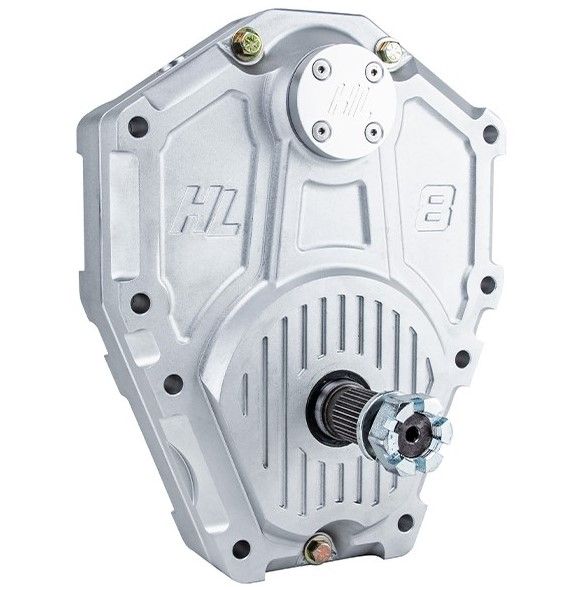

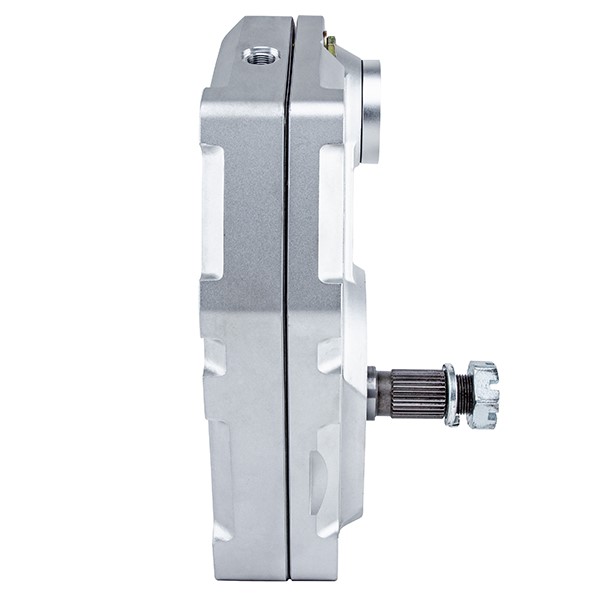

Gear Box:
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Extremely robust and give you more worry-free miles
- Offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket and Seal:
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Creep resistant plus oil and coolant resistant
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

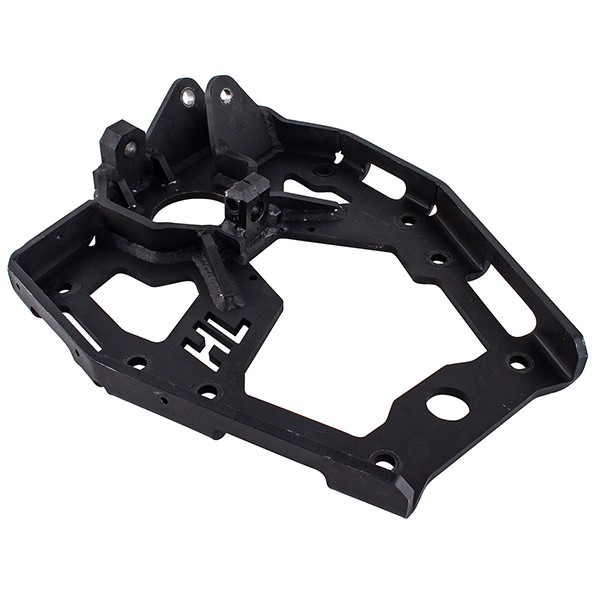

Backing Plate:
- Strongest clocked backing plates on the market
- 5/16 inch steel plate with bent flanges for strength and durability
- Welded gusset brackets and 5 inch offset
- Works with most control arms that are built to factory hub specifications

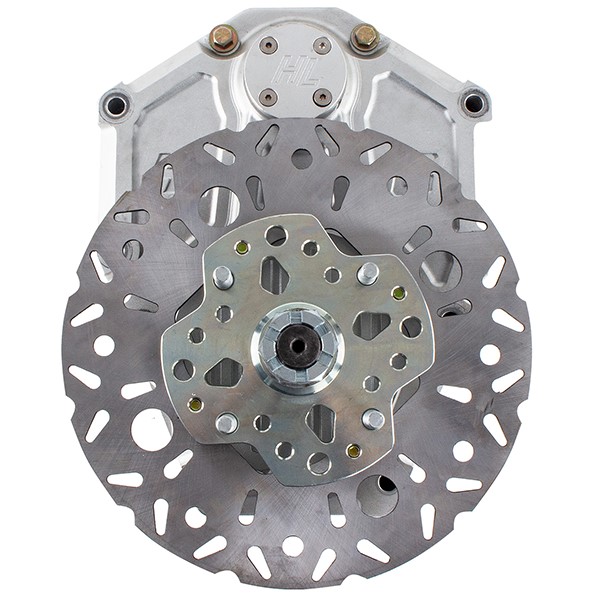

Rotor:
- Precision ground 13 inch stainless steel rotors
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling

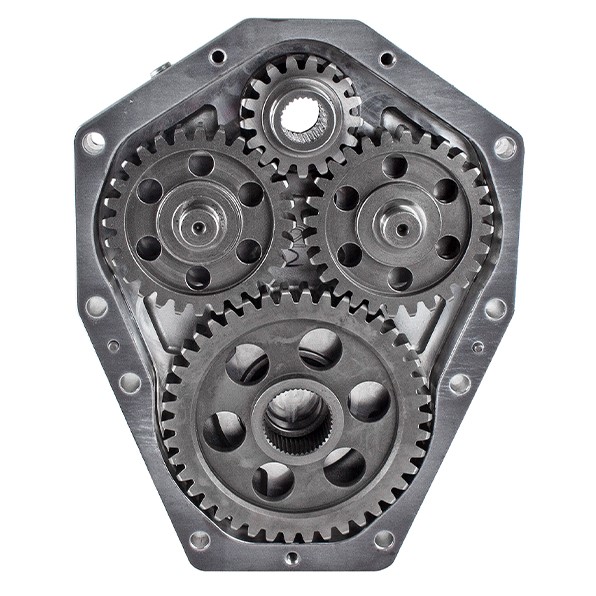

Gear:
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
